Cisco

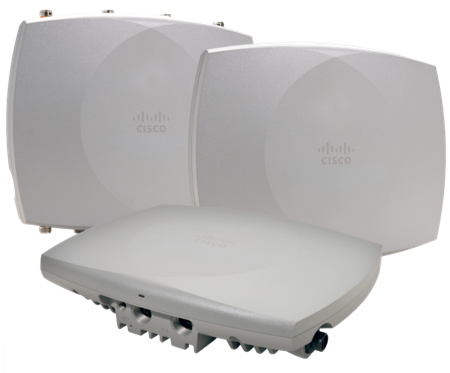

Cisco CW9177D | CW9177 Wi-Fi 7 Tri-Band Outdoor AP, Directional Antenna

SKU:CW9177D

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The CW9177D is a tri-radio, tri-band Wi-Fi 7 (802.11be) outdoor access point from the Cisco Wireless 9177 series, built with internal directional antennas for targeted long-range coverage. It suits stadiums and venue zones, car parks, loading docks, campus walkways, transportation corridors, industrial sites, ports and rail yards, and building-to-building links.

The access point runs 4x4 MIMO with up to 12 spatial streams across the 2.4 GHz, 5 GHz and 6 GHz bands. The directional antenna version is what separates it from the CW9177I with an integrated omni antenna and the CW9177E with external antennas. It has an IP67-rated enclosure, a 10G Multigigabit Ethernet port and an SFP+ port so the uplink type can be chosen at install, an integrated BLE 6.0 radio, integrated GPS/GNSS and a built-in accelerometer. It requires a Cisco Networking Subscription licence, which covers cloud (Meraki) or on-premises management.

It is supported on Cisco IOS XE Release 26.2.1 or 26.1.3 or later, or Meraki MR 32.2.x or later, and can be managed from the Meraki Dashboard or by Catalyst 9800 Series wireless controllers.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Tri-radio, tri-band Wi-Fi 7 with up to 12 spatial streams
- IP67-rated, hardened design for harsh outdoor conditions
- Integrated IoT and scanning radios with Ultra-Reliable Wireless Backhaul capability
- 10G Multigigabit Ethernet and SFP+ port, so the uplink connection type can be chosen at install
- Integrated BLE 6.0 radio for asset tracking, wayfinding and analytics
- Built-in accelerometer to verify how the AP is installed after deployment
- Cisco CleanAir Pro for RF interference management
- Supported on both cloud (Meraki) and on-premises (Catalyst Wireless Controller) platforms

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Wi-Fi standard: Wi-Fi 7 (802.11be)
- Radios: Tri-radio, tri-band (2.4 GHz, 5 GHz, 6 GHz)
- MIMO: 4x4, up to 12 spatial streams
- Antennas: Integrated directional
- Enclosure rating: IP67
- Uplink: 10G Multigigabit Ethernet and SFP+ options
- Bluetooth: Integrated BLE 6.0 radio
- Location: Integrated GPS/GNSS
- Sensors: Built-in accelerometer
- Software: Cisco IOS XE Release 26.2.1 or 26.1.3 or later, or Meraki MR 32.2.x or later
- Management: Meraki Dashboard or Catalyst 9800 Series controllers

FAQs

Q: How does the CW9177D differ from the CW9177I and CW9177E?
A: The CW9177D uses internal directional antennas for targeted coverage. The CW9177I has an integrated omni antenna and the CW9177E uses external antennas.

Q: Can it be managed from the cloud or a controller?
A: Yes. It can be managed from the Meraki Dashboard, or by Catalyst 9800 Series wireless controllers in controller-based deployments.

Q: Does the CW9177D need a licence?
A: Yes. It requires a Cisco Networking Subscription licence. One licence type covers cloud (Meraki), on-premises or hybrid management.

Q: Which software releases does it need?
A: It requires Cisco IOS XE Release 26.2.1 or 26.1.3 or later, or Meraki MR 32.2.x or later.

Q: What uplink options does it offer?
A: It has a 10G Multigigabit Ethernet port and an SFP+ port, so the uplink connection type can be chosen at install.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
