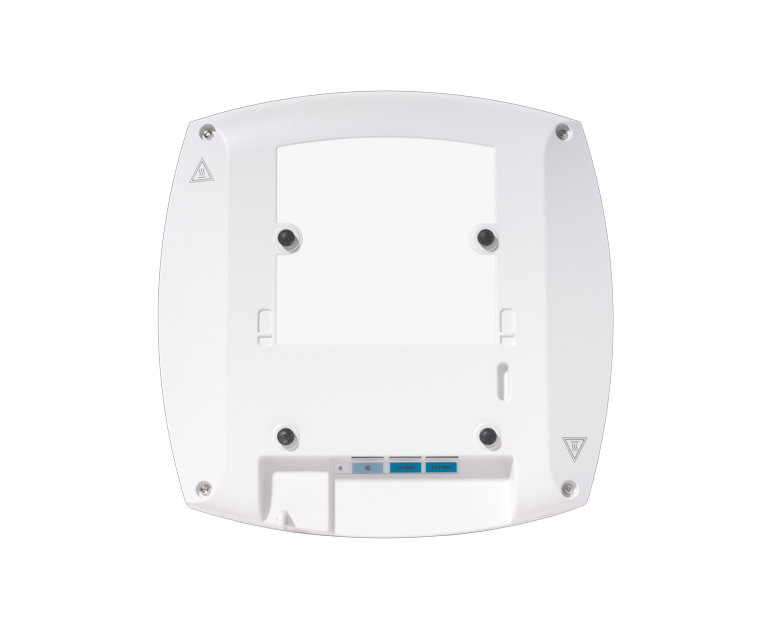

  • White rectangular wall-mounted Meraki CW9171I-RTG Cisco wireless 9171 Wi-Fi 7 tri-band access point with central slot
1 2

Cisco

Cisco CW9171I-RTG | Cisco Wireless 9171 Wi-Fi 7 Tri-Band Access Point, 2x2:2, 6.1 Gbps

CW9171I-RTG

Stock Status: Enquire

$1,172.54 inc. GST
$1,065.95 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Cisco CW9171I is a compact Wi-Fi 7 indoor access point delivering next-generation wireless connectivity for small to medium-sized businesses, branch offices, hospitality, and education environments. With dual-radio tri-band operation across 2.4 GHz and configurable 5 GHz or 6 GHz bands, it provides aggregate frame rates up to 6120 Mbps with low to moderate device density. This global-use access point offers flexible cloud or on-premises management through Cisco Dashboard or Catalyst 9800 WLC, featuring integrated BLE and IoT radios for smart spaces, advanced security with WPA3, and energy-efficient operation drawing just 30W.

Features

Wi-Fi 7 (802.11be) with 4096-QAM modulation for maximum throughput and efficiency
- Multi-Link Operation (MLO) for ultra-low latency and improved reliability in real-time applications
- Dual-radio tri-band operation: Fixed 2.4 GHz + configurable 5 GHz or 6 GHz (up to 160 MHz channels)
- CleanAir Pro technology for advanced spectrum intelligence and interference mitigation across 2.4/5/6 GHz
- Dedicated tri-band scanning radio for 24/7 WIDS/WIPS, RF analytics, and wireless threat containment
- Intelligent Capture for deep diagnostic insights, latency troubleshooting, and performance analysis
- Integrated BLE and IoT radio for Bluetooth scanning, beaconing, and asset tracking via Cisco Spaces
- Band steering to optimize client placement on 5 GHz or 6 GHz bands for improved performance
- Channel puncturing for efficient spectrum utilization in congested RF environments
- WPA3 security including Beacon Protection, SAE-PK, and 192-bit encryption modes
- Apple FastLane for optimized iOS device performance and application prioritization
- Layer 7 application visibility and control with integrated DPI engine for QoS policy enforcement
- Transmit beamforming and enhanced receive sensitivity for extended range and client density support
- AP Power Save mode to reduce power consumption during off-hours while maintaining network readiness
- Global use SKU with automatic regulatory domain discovery, eliminating region-specific ordering
- Flexible management mode conversion between Meraki cloud and Catalyst on-premises via simple workflow
- Cisco Trust Anchor Technologies for supply chain integrity, hardware authentication, and secure boot
- USB 2.0 port for optional GPS module (CW-ACC-GPS1) and accessory support (4.5W power budget)
- 2.5 Gbps multigigabit Ethernet with MACsec encryption for secure, high-speed wired backhaul
- Compact, discreet design for seamless integration in offices, retail, hospitality, and education environments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Wi-Fi Standard: 802.11be (Wi-Fi 7), backward compatible with 802.11a/b/g/n/ac/ax
- Radio Configuration: Dual-radio tri-band, 2x2:2 MIMO (Fixed 2.4 GHz + configurable 5 GHz or 6 GHz)
- Aggregate Data Rate: Up to 6120 Mbps (5764 Mbps on 6 GHz or 5 GHz + 344 Mbps on 2.4 GHz)
- Ethernet Port: 1x 2.5 Gbps RJ45 (10/100/1000/2500 Mbps), supporting VXLAN, CDP, LLDP, MACsec
- Power: 802.3af/at/bt (PoE/PoE+/PoE++/UPOE), DC power jack (optional MA-PWR-50WAC), 30W typical draw
- Antennas: Internal omnidirectional antennas for 2.4 GHz, 5 GHz, and 6 GHz
- Dedicated Radios: Tri-band scanning/security radio (CleanAir Pro) for 2.4/5/6 GHz; integrated BLE and IoT radio
- Memory and Storage: 4 GB RAM, 16 GB Flash
- Mounting: Ceiling or wall mount, compatible with standard Cisco AP brackets
- Management: Cisco Meraki Dashboard (cloud), Cisco Catalyst 9800 WLC, Cisco Catalyst Center
- Security Features: WPA3, WPA3 Beacon Protection, WPA3 SAE-PK, WPA3 192-bit, GCMP, Secure Boot, 802.1X
- Advanced Features: CleanAir Pro, Intelligent Capture, Channel Puncturing, Multi-Link Operation (MLO), 4K-QAM, OFDMA
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Operating Humidity: 0% to 95% non-condensing
- Ports: 1x USB-A (USB 2.0, 4.5W output), 1x RJ45 Console port
- Regulatory: Global use, auto-discovers management mode and regulatory domain

FAQs

Q: What management platforms does the CW9171I support?
A: The CW9171I is a global-use access point that supports both Cisco Meraki cloud management via the Meraki Dashboard and on-premises management via Cisco Catalyst 9800 Wireless LAN Controller (requires IOS XE 17.18.2 or later) or Cisco Catalyst Center. It can be converted between management modes through a simple workflow, offering complete deployment flexibility.

Q: What is the difference between the CW9171I and CW9172I?
A: The CW9171I features dual-radio operation (2x2:2 MIMO) with aggregate speeds up to 6120 Mbps, ideal for low to moderate-density environments. The CW9172I offers tri-radio operation (2x2:2 MIMO across three bands) with aggregate speeds up to 9000 Mbps and includes a fourth dedicated scanning radio, making it suitable for higher-density deployments. Both support Wi-Fi 7 and flexible cloud or on-premises management.

Q: Does the CW9171I require a Meraki license to operate?
A: Yes, when managed via Meraki Dashboard, the CW9171I requires a Meraki MR Enterprise or Advanced license on a per-device, per-year basis. These licenses provide cloud management, monitoring, firmware updates, and technical support. For on-premises management with Catalyst 9800 WLC, a Cisco Networking Subscription (Essentials or Advantage) is required instead.

Q: What cable type is required for 2.5 Gbps operation?
A: The CW9171I requires Cat5e, Cat6, or Cat6A cabling to achieve full 2.5 Gbps Ethernet speeds. While Cat5e is technically sufficient, Cat6 or Cat6A is recommended for optimal performance and to avoid routing near high-interference sources. The access point requires 802.3at (PoE+) or higher for full feature enablement.

Q: What IoT capabilities does the CW9171I offer?
A: The CW9171I includes an integrated Bluetooth Low Energy (BLE) and IoT radio that supports asset tracking, location services, and smart space applications. When paired with Cisco Spaces and IoT Services, it can operate in scan mode to detect BLE devices and receive telemetry data, or in transmit mode to broadcast iBeacon, Eddystone URL, and Eddystone UID profiles for proximity-based services.
