Meraki

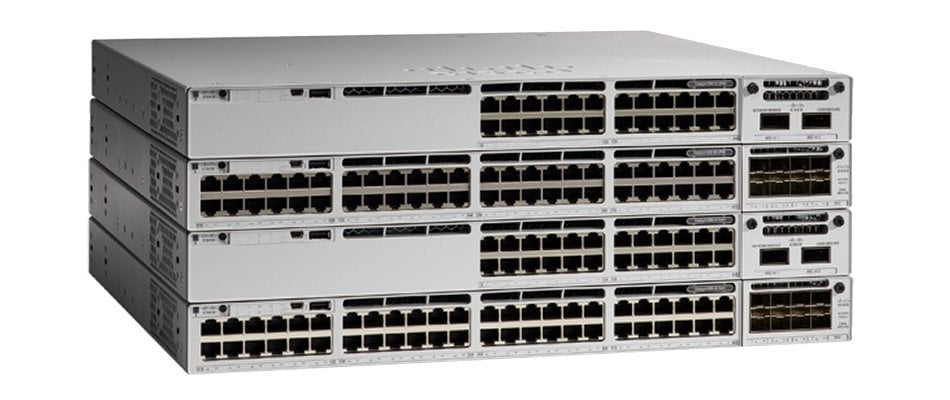

Meraki C9300X-12Y-M | Catalyst 9300X-M 12x 25G SFP28 Switch, 715W AC

C9300X-12Y-M

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki Catalyst 9300X-M C9300X-12Y-M is a cloud-managed, stackable Layer 3 fibre switch with twelve 1/10/25G SFP28 ports and no PoE. A modular uplink slot supports 10G/25G or 40G/100G uplink modules, and the switch is supplied with a 715W AC power supply. It is built for campus and aggregation deployments that need high-speed fibre access managed from the Meraki dashboard.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Managed through the Meraki dashboard with zero-touch provisioning
- Layer 3 routing: static routing, OSPFv2, multicast (PIM-ASM), VRRP warm spare, DHCP server/relay
- Physically stack up to 8 switches; virtual stacking for unified management
- StackPower in a ring topology supporting up to 4 switches
- Adaptive Policy using over-the-wire tags for scalable security segmentation
- Remote packet capture, topology discovery, cable testing and alerts
- Automatic firmware upgrades with scheduling control
- Fast stack convergence and hot-swappable power supplies, fans and uplink modules

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

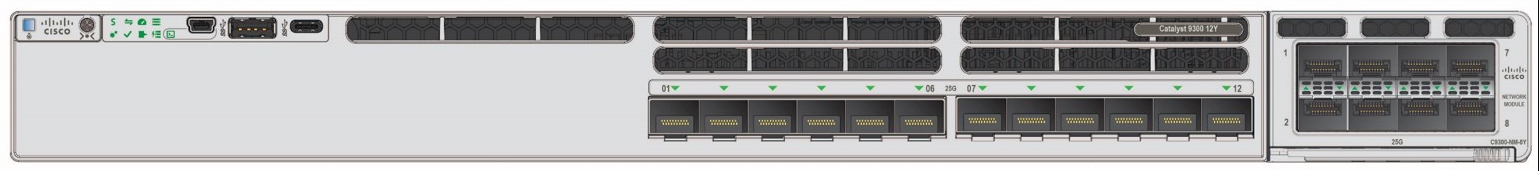

- 12 x 1/10/25G SFP28 fibre ports
- Modular uplink slot (SFP+, SFP28, QSFP+, QSFP28 options; 10G/25G or 40G/100G)
- No PoE/UPoE support
- Switching capacity: 1000 Gbps
- Forwarding rate: 744.04 Mpps
- Stacking bandwidth: 1 Tbps (backward compatible with 480G)
- 2 x dedicated hardware stack ports (1T/480G)
- 1 x dedicated management interface
- Default power supply: PWR-C1-715WAC-P-M (715W AC), hot-swappable, dual PSU supported
- Power load idle/max: 97.1 / 157.3 W
- Dimensions: 1.73" x 17.5" x 19.2" (4.4 x 44.5 x 48.77 cm), 1U rack mount
- Weight: 15.0 lb (6.80 kg) with default PSU
- 3 x hot-swap fans
- Operating temperature: -5°C to 45°C; humidity 5 to 90%
- MTBF at 25°C: 265,650 hours

FAQs

Q: Does the C9300X-12Y-M support PoE?
A: No. This model has no PoE or UPoE capability, so it is intended for fibre aggregation and high-speed uplink roles rather than powering end devices.

Q: What uplink options does the modular slot support?
A: The modular uplink slot accepts SFP+, SFP28, QSFP+ and QSFP28 options, providing 10G/25G or 40G/100G uplinks depending on the module fitted.

Q: How is this switch managed?
A: It is Meraki cloud-managed through the Meraki dashboard, with zero-touch provisioning, automatic firmware upgrades and remote packet capture.

Q: Can this switch be stacked?
A: Yes. It has 2 dedicated hardware stack ports with 1 Tbps stacking bandwidth, backward compatible with 480G, and supports physical stacks of up to 8 switches.

Q: What power supply is included and can it be made redundant?
A: It ships with a 715W AC power supply (PWR-C1-715WAC-P-M). The supply is hot-swappable and the chassis supports dual power supplies.
