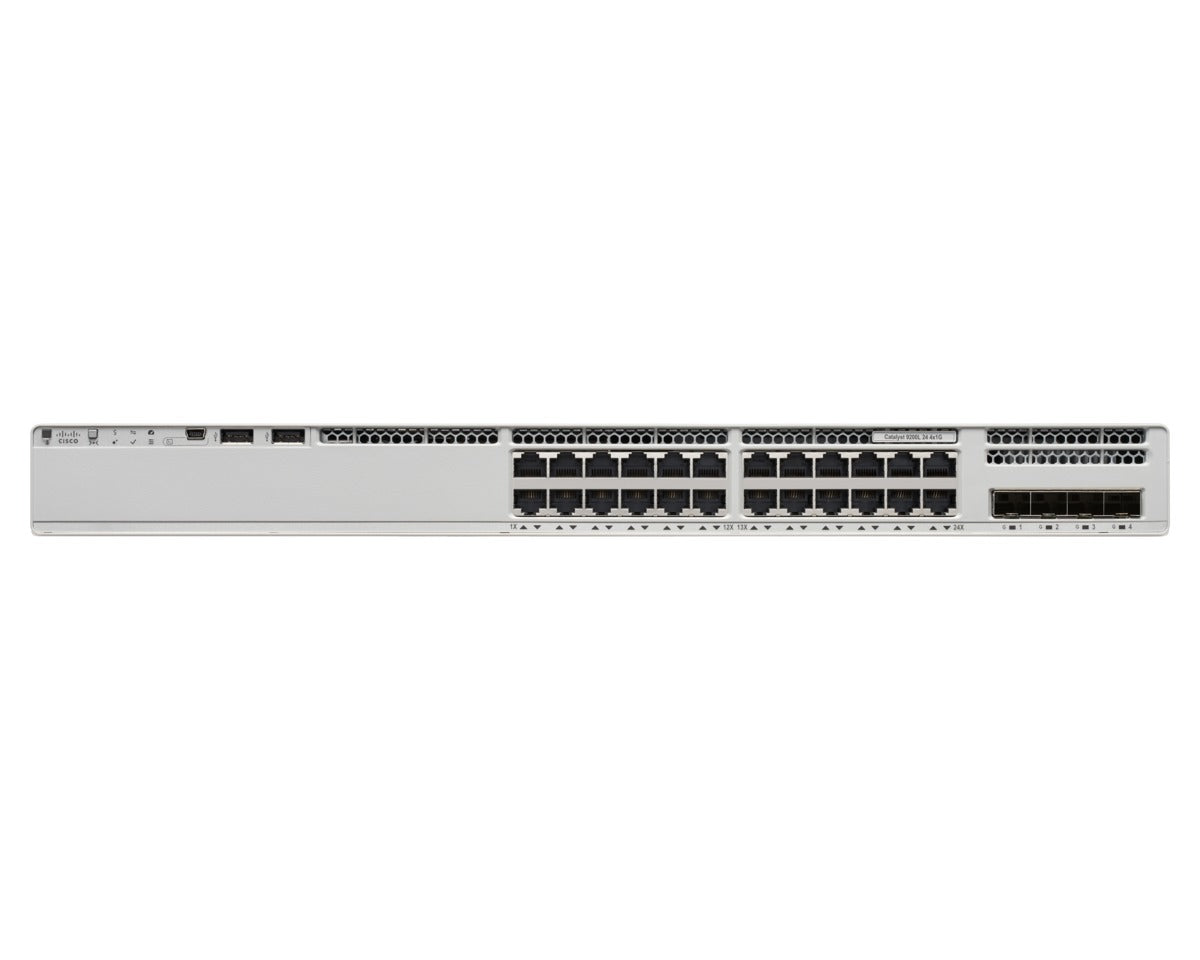

• Meraki C9200L-24P-4G-M silver switch with 24x1G PoE+ ports and 4x1G SFP uplinks
1 1

Meraki

Meraki C9200L-24P-4G-M | Catalyst 9200L-M 24-Port Gigabit PoE+ Switch, 370W, 4x 1G SFP

C9200L-24P-4G-M

7 in stock

$3,630.00 AUD
$3,630.00 AUD
$3,630.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst 9200L-24P-4G-M is a cloud-managed fixed access switch that delivers enterprise-class performance with out-of-the-box Meraki dashboard management powered by IOS XE. Designed for distributed sites and small to mid-sized deployments, this switch features 24 Gigabit PoE+ ports with 370W budget, four fixed 1G SFP uplinks, and optional StackWise-80 stacking for up to 8 switches. Ideal for powering IP phones, wireless access points, and security cameras while providing day-zero cloud simplicity and operational flexibility.

Features

Meraki Cloud Management: Out-of-the-box cloud management via Meraki dashboard with IOS XE integration
- Cloud CLI Terminal: Read-only CLI access for troubleshooting and viewing running configurations
- Zero-Touch Provisioning: Automated deployment with plug-and-play capabilities
- Adaptive Policy: Over-the-wire tag-based segmentation using Security Groups (requires Advanced license)
- Layer 2 and Layer 3 Switching: Full routing protocol support including RIP, EIGRP Stub, OSPF
- MACsec Encryption: AES-128 MACsec for secure Layer 2 communications
- Advanced Security: IEEE 802.1X authentication, Cisco TrustSec, secure boot, hardware root-of-trust
- Redundant Power: Dual power supply slots with hot-swappable capability
- Energy Efficient Ethernet (EEE): IEEE 802.3az for reduced power consumption
- Per-Port PoE Sensing: Intelligent power allocation based on actual device consumption
- UADP 2.0 Mini ASIC: Programmable pipeline with template-based allocation for L2/L3 forwarding, ACLs, and QoS
- Blue Beacon LEDs: Front and back LEDs for easy physical identification
- MST Support: Single instance of Multiple Spanning Tree (MST) out of the box
- VLAN Support: Up to 512 VLANs per standalone switch or switch stack
- Network Telemetry: Centralized monitoring and diagnostics via Meraki dashboard

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

24x 10/100/1000BASE-T Gigabit Ethernet ports with full PoE+ (802.3at)
- PoE Budget: 370W default (expandable to 740W with optional secondary power supply)
- Per-port PoE Power: Up to 30W per port
- 4x 1G SFP fixed uplink ports
- Switching Capacity: 128 Gbps
- Forwarding Rate: 95.2 Mpps
- DRAM: 8GB, Flash: 16GB
- Stacking: Optional StackWise-80 (80 Gbps bandwidth, up to 8 switches per stack)
- Packet Buffer: 6 MB
- Management: Meraki Dashboard (cloud-managed), CLI access via Cloud CLI terminal
- Power Supply: PWR-C5-600WAC (included), dual power supply slots for redundancy
- Cooling: 2 fixed redundant fans
- Dimensions: 44.5 x 44.2 x 4.4 cm (1RU)
- Operating Temperature: 0°C to 45°C
- Cloud Management: Requires Meraki license (Enterprise or Advanced tier)
- Certifications: FCC Part 15 Class A, EN 55032 Class A, ENERGY STAR certified

FAQs

Q: What is the difference between the C9200L-24P-4G-M and the C9200L-24P-4G-E?
A: The C9200L-24P-4G-M is the Meraki cloud-managed variant that requires Meraki licensing and is managed exclusively through the Meraki dashboard. The C9200L-24P-4G-E is the standard Catalyst variant with Network Essentials license, managed via Cisco DNA Center or CLI. Both share the same hardware platform but differ in their management approach and licensing model.

Q: Does this switch include stacking ports by default?
A: No, the C9200L series does not include stacking ports by default. To enable stacking, you must purchase the C9200L-STAK-KIT-M for each switch in the stack. This kit includes two stacking adapters and a 50cm Type 4 stacking cable. The switch supports StackWise-80 technology with 80 Gbps stacking bandwidth for up to 8 switches.

Q: What type of Meraki license is required to operate this switch?
A: This switch requires a Catalyst 9200L-M license from Meraki, available in Enterprise or Advanced tiers. Licenses are sold in 1, 3, or 5-year terms on a per-device, per-year basis. The switch includes a 30-day grace period for onboarding to the Meraki Dashboard. Advanced licensing enables additional features like Adaptive Policy and enhanced security capabilities.

Q: Can I stack C9200L-M models with standard C9200 or C9200L switches?
A: C9200L-M models can only be stacked with other C9200L-M models that have the same license tier (Enterprise or Advanced in co-term organizations). Mixed stacking with modular C9200 switches or other Catalyst series is not supported. You can stack up to 8 C9200L-M switches using the optional stacking kit.

Q: Can this switch be converted from Meraki cloud management to DNA Center management?
A: Yes, the C9200L-M provides operational flexibility and can be migrated from cloud-managed mode to on-premises management with Catalyst Center or CLI at any point during the product lifecycle. However, once migrated to cloud management, C9200L models cannot be reverted to cloud firmware; they can only be switched back to DNA management mode.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
