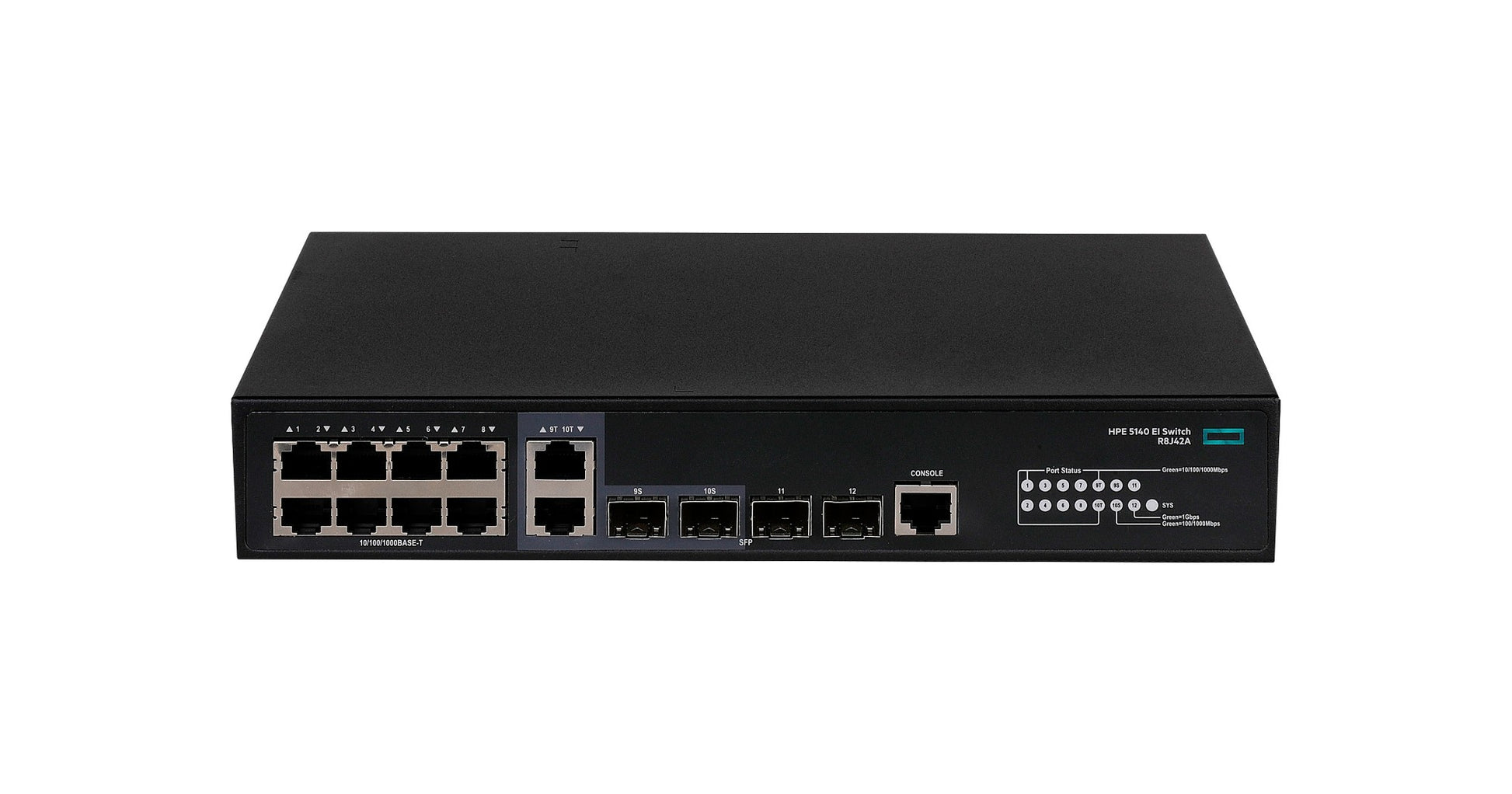

HPE R8J42A | 5140 EI 8-Port Gigabit L3 Switch, 2x SFP/RJ45, Non-PoE
SKU:R8J42A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The HPE 5140 EI is a compact 1U Gigabit Ethernet access switch for small Layer 3 access and branch deployments that need fibre or copper uplinks alongside static routing. It runs the Comware operating system and supports IRF for device aggregation, so several units can be managed and linked together as one logical device.
This SKU provides 8 autosensing 10/100/1000 RJ-45 ports plus a 4-port combo uplink group, made up of 2 SFP ports and 2 GT (RJ-45) ports, with one pair usable at a time. It is a non-PoE model. Switching and routing capacity is 24 Gbps with 18 Mpps throughput, backed by a 16,384-entry MAC address table, a 1024-entry routing table, 512 MB SDRAM and 256 MB flash. Layer 3 features cover static routing and RIP. Power draw is 15 W maximum and 8 W at idle from a 100-240 VAC input. No separate licence is needed, and embedded SmartMC management is included.
The SFP ports accept HPE 100M and 1G modules including JD102B, JD120B, JD118B, JD119B, JD089B, JD098B, JD099B and JD103A. A 19-inch rack-mount kit, R8M91A, is available separately. The switch can be managed through IMC, SmartMC, the command line, a web browser or SNMP.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- IRF technology for plug-and-play device aggregation and link aggregation across multiple devices
- Embedded SmartMC management at no additional cost
- OpenFlow 1.3 support for SDN
- Energy-saving design that puts idle ports into energy-saving mode and powers down unused ports
- Auto-MDIX on all 10/100/1000 ports
- Classifier-based QoS with SP, WRR and SP+WRR queuing, plus CAR traffic policing
- Smart link with 100 ms failover, plus MSTP, RSTP, PVST+ and RPVST+ spanning tree
- IEEE 802.1ad QinQ and selective QinQ, plus Ethernet OAM (IEEE 802.3ah)
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 8 x RJ-45 10/100/1000 autosensing
- Combo uplinks: 4-port combo unit, 2 x SFP 1GbE or 2 x GT (RJ-45), one pair usable at a time
- Console port: 1 x RJ-45 serial
- PoE: None (non-PoE model)
- Layer 3: Static routing and RIP
- Switching/routing capacity: 24 Gbps
- Throughput: 18 Mpps
- Latency: less than 5 µs at 1000 Mb, less than 3 µs at 10 Gbps
- MAC address table: 16,384 entries
- Routing table: 1024 entries
- Memory: 512 MB SDRAM, 256 MB flash
- Power input: 100-240 VAC, 50/60 Hz
- Power consumption: 15 W maximum, 8 W idle
- Heat dissipation: 27.3/51.2 BTU/hr maximum
- Dimensions (W x D x H): 26.6 x 16 x 4.36 cm, 1U
- Weight: 1.5 kg
- Operating temperature: -5 to 50 C
- Operating humidity: 10% to 90%, non-condensing
- Storage temperature: -40 to 70 C
- Mounting: 19-inch EIA rack or equipment cabinet
- Certification: IPv6 Ready
FAQs
Q: Does this switch need a separate licence?
A: No. No separate licence is needed. Embedded SmartMC management is included at no additional cost, and the Comware image is the EI feature set.
Q: Does it support PoE?
A: No. This is a non-PoE model with no PoE budget. It draws 15 W maximum and 8 W at idle from a 100-240 VAC supply.
Q: Can I use all four uplink ports at once?
A: No. The four uplink ports form a combo unit of 2 SFP and 2 GT ports, and only one pair can be used at a time.
Q: Which SFP modules work with the SFP ports?
A: HPE modules listed for these ports include JD102B (100M FX), JD120B (100M LX), JD100A and JD101A (100M BX10), JD118B (1G SX), JD119B (1G LX), JD089B (1G RJ45-T), JD098B and JD099B (1G BX10) and JD103A (1G LH100).
Q: How do I rack-mount the switch?
A: The 1U switch fits a 19-inch rack or equipment cabinet using the HPE 5140 Rack Mount Kit R8M91A, which is a separate part.
Q: Does it support Layer 3 routing?
A: Yes. It supports static routing and RIP, with a 1024-entry routing table, and can be aggregated with other units using IRF.
