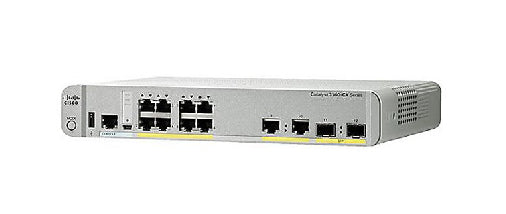

• Cisco WS-C3560CX-8PT-S Catalyst 3560CX switch, 8x1G PoE+ ports
1 1

Cisco

Cisco WS-C3560CX-8PT-S | Catalyst 3560-CX 8-Port PoE+ Switch, 2x 1G, IP Base

WS-C3560CX-8PT-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3560-CX is a fanless, silent compact Layer 3 managed switch with eight Gigabit PoE+ ports. It suits space-constrained deployments outside the wiring closet, such as open workspaces, conference rooms and under-desk installs, where it extends IP phones, wireless access points, surveillance cameras, PCs and video endpoints from a single upstream PoE uplink.

This model has no internal AC supply. It is powered through its two 1G copper uplink ports from an upstream PoE, PoE+ or Cisco UPOE device, or from an optional 18-60 VDC auxiliary input, and it passes PoE+ to downstream devices with up to 30 W per port. The available downstream PoE budget depends on how it is powered, from 20 W with two PoE+ uplinks up to 146 W with two Cisco UPOE uplinks plus the auxiliary input. Forwarding bandwidth is 16 Gbps, switching bandwidth is 32 Gbps and the forwarding rate is 14.9 Mpps, backed by 512 MB DRAM and 128 MB flash.

The switch ships with Cisco IOS IP Base, which includes routed access, TrustSec and MACsec. It can be upgraded to IP Services with an RTU licence. Mounting options include wall, under desk, rack and DIN rail using the optional Cisco mounting accessories.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- PoE pass-through: draws Cisco UPOE, PoE+ or PoE from an upstream switch and passes PoE+ to end devices
- Optional auxiliary AC-DC or DC-DC power adapter input
- Perpetual PoE keeps connected devices powered during switch boot
- Fanless, silent design suited to open workspaces
- Flexible mounting: wall, under desk, rack or DIN rail
- Cisco SDA Extended Node support with a Cisco DNA-A licence and a fabric-edge capable upstream switch
- Security features including TrustSec, MACsec, 802.1X, DHCP snooping, Dynamic ARP Inspection and Secure Boot
- Cisco Network Plug-n-Play, Smart Install and Auto Smartports for simplified deployment

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ethernet ports: 8 x 10/100/1000 Gigabit Ethernet PoE+
- Uplinks: 2 x 1G copper (Cisco UPOE powered input)
- Default software: IP Base (IP Services with RTU licence)
- Forwarding bandwidth: 16 Gbps
- Switching bandwidth: 32 Gbps
- Forwarding rate: 14.9 Mpps (64-byte packets)
- Flash memory: 128 MB
- DRAM: 512 MB
- Max VLANs: 1023
- VLAN IDs: 4000
- MTU: up to 9000 bytes
- Jumbo frames: 9198 bytes
- Maximum PoE power per port: 30 W (PoE+)
- Maximum PoE budget: up to 146 W with 2 Cisco UPOE uplinks plus auxiliary input
- DC input voltage: 18-60 VDC
- Power rating: 90 W
- Power consumption at 100% throughput: 22.9 W (single uplink), 24.3 W (dual uplink)
- Dimensions (H x W x D): 4.44 x 26.9 x 17.7 cm
- Weight: 1.58 kg
- Operating temperature: -5 to +45 C
- Storage temperature: -25 to +70 C
- Operating humidity: 5% to 95% non-condensing
- MTBF: 737,740 hours

FAQs

Q: How is this switch powered?
A: It has no internal AC supply. It is powered through its two copper uplink ports from an upstream PoE, PoE+ or Cisco UPOE device, or through the optional 18-60 VDC auxiliary input using an 80W AC-DC or DC-DC adapter. A single PoE uplink alone cannot power it; two PoE uplinks or one PoE+ uplink or better are needed.

Q: How much PoE power can it supply to downstream devices?
A: The downstream budget depends on the powering option. It is 20 W with two PoE+ uplinks, 22 W with one Cisco UPOE uplink, 68 W with two Cisco UPOE uplinks, 54 W with the auxiliary input alone, and up to 146 W with two Cisco UPOE uplinks plus the auxiliary input. Each port delivers up to 30 W.

Q: Which software does it run and can it be upgraded?
A: It ships with Cisco IOS IP Base, which includes routed access, TrustSec and MACsec. It can be upgraded to IP Services, adding OSPF, BGP, EIGRP, PBR, multicast routing and VRF-Lite, with an RTU licence (L-C3560CX-RTU=).

Q: Does this model have SFP uplink ports?
A: No. This model has two 1G copper uplink ports and no SFP cages, so no transceivers are needed.

Q: What mounting accessories work with it?
A: Genuine Cisco options include CMPCT-DIN-MNT= for DIN rail, RCKMNT-19-CMPCT= and RCKMNT-23-CMPCT= for rack mounting, CMPCT-MGNT-TRAY= for magnetic mounting, CMPCT-CBLE-GRD= as a cable guard and PWR-CLP= as a power clip.
