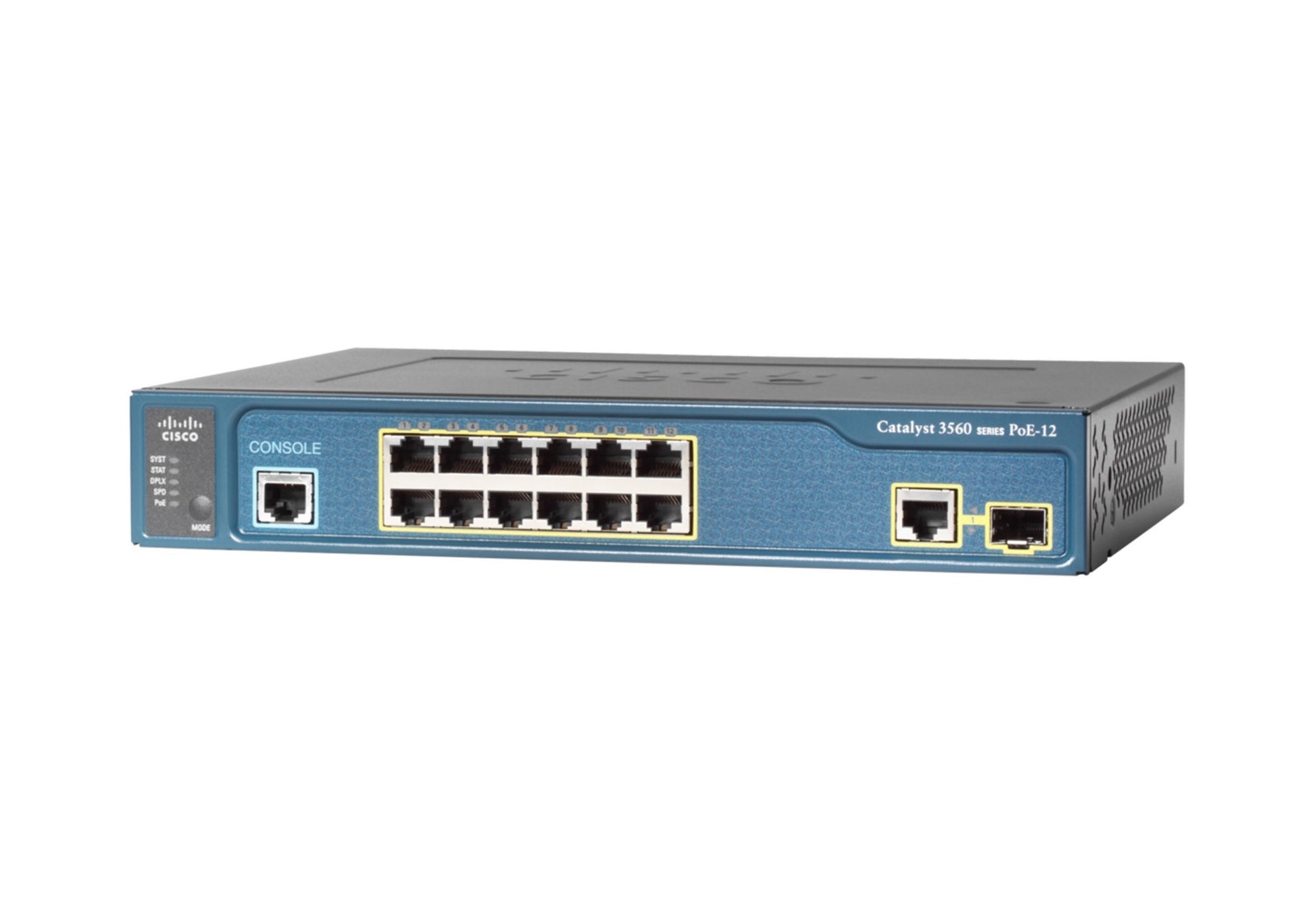

• Cisco WS-C3560CX-12PC-S switch with 12x 1G ports and PoE+
1 1

Cisco

Cisco WS-C3560CX-12PC-S | Catalyst 3560-CX 12-Port PoE+ Switch, 240W, IP Base

WS-C3560CX-12PC-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3560-CX is a fanless, compact managed Layer 3 Gigabit switch built for space-constrained deployments outside the wiring closet. It suits open workspaces, conference rooms and desktops where you need to extend Ethernet and PoE+ to IP phones, wireless access points, surveillance cameras, PCs and video endpoints from a single copper or fibre uplink.

This model provides 12 x 10/100/1000 ports, all PoE+, sharing a 240W PoE budget with up to 30W per port. Uplinks are 2 x 1G RJ45 plus 2 x 1G SFP, and all four can be used at the same time or as downlinks. Forwarding bandwidth is 16 Gbps, switching bandwidth is 32 Gbps and the forwarding rate is 23.8 mpps. It ships with the IP Base feature set, with an upgrade to IP Services available through the Right-To-Use licence.

The SFP ports accept Cisco 100BASE and 1000BASE SFP modules, including SX, LX, ZX, BX and CWDM types. The switch can be wall, under-desk, rack or DIN rail mounted with the matching compact accessories, and is managed through Cisco Prime Infrastructure, Cisco Network Assistant or Cisco DNA Center.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fanless, silent design suited to open workspaces
- Flexible mounting: wall, under desk, rack or DIN rail
- PoE+ with a 240W budget and Perpetual PoE
- Layer 3 IP Base feature set with optional upgrade to IP Services (OSPF, BGP, EIGRP, PBR, multicast routing, VRF-Lite)
- Cisco TrustSec and hardware MACsec (IEEE 802.1AE) on host-facing ports
- Flexible authentication (802.1X, MAC Authentication Bypass, web auth) and 802.1X supplicant with NEAT
- DHCP snooping, Dynamic ARP Inspection, IP Source Guard, IPv6 first-hop security, Private VLAN and Secure Boot
- Network Plug and Play, Smart Install, Auto Smartports and EEM support
- Energy efficiency with IEEE 802.3az EEE and switch hibernate mode

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ethernet ports: 12 x 10/100/1000 Gigabit Ethernet
- PoE output ports: 12 PoE+
- Available PoE power: 240W
- Maximum power per port: 30W (PoE+), 15.4W (PoE)
- Uplinks: 2 x 1G copper plus 2 x 1G SFP
- Default software: IP Base (IP Services with RTU licence)
- Forwarding bandwidth: 16 Gbps
- Switching bandwidth: 32 Gbps
- Forwarding rate (64-byte packets): 23.8 mpps
- Flash memory: 128 MB
- DRAM: 512 MB
- Max VLANs: 1023
- VLAN IDs: 4000
- MTU: up to 9000 bytes
- Jumbo frames: 9198 bytes
- Dimensions (H x W x D): 1.75 x 10.6 x 9.4 in (4.44 x 26.9 x 23.8 cm)
- Weight: 5.1 lb (2.31 kg)
- Operating temperature: -5 to +45 C
- Storage temperature: -25 to +70 C
- Operating and storage relative humidity: 5% to 95% non-condensing
- MTBF: 553,140 hours
- Power consumption at 100% throughput: 26.3W
- Power consumption at 100% throughput with maximum PoE load: 275.2W
- AC input: 100-240 VAC, 3.25-1.5A
- PoE power supply: 300W capacity, 80 Plus Silver certified
- Environmental: RoHS 6

FAQs

Q: Which software feature set does this switch run?
A: It ships with IP Base. An upgrade to IP Services is available through the Right-To-Use licence, L-C3560CX-RTU= (electronic) or C3560CX-RTU= (paper).

Q: How much PoE power does it provide?
A: It provides a 240W PoE+ budget across 12 ports, with up to 30W per port for PoE+ or 15.4W for standard PoE.

Q: Which SFP modules work in the uplink ports?
A: The SFP uplinks support Cisco 100BASE and 1000BASE SFP modules, including 1000BASE-SX, LX, ZX, BX and CWDM, as listed in the Cisco Transceiver Compatibility Matrix.

Q: Can I use all four uplink ports at once?
A: Yes. The 2 x 1G RJ45 and 2 x 1G SFP uplink ports can all be used at the same time, and they can also be used as downlinks.

Q: How can this switch be mounted?
A: It can be mounted on a wall, under a desk, in a rack or on a DIN rail using Cisco compact accessories such as CMPCT-DIN-MNT=, CMPCT-MGNT-TRAY=, RCKMNT-19-CMPCT= and RCKMNT-23-CMPCT=.

Q: Does it need a fan or active cooling?
A: No. It is a fanless design with silent operation, rated for -5 to +45 C operation.
