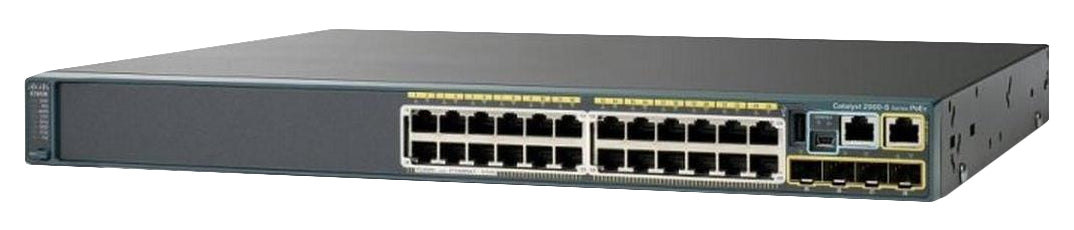

• Cisco WS-C2960S-24PS-L 24-port PoE+ switch with 1G SFP uplinks
1 1

Cisco

Cisco WS-C2960S-24PS-L | Catalyst 2960-S 24-Port PoE+ Switch, 370W, LAN Base

WS-C2960S-24PS-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-S 24-port PoE+ switch is a fixed-configuration 1RU Layer 2 access switch built for medium-sized businesses and small branch offices. It suits environments that need to power IP phones, wireless access points and other PoE and PoE+ devices from a single compact unit.

This model provides 24 10/100/1000 PoE+ ports and four 1G SFP uplink ports. The 370W PoE budget supports up to 12 ports at 30W (PoE+) or 24 ports at 15.4W (PoE). Switching bandwidth is 176 Gbps, forwarding bandwidth is 88 Gbps and the forwarding rate is 41.7 mpps with 64-byte packets. It runs the Cisco IOS LAN Base feature set, as indicated by the -L suffix, and no additional subscription is needed to operate it.

The four uplink slots take Cisco 1G SFP modules. The switch supports the optional FlexStack stacking module (Catalyst 2960S-STACK) for stacking with other 2960-S switches at 20 Gbps of stack bandwidth, and it can connect to a Cisco RPS for redundant power.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- PoE+ (IEEE 802.3at) with up to 30W per port, plus 802.3af PoE
- Fixed internal 370W power supply for PoE budget
- Optional FlexStack stacking with other Catalyst 2960-S switches
- Cisco Catalyst SmartOperations for simplified deployment and management
- Gigabit Ethernet access with four SFP uplinks
- LAN Base software with Layer 2 features and basic security
- RPS connectivity for redundant power

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: Cisco Catalyst 2960S-24PS-L
- 10/100/1000 Ethernet interfaces: 24 (PoE+)
- Uplink interfaces: 4 x 1G SFP
- Cisco IOS feature set: LAN Base
- Available PoE power: 370W
- Max PoE+ (802.3at) ports: 12 ports up to 30W
- Max PoE (802.3af) ports: 24 ports up to 15.4W
- FlexStack stacking: Optional, 20 Gbps stack bandwidth
- Switching bandwidth: 176 Gbps
- Forwarding bandwidth: 88 Gbps
- Forwarding rate (64-byte packets): 41.7 mpps
- Flash memory: 64 MB
- DRAM: 128 MB
- Maximum active VLANs: 255
- VLAN IDs available: 4000
- Maximum transmission unit (L3 packet): 9198 bytes
- Jumbo frame (Ethernet frame): 9216 bytes
- AC input: 100-240 VAC autoranging, 50-60 Hz
- Power rating: 0.46 kVA
- DC input (RPS): 12V at 3 A, -52V at 8 A
- MTBF: 245,604 hours
- Weight: 5.7 kg
- Form factor: 1RU rack-mountable

FAQs

Q: Does this switch need a licence or subscription?
A: No. It ships with the Cisco IOS LAN Base feature set, indicated by the -L suffix, and no additional subscription is needed to operate it.

Q: How many PoE+ devices can it power at once?
A: The 370W PoE budget supports up to 12 ports at 30W (PoE+) or up to 24 ports at 15.4W (PoE), or a mix within the total budget.

Q: What modules fit the four uplink ports?
A: The four uplink slots take Cisco 1G SFP modules.

Q: Can it be stacked with other switches?
A: Yes, with the optional FlexStack stacking module (Catalyst 2960S-STACK), which provides 20 Gbps of stack bandwidth and stacks with other 2960-S switches.

Q: Does it support redundant power?
A: It has an RPS DC input (12V at 3 A and -52V at 8 A) so it can connect to a Cisco RPS.
