Cisco

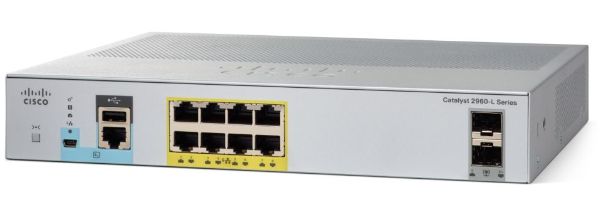

Cisco WS-C2960L-SM-8TS | Catalyst 2960-L 8-Port Gigabit Switch, 2x 1G SFP, Smart Managed

SKU:WS-C2960L-SM-8TS

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-L Smart Managed switch is a fixed, fanless Gigabit Ethernet access switch for small branch offices, small and medium-sized businesses and out-of-the-wiring-closet deployments. It runs an enhanced Cisco IOS LAN Lite image and is configured through an on-box web UI for quick setup, with limited CLI available for troubleshooting and monitoring.

This 8-port non-PoE model provides 8 x 10/100/1000 Ethernet ports and 2 x 1G SFP uplinks. Forwarding bandwidth is 10 Gbps and switching bandwidth is 20 Gbps, backed by 512 MB DRAM and 256 MB flash. It supports up to 16,000 unicast MAC addresses, 256 active VLANs and 64 STP instances. A single fixed internal AC supply accepts 110 to 220 V AC and draws about 13 W at idle and 14.9 W at 100% traffic. Base operation needs no licence, and optional term-based Cisco DNA Essentials licences enable Cisco DNA Center features.

The two SFP uplink slots accept a wide range of Cisco SFP optics. The compact 8-port chassis works with the CMPCT-MGNT-TRAY magnetic tray, CMPCT-CBLE-GRD cable guard and CMPCT-DIN-MNT DIN rail mount, and the switch can be managed through Cisco DNA Center, Cisco Prime Infrastructure and Cisco Network Plug and Play.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Smart Managed on-box web UI (Cisco Configuration Professional) for day-zero provisioning, monitoring and troubleshooting
- Bluetooth over-the-air management via external USB dongle
- Management with Cisco DNA Center, Cisco Prime Infrastructure and Cisco Network Plug and Play
- 802.1X, MAC authentication bypass, Web Authentication and IPv4/IPv6 ACLs
- BPDU Guard, IP Source Guard, Root Guard, TACACS+/RADIUS and SSH/SNMPv3
- RSTP/MSTP, PVRST+, Link State Tracking and LACP/PAgP
- Enhanced QoS with up to 8 egress queues per port, auto-QoS and DSCP mapping
- Fanless, compact design with IEEE 802.3az Energy Efficient Ethernet

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ethernet ports: 8 x 10/100/1000 (non-PoE)
- Uplink interfaces: 2 x 1G SFP
- PoE: None (non-PoE model)
- Management: Smart Managed, on-box web UI with limited CLI
- Cooling: Fanless
- Forwarding bandwidth: 10 Gbps
- Switching bandwidth: 20 Gbps
- CPU: ARMv7 800 MHz
- DRAM: 512 MB
- Flash memory: 256 MB
- Unicast MAC addresses: 16000
- Maximum active VLANs: 256
- VLAN IDs available: 4094
- Maximum STP instances: 64
- Maximum SPAN sessions: 4
- Jumbo Ethernet frame: 10,240 bytes
- Console ports: 1 x RJ45 Ethernet, 1 x USB mini-B, 1 x USB-A
- Input voltage: 110 to 220 V AC auto ranging, 50 to 60 Hz
- Power consumption: 13.0 W at 0% traffic, 14.9 W at 100% traffic
- Dimensions (H x D x W): 4.4 x 21.5 x 26.8 cm
- Weight: 1.51 kg
- Operating temperature: -5 to 45 C (up to 1500 m)
- MTBF: 2,448,133 hours

FAQs

Q: Does this switch need a licence to operate?
A: No licence is needed for base operation, as it runs an enhanced Cisco IOS LAN Lite image. Optional term-based Cisco DNA Essentials licences (C2960L-DNA-E-8=) are only required to use Cisco DNA Center, Cisco Prime Infrastructure or Network Plug and Play.

Q: Does it provide PoE?
A: No. This is a non-PoE model, so the 8 Gigabit ports do not supply power to connected devices.

Q: How is it powered?
A: It has a single fixed internal AC power supply that accepts 110 to 220 V AC at 50 to 60 Hz, and typical draw is 13.0 W idle and 14.9 W at full traffic.

Q: How do I configure it?
A: Configuration is through the on-box web UI, which is built for quick day-zero setup. A limited CLI is available for troubleshooting and monitoring.

Q: What can I fit in the SFP uplink slots?
A: The two 1G SFP uplink slots support a wide range of Cisco SFP optics. Check the Cisco Optics Compatibility matrix for the exact module you plan to use.

Q: Can it be rack mounted?
A: The 1RU rack mount kits are for 24- and 48-port models only. For this compact 8-port chassis, use the CMPCT-MGNT-TRAY magnetic tray, CMPCT-CBLE-GRD cable guard or CMPCT-DIN-MNT DIN rail mount.
