Cisco WS-C2960L-SM-8PS | Catalyst 2960L 8-Port PoE+ Switch, 67W, Smart Managed
SKU:WS-C2960L-SM-8PS
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

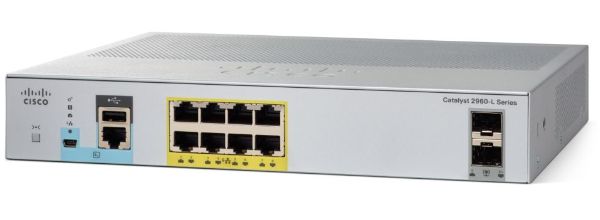

The Catalyst 2960-L Smart Managed is a fanless, fixed-configuration Gigabit Ethernet access switch built for small offices, branch sites and out-of-the-wiring-closet deployments. It suits small and medium-sized businesses and IoT rollouts that need a simple, web-managed PoE+ access switch without a full command-line workflow.
The switch provides 8 x 10/100/1000 PoE+ ports with a 67W PoE budget, plus 2 x 1G SFP uplinks. Forwarding bandwidth is 10 Gbps and switching bandwidth is 20 Gbps, with support for 16,000 unicast MAC addresses, 256 active VLANs and a 10,240-byte jumbo frame size. It runs the enhanced Cisco IOS LAN Lite feature set and is configured through an on-box web interface with limited CLI for troubleshooting and monitoring. Fanless operation allows use at up to 45 C, and the compact chassis is under 11.5 inches deep.
The two SFP uplink slots accept Cisco 1G SFP modules, including 1000BASE-T SFPs. Management is supported through Cisco DNA Center, Cisco Prime and Network Plug and Play, as well as SNMP and Bluetooth console access.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Perpetual PoE+ support on all 8 access ports
- Fanless, silent operation suited to open office spaces
- Enhanced Cisco IOS LAN Lite software
- On-box web interface with limited CLI for troubleshooting and monitoring
- 802.1X, SPAN and BPDU Guard for access security
- Bluetooth console access, SNMP, and RJ45 or USB console
- Manageable through Cisco DNA Center, Cisco Prime and Network Plug and Play
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 8 x 10/100/1000 Ethernet PoE+
- Uplinks: 2 x 1G SFP
- PoE budget: 67W
- Forwarding bandwidth: 10 Gbps
- Switching bandwidth: 20 Gbps
- Unicast MAC addresses: 16,000
- Maximum active VLANs: 256
- VLAN IDs available: 4094
- Maximum STP instances: 64
- Jumbo frame size: 10,240 bytes
- CPU: ARMv7 800 MHz
- DRAM: 512 MB
- Flash memory: 256 MB
- Console ports: 1 x RJ45 Ethernet, 1 x USB mini-B, 1 x USB-A
- Cooling: Fanless
- Input voltage: 110 to 220V AC auto-ranging, 50 to 60 Hz
- Power consumption with PoE, weighted average: 21.3 W
- Dimensions (H x D x W): 4.4 x 24 x 26.8 cm (1.73 x 9.45 x 10.56 in)
- Weight: 2.04 kg (4.50 lb)
- Operating temperature: -5 to 45 C up to 1500 m
- MTBF (data): 2,448,133 hours
- Safety standards: UL 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
FAQs
Q: Does this switch need a licence or subscription to operate?
A: No. It runs the enhanced Cisco IOS LAN Lite feature set, so no subscription is needed for operation. Optional term-based Cisco DNA Essentials licences are available through Cisco Smart Accounts.
Q: How much PoE power does it provide?
A: It provides a total PoE budget of 67W shared across the 8 ports, supporting both 802.3af and 802.3at (PoE+) devices.
Q: Which optics fit the SFP uplink slots?
A: The 2 uplink slots accept Cisco 1G SFP modules, including 1000BASE-T SFP modules.
Q: How is the switch managed?
A: Configuration is done through an on-box web interface, with a limited CLI for troubleshooting and monitoring. It can also be managed through Cisco DNA Center, Cisco Prime, Network Plug and Play and SNMP.
Q: Which console cables does it use?
A: It supports the CAB-CONSOLE-RJ45 and CAB-CONSOLE-USB console cables, and also offers Bluetooth console access.
