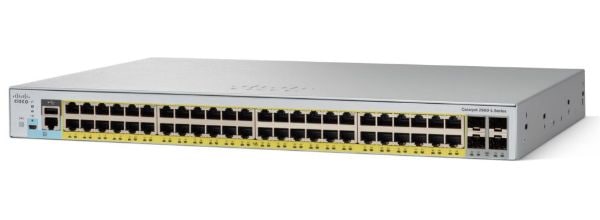

Cisco WS-C2960L-SM-48TS | Catalyst 2960-L 48-Port Gigabit Switch, 4x 1G SFP, Smart Managed

SKU:WS-C2960L-SM-48TS

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-L Smart Managed WS-C2960L-SM-48TS is a fixed, fanless Gigabit Ethernet access switch built for branch offices, out-of-the-wiring-closet deployments, critical IoT installations and small and medium-sized businesses. It runs an enhanced version of Cisco IOS LAN Lite and can be set up quickly through the on-box web UI, with a limited CLI available for further configuration.

This non-PoE model provides 48 x 10/100/1000 Ethernet ports and 4 x 1G SFP uplinks. Forwarding bandwidth is 52 Gbps and switching bandwidth is 104 Gbps, with support for 16,000 unicast MAC addresses, 256 active VLANs and jumbo frames up to 10,240 bytes. It carries 512 MB of DRAM and 256 MB of flash. Fanless operation keeps noise low, and typical power draw is around 24 to 34 W from a single fixed internal AC supply with 110 to 220 V auto-ranging input.

The four SFP uplink slots accept 1G SFP optics. The switch can be managed through Cisco DNA Center, Cisco Prime Infrastructure and Cisco Network Plug and Play, and an external USB Bluetooth dongle enables over-the-air console access. Basic switching needs no additional licence, while optional term-based Cisco DNA Essentials licences are required for Cisco DNA Center features.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Enhanced Cisco IOS LAN Lite with CLI and on-box web UI management
- Management via SNMP, Cisco Prime Infrastructure, Network Plug and Play and Cisco DNA Center
- Security: 802.1X, MAB, web authentication, port-based ACLs, BPDU Guard, IP Source Guard, TACACS+/RADIUS, SSH and SNMPv3
- Resiliency: RSTP/MSTP, PVRST+, LACP/PAgP, UDLD and link state tracking
- QoS with 8 egress queues per port, Auto-QoS and DSCP mapping
- IGMP and MLD snooping, voice VLAN and storm control
- IEEE 802.3az Energy Efficient Ethernet and Cisco EnergyWise
- Bluetooth console access via external USB dongle

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000 Ethernet
- Uplinks: 4 x 1G SFP
- PoE: Non-PoE model, no PoE power budget
- Cooling: Fanless
- Forwarding bandwidth: 52 Gbps
- Switching bandwidth: 104 Gbps
- Unicast MAC addresses: 16,000
- Active VLANs: 256 (4094 VLAN IDs available)
- Jumbo frame: 10,240 bytes
- CPU: ARMv7 800 MHz
- DRAM: 512 MB
- Flash memory: 256 MB
- Console ports: 1 x RJ45 Ethernet, 1 x USB mini-B, 1 x USB-A
- Input voltage: 110 to 220 V AC auto-ranging, 50 to 60 Hz
- Power consumption: 24.36 W at 0% traffic, 33.6 W at 100% traffic
- Dimensions (H x D x W): 4.4 x 24 x 44.5 cm
- Weight: 2.98 kg
- Operating temperature: -5 to 45 C up to 1500 m
- Operating humidity: 5% to 90% at 40 C
- MTBF: 1,370,769 hours

FAQs

Q: Does this switch need a licence?
A: No additional licence is needed for basic switching, as it runs an enhanced version of Cisco IOS LAN Lite. Optional term-based Cisco DNA Essentials licences are required to use Cisco DNA Center features such as Network Plug-and-Play, inventory and software image management.

Q: Does it supply PoE to connected devices?
A: No. This is a non-PoE model with no PoE power budget. It is powered from a single fixed internal AC supply with 110 to 220 V auto-ranging input.

Q: Which optics work in the uplink ports?
A: The 4 uplink slots accept 1G SFP optics. Check the Cisco optics compatibility tables to confirm the specific genuine Cisco SFP part number you need.

Q: How is the switch managed?
A: It offers an on-box web UI for quick setup and a limited CLI. It can also be managed through Cisco DNA Center, Cisco Prime Infrastructure and Cisco Network Plug and Play.

Q: Is it silent in operation?
A: It is fanless, so there is no fan noise, which suits open office and out-of-the-wiring-closet deployments. It operates from -5 to 45 C at altitudes up to 1500 m.
