Cisco

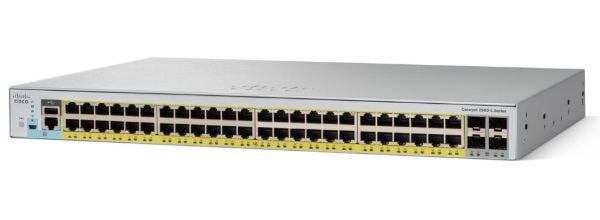

Cisco WS-C2960L-SM-48TQ | Catalyst 2960-L 48-Port Gigabit Switch, 4x 10G SFP+, SM

SKU:WS-C2960L-SM-48TQ

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-L Smart Managed switch is a fixed, fanless Gigabit Ethernet access switch built for branch offices, small and medium-sized businesses, out-of-the-wiring-closet applications and IoT deployments. With no fans, it suits quiet or open-office environments.

This model provides 48 non-PoE 10/100/1000 ports and four fixed 10G SFP+ uplinks. Forwarding bandwidth is 52 Gbps at 1G and 88 Gbps at 10G, with switching bandwidth of 104 Gbps at 1G and 176 Gbps at 10G. It supports 16,000 unicast MAC addresses, 256 active VLANs and a 10,240-byte jumbo frame size, backed by 512 MB DRAM and 256 MB flash. Because it is a non-PoE model it provides no PoE budget, and typical power draw is about 35.6 W. The Smart Managed (SM) variant runs the enhanced Cisco IOS LAN Lite image, managed through an on-box web UI with limited CLI, and optional Bluetooth console access via an external USB dongle.

The switch accepts a wide range of SFP and SFP+ optics, and can be managed with Cisco DNA Center, Cisco Prime Infrastructure and Cisco Network Plug and Play.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Enhanced Cisco IOS LAN Lite software with on-box web UI and limited CLI
- Bluetooth over-the-air management using an external USB dongle
- Managed with Cisco DNA Center, Cisco Prime Infrastructure and Network Plug and Play
- Security including 802.1X, MAC authentication bypass, port-based ACLs, DHCP snooping and BPDU Guard
- Resiliency with RSTP, MSTP, PVRST+, LACP EtherChannel and UDLD
- QoS with up to 8 egress queues per port, auto-QoS and 802.1p CoS
- Energy efficiency through IEEE 802.3az EEE and Cisco EnergyWise
- Smart Install, Auto SmartPorts and IGMP/MLD snooping for simpler operation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ethernet ports: 48 x 10/100/1000 (non-PoE)
- Uplink interfaces: 4 x SFP+ (10G)
- Available PoE power: None
- Fanless: Yes
- Forwarding bandwidth: 52 Gbps (1G), 88 Gbps (10G)
- Switching bandwidth: 104 Gbps (1G), 176 Gbps (10G)
- Unicast MAC addresses: 16,000
- DRAM: 512 MB
- Flash memory: 256 MB
- CPU: ARMv7 800 MHz
- Maximum active VLANs: 256
- Jumbo Ethernet frame: 10,240 bytes
- Console ports: 1 x RJ45 Ethernet, 1 x USB mini-B, 1 x USB-A
- Dimensions (H x D x W): 4.4 x 24 x 44.5 cm
- Weight: 3.03 kg
- Operating temperature: -5 to 45 C up to 1500 m
- Input voltage: 110 to 220 V AC auto-ranging, 50 to 60 Hz
- Weighted average power consumption: 35.6 W (1G)
- MTBF: 1,370,769 hours

FAQs

Q: Does this switch need a licence?
A: The enhanced Cisco IOS LAN Lite feature set needs no additional licence for base operation. Optional term-based Cisco DNA Essentials licences are available for Cisco DNA Center features.

Q: Does it provide PoE?
A: No. This is a non-PoE model, so it provides no PoE budget. It is powered by a single fixed internal AC supply, 110 to 220 V AC auto-ranging.

Q: Which optics and accessories does it work with?
A: The four SFP+ uplinks support a wide range of Cisco SFP and SFP+ optics. Rack-mount kits RCKMNT-1RU-2KX and RCKMNT-REC-2KX, console cables CAB-CONSOLE-RJ45 and CAB-CONSOLE-USB, and the PWR-CLP power cord clip are supported.

Q: How does the Smart Managed (SM) model differ from other 2960-L switches?
A: The SM variant runs the enhanced Cisco IOS LAN Lite image and is managed mainly through the on-box web UI with limited CLI. This SKU pairs 48 non-PoE Gigabit ports with four 10G SFP+ uplinks.

Q: Is the switch silent in operation?
A: Yes. It is fanless, so it suits quiet or open-office environments, and it operates at temperatures up to 45 C.
