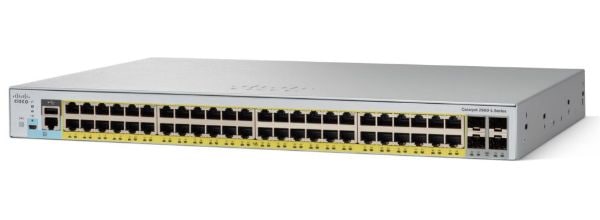

• Cisco WS-C2960L-SM-48PS 48-port silver PoE+ smart switch
1 1

Cisco

Cisco WS-C2960L-SM-48PS | Catalyst 2960-L 48-Port PoE+ Switch, 370W, LAN Lite

WS-C2960L-SM-48PS

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-L Smart Managed is a fixed-configuration Gigabit access switch built for branch offices, small and medium businesses and IoT deployments. It powers PoE devices such as IP phones, wireless access points and PoE lighting directly from the switch.

This model provides 48 x 10/100/1000 PoE+ downlink ports with a 370W PoE budget, plus four 1G SFP uplinks. Forwarding bandwidth is 52 Gbps and switching bandwidth is 104 Gbps, backed by 512 MB DRAM and 256 MB flash. It runs Cisco IOS LAN Lite software, the Smart Managed feature set that separates this SKU from other 2960-L variants. Perpetual PoE+ keeps endpoints powered during a switch reload.

The four SFP uplink slots accept 1G SFP modules, and the switch can be managed through the CLI, the on-box web UI, Cisco Prime, Network Plug and Play or Cisco DNA Center. It uses a single fixed internal AC power supply (100-240 VAC autoranging) in a 1RU chassis.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Perpetual PoE+ keeps power to endpoints during a switch reload
- Dynamic PoE+ power allocation up to 370W across ports with intelligent power management
- Cisco IOS LAN Lite with CLI and on-box web UI management
- Management via SNMP, RJ-45 or USB console, Bluetooth console, Cisco Prime, Network Plug and Play and Cisco DNA Center
- 802.1X (including NEAT), SPAN and BPDU Guard security
- Multidomain authentication for an IP phone and PC on the same port
- IPv4 and IPv6 ACLs and QoS with DSCP mapping and traffic classification
- Basic Layer 3 features including static routing and RIP

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Downlink ports: 48 x 10/100/1000 Ethernet PoE+
- Uplink ports: 4 x 1G SFP
- PoE budget: 370W (IEEE 802.3af/802.3at)
- Software: Cisco IOS LAN Lite
- CPU: ARMv7 800 MHz
- DRAM: 512 MB
- Flash memory: 256 MB
- Forwarding bandwidth: 52 Gbps
- Switching bandwidth: 104 Gbps
- Console and management ports: USB mini-B console, RJ-45 console, USB-A port for storage and Bluetooth console
- Form factor: 1RU fixed configuration
- Dimensions (H x W x D): 4.4 x 29.2 x 44.5 cm
- Weight: 4.57 kg
- Power consumption without PoE: 63W
- Power consumption with full PoE: 472W
- Input voltage: 100-240 VAC autoranging, 50-60 Hz
- Maximum power for BTU/hr: 465.8
- Operating temperature: -5 to 45 C up to 1500 m
- Storage temperature: -25 to 70 C
- Operating relative humidity: 5% to 90% non-condensing

FAQs

Q: Does this switch need a separate licence or subscription?
A: No. Cisco IOS LAN Lite software is included with the switch and no subscription is required for basic operation. Cisco DNA Center management is optional.

Q: How much PoE power does it provide?
A: It provides a 370W PoE+ budget shared across the 48 ports, supporting IEEE 802.3af and 802.3at devices. Power is allocated dynamically to connected endpoints.

Q: Does it have a redundant power supply?
A: No. It uses a single fixed internal AC power supply (100-240 VAC autoranging, 50-60 Hz) with no redundant power supply port.

Q: What can I fit in the SFP uplink slots?
A: The four uplink slots accept 1G SFP modules.

Q: What does LAN Lite mean for this SKU?
A: LAN Lite is the Smart Managed IOS feature set that this SKU runs. It includes CLI and web UI management, 802.1X, ACLs, QoS and basic Layer 3 features such as static routing and RIP.
