Cisco

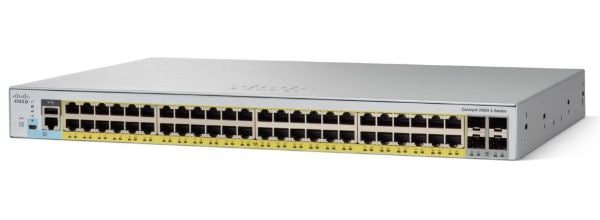

Cisco WS-C2960L-SM-48PQ | Catalyst 2960-L 48-Port PoE+ Switch, 370W, 4x 10G SFP+

SKU:WS-C2960L-SM-48PQ

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-L 48-port PoE+ switch is a fixed, smart-managed Gigabit Ethernet access switch for branch offices, small and medium-sized businesses, out-of-the-wiring-closet applications and critical IoT deployments. It powers IP phones, wireless access points and PoE-powered lighting from a single 1RU unit.

It provides 48 x 10/100/1000 PoE+ ports with a 370W PoE budget, supporting IEEE 802.3af and 802.3at at up to 30W per port with dynamic power allocation. Four 10G SFP+ uplinks connect it to the core or distribution layer. Forwarding bandwidth is 52 Gbps at 1G and 88 Gbps at 10G, with 16,000 unicast MAC addresses and up to 256 active VLANs. It runs the enhanced Cisco IOS LAN Lite image and is managed through an on-box web UI with limited CLI. This is the Smart Managed variant.

The base LAN Lite image is included. Optional Cisco DNA Essentials term licences are available for Network Plug and Play, Cisco DNA Center and Cisco Prime Infrastructure integration. The SFP+ uplinks accept a wide range of Cisco optics.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Perpetual PoE+ keeps power on during a switch reload
- IEEE 802.3af PoE and 802.3at PoE+ with dynamic power allocation
- Enhanced Cisco IOS LAN Lite software with on-box web UI
- Bluetooth console access through an external USB dongle
- 802.1X, MAC authentication bypass, Web Authentication, port-based ACLs, BPDU Guard and IP Source Guard
- RSTP, MSTP, PVRST+, Link State Tracking and LACP
- Auto-QoS with up to eight egress queues per port
- IEEE 802.3az Energy Efficient Ethernet and Cisco EnergyWise

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ethernet ports: 48 x 10/100/1000 PoE+
- Uplink interfaces: 4 x 10G SFP+
- Available PoE power: 370W
- Management: Smart Managed, on-box web UI with limited CLI
- Forwarding bandwidth: 1G 52 Gbps, 10G 88 Gbps
- Switching bandwidth: 1G 104 Gbps, 10G 176 Gbps
- CPU: ARMv7 800 MHz
- DRAM: 512 MB
- Flash memory: 256 MB
- Unicast MAC addresses: 16,000
- Maximum active VLANs: 256
- VLAN IDs available: 4094
- Jumbo Ethernet frame: 10,240 bytes
- Console ports: 1 x RJ45 Ethernet, 1 x USB mini-B, 1 x USB-A
- Input voltage: 110 to 220V AC auto-ranging, 50 to 60 Hz
- Power consumption at 0% traffic (PoE, 10G uplinks): 27 W
- Power consumption at 100% traffic (PoE, 10G uplinks): 40.56 W
- Dimensions (H x D x W): 4.4 x 29.2 x 44.5 cm
- Weight: 4.54 kg
- Operating temperature: -5 to 45 C up to 1500 m
- Cooling: fan-cooled
- Acoustic noise: 35 dB typical, 39 dB maximum

FAQs

Q: Does this switch need a licence?
A: The base enhanced LAN Lite image is included. Cisco DNA Essentials term licences (C2960L-DNA-E-48= with 3, 5 or 7-year terms) are optional and are needed to use Network Plug and Play, Cisco DNA Center or Cisco Prime Infrastructure.

Q: How much PoE power does it provide?
A: It provides a 370W PoE+ budget across its 48 ports, supporting 802.3af and 802.3at at up to 30W per port with dynamic power allocation. It runs from a fixed internal AC supply, 110 to 220V AC auto-ranging.

Q: What can I connect to the SFP+ uplinks?
A: The four SFP+ uplinks support a wide range of Cisco optics, listed in the Cisco Optics Compatibility tables.

Q: How is this Smart Managed model configured?
A: It is managed through an on-box web UI using Cisco Configuration Professional, with limited CLI access. It also supports SNMP v1/v2c/v3 and can be managed by Cisco DNA Center or Cisco Prime Infrastructure.

Q: What rack mount and console accessories does it use?
A: It uses RCKMNT-1RU-2KX or RCKMNT-REC-2KX rack mounts, CAB-CONSOLE-RJ45 or CAB-CONSOLE-USB console cables, and the PWR-CLP power cable clip.
