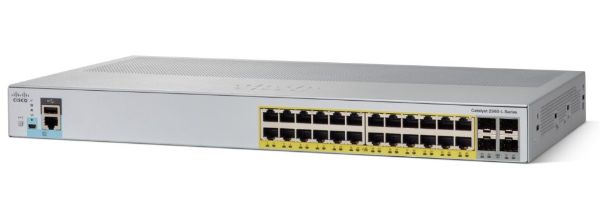

Cisco WS-C2960L-SM-24TQ | Catalyst 2960-L 24-Port Gigabit Switch, 4x 10G SFP+
SKU:WS-C2960L-SM-24TQ
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Catalyst 2960-L Smart Managed is a fixed, fanless Gigabit Ethernet access switch built for branch offices, small and medium-sized businesses, out-of-the-wiring-closet applications and critical IoT deployments. It runs an enhanced Cisco IOS LAN Lite image and is set up through an on-box web UI, with a limited CLI for troubleshooting and monitoring.
This model provides 24 non-PoE 10/100/1000 Ethernet ports and 4 x 10G SFP+ uplinks. It delivers 128 Gbps of switching bandwidth and 64 Gbps of forwarding bandwidth, with 16,000 unicast MAC addresses and 256 active VLANs. Memory is 512 MB DRAM and 256 MB flash. A single internal AC supply (110 to 220V AC, 50 to 60 Hz) draws roughly 17 to 24 W depending on traffic, and fanless operation supports temperatures up to 45 C.
The SFP+ uplinks accept a wide range of Cisco optics, and a USB-A port supports an external Bluetooth dongle for over-the-air management. Optional term-based Cisco DNA Essentials licences add Network Plug and Play, Cisco DNA Center discovery, inventory, topology and software image management.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Line-rate Gigabit Ethernet access switching with enhanced Cisco IOS LAN Lite software
- On-box web UI via Cisco Configuration Professional, plus limited CLI for troubleshooting and monitoring
- Bluetooth over-the-air management using an external USB dongle in the USB-A port
- 802.1X, MAC authentication bypass, Web Authentication, port-based and IPv4/IPv6 ACLs
- RSTP, MSTP and PVRST+ with Link State Tracking for resiliency
- QoS with eight egress queues per port, SRR scheduling and Auto-QoS
- IEEE 802.3az Energy Efficient Ethernet and Cisco EnergyWise
- Managed with Cisco DNA Center, Prime Infrastructure and Network Plug and Play
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ethernet ports: 24 x 10/100/1000 (non-PoE)
- Uplinks: 4 x SFP+ (10G)
- PoE budget: None (non-PoE model)
- Forwarding bandwidth: 64 Gbps
- Switching bandwidth: 128 Gbps
- Fanless: Yes
- CPU: ARMv7 800 MHz
- DRAM: 512 MB
- Flash memory: 256 MB
- Console ports: 1 x RJ45 Ethernet, 1 x USB mini-B, 1 x USB-A
- Unicast MAC addresses: 16,000
- Maximum active VLANs: 256
- Maximum STP instances: 64
- Jumbo frame: 10,240 bytes
- Dimensions (H x D x W): 4.4 x 24 x 44.5 cm
- Weight: 2.75 kg
- Operating temperature: -5 to 45 C (up to 1500 m)
- Power input: 110 to 220V AC, 50 to 60 Hz
- Power consumption: 17.04 W at 0% traffic, 23.64 W at 100% traffic
- MTBF: 2,412,947 hours
FAQs
Q: Does this switch need a licence?
A: It runs an enhanced Cisco IOS LAN Lite image with no separate base licence. Optional term-based Cisco DNA Essentials licences are needed to use Cisco DNA Center, Network Plug and Play or Cisco Prime Infrastructure.
Q: Does it support PoE?
A: No. This is a non-PoE model, so it provides no PoE budget. Powered devices need a separate power source or injector.
Q: Which optics work in the SFP+ uplinks?
A: The 4 x SFP+ uplinks support a wide range of Cisco optics. Cisco's Optics Compatibility tables list the current supported parts.
Q: How is it powered and cooled?
A: It has a single fixed internal AC supply, 110 to 220V AC auto-ranging at 50 to 60 Hz. The fanless design is silent in operation.
Q: How is it different from the other 24-port 2960-L models?
A: This is the Smart Managed, non-PoE variant with 4 x 10G SFP+ uplinks, managed mainly through the on-box web UI. Sibling SKUs differ in PoE support, uplink speed or software image.
