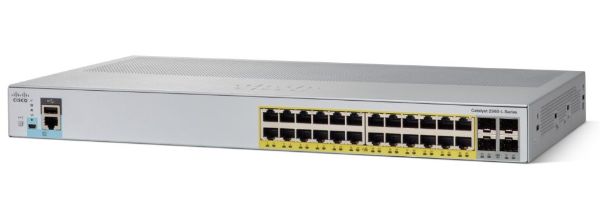

Cisco WS-C2960L-SM-24PS | Catalyst 2960-L 24-Port PoE+ Switch, 195W, Smart Managed

WS-C2960L-SM-24PS

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-L WS-C2960L-SM-24PS is a fixed, smart-managed Gigabit Ethernet access switch built for branch offices, small and medium-sized businesses and IoT deployments. It powers IP phones, wireless access points and similar endpoints from a fanless chassis, which suits spaces outside the wiring closet.

It provides 24 x 10/100/1000 PoE+ ports with a 195W PoE budget, supporting IEEE 802.3af and 802.3at with up to 30W per port. Four 1G SFP uplinks handle fibre or copper aggregation. Forwarding bandwidth is 28 Gbps and switching bandwidth is 56 Gbps. The Smart Managed (SM) model runs an enhanced Cisco IOS LAN Lite image, configured through an on-box web interface with limited CLI. Optional term-based Cisco DNA Essentials licences are only needed for Cisco DNA Center features such as Network Plug and Play, inventory and software image management.

The four uplink slots accept 1G SFP optics. RCKMNT-1RU-2KX and RCKMNT-REC-2KX rack mount kits, CAB-CONSOLE-RJ45 and CAB-CONSOLE-USB console cables and the PWR-CLP power cord restraining clip are the matching accessories. The switch can be managed by Cisco DNA Center, Cisco Prime Infrastructure and Cisco Network Plug and Play.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Perpetual PoE+ keeps PoE power during a switch reload
- IEEE 802.3af PoE and 802.3at PoE+ with up to 30W per port and dynamic power allocation
- Enhanced Cisco IOS LAN Lite software with on-box web interface and limited CLI
- Bluetooth over-the-air management using an external USB dongle
- Managed by Cisco DNA Center, Cisco Prime Infrastructure and Cisco Network Plug and Play
- 802.1X, MAB, web authentication, port-based ACLs, BPDU Guard, IP Source Guard and TACACS+/RADIUS
- RSTP, MSTP, PVRST+, link state tracking and LACP/PAgP EtherChannel
- QoS with 8 egress queues per port, SRR scheduling and Auto-QoS
- IEEE 802.3az Energy Efficient Ethernet and Cisco EnergyWise

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ethernet ports: 24 x 10/100/1000 PoE+
- Uplink interfaces: 4 x SFP (1G)
- Available PoE power: 195W
- Forwarding bandwidth: 28 Gbps
- Switching bandwidth: 56 Gbps
- CPU: ARMv7 800 MHz
- DRAM: 512 MB
- Flash memory: 256 MB
- Unicast MAC addresses: 16000
- Maximum active VLANs: 256
- VLAN IDs available: 4094
- Maximum STP instances: 64
- Maximum SPAN sessions: 4
- Jumbo Ethernet frame: 10,240 bytes
- Console ports: 1 x RJ45 Ethernet, 1 x USB mini-B, 1 x USB-A
- Fanless: Yes
- Dimensions (H x D x W): 1.73 x 10.45 x 17.5 in (4.4 x 26.5 x 44.5 cm)
- Weight: 7.41 lb (3.36 kg)
- Operating temperature (up to 5,000 ft): -5 to 45 C (23 to 113 F)
- Operating relative humidity: 5% to 90% at 40 C
- Input voltage: 110 to 220V AC auto-ranging, 50 to 60 Hz
- Maximum power consumption (PoE): 0.24 kVA
- MTBF: 909,838 hours

FAQs

Q: Does this switch need a licence?
A: No licence is needed for standard operation, as it runs an enhanced Cisco IOS LAN Lite image. Optional term-based Cisco DNA Essentials licences are only required for Cisco DNA Center features such as Network Plug and Play, inventory and software image management.

Q: How much PoE power does it provide?
A: It provides a 195W PoE budget across its 24 ports. Ports support IEEE 802.3af and 802.3at PoE+ at up to 30W per port with dynamic power allocation.

Q: How is it managed?
A: It is configured through an on-box web interface with limited CLI. It can also be managed by Cisco DNA Center, Cisco Prime Infrastructure and Cisco Network Plug and Play, or over Bluetooth using an external USB dongle.

Q: What can be fitted in the four uplink ports?
A: The four uplink slots accept 1G SFP optics. Check the Cisco Optics Compatibility tool for supported modules.

Q: How does it differ from other 2960-L models?
A: This SKU is the 24-port PoE+ model with a 195W PoE budget, 4 x 1G SFP uplinks and the Smart Managed (SM) LAN Lite software image.
