Cisco

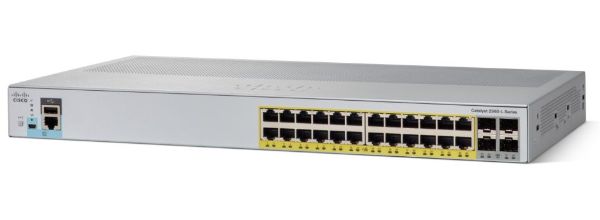

Cisco WS-C2960L-SM-24PQ | Catalyst 2960-L 24-Port PoE+ Switch, 195W, Smart Managed

WS-C2960L-SM-24PQ

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-L WS-C2960L-SM-24PQ is a fixed, fanless, smart-managed Gigabit Ethernet access switch for branch offices, small and medium-sized businesses, out-of-the-wiring-closet applications and IoT deployments that need enterprise-class PoE+ access switching with simple web-based management.

It provides 24 10/100/1000 PoE+ ports sharing a 195W PoE budget, with up to 30W per port, plus four 10G SFP+ uplink ports. Forwarding bandwidth is 64 Gbps and switching bandwidth is 128 Gbps. This Smart Managed variant runs an enhanced Cisco IOS LAN Lite image and is configured through an on-box web UI, with a limited CLI for troubleshooting and monitoring. The switch supports 256 active VLANs and 16,000 unicast MAC addresses, and a 512 MB DRAM and 256 MB flash memory handle the access-layer workload.

It can be managed by Cisco DNA Center, Cisco Prime Infrastructure and Cisco Network Plug and Play, with optional term-based Cisco DNA Essentials licences enabling DNA Center features. Optics, rack mounts and console cables are available as accessories, including the RCKMNT-1RU-2KX rack mount and CAB-CONSOLE-RJ45 console cable.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Perpetual PoE+ keeps PoE+ power maintained during a switch reload
- IEEE 802.3af PoE and 802.3at PoE+ (up to 30W per port) with dynamic power allocation
- On-box web UI for day-zero provisioning, configuration, monitoring and troubleshooting
- Bluetooth over-the-air management via an external USB dongle
- Supported by Cisco DNA Center, Cisco Prime Infrastructure and Cisco Network Plug and Play
- 802.1X, MAC authentication bypass, Web Authentication, port-based ACLs, BPDU Guard and IP Source Guard
- RSTP, MSTP, PVRST+ and Link State Tracking for resiliency
- Eight egress queues per port with Auto-QoS, DSCP mapping and 802.1p CoS

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ethernet ports: 24 x 10/100/1000 PoE+
- Uplink ports: 4 x 10G SFP+
- PoE budget: 195W
- Forwarding bandwidth: 64 Gbps (10G uplinks)
- Switching bandwidth: 128 Gbps (10G uplinks)
- Fanless: Yes
- CPU: ARMv7 800 MHz
- DRAM: 512 MB
- Flash memory: 256 MB
- Unicast MAC addresses: 16000
- Maximum active VLANs: 256
- VLAN IDs available: 4094
- Jumbo Ethernet frame: 10,240 bytes
- Console ports: 1 x RJ45 Ethernet, 1 x USB mini-B, 1 x USB-A
- Dimensions (H x D x W): 4.4 x 26.5 x 44.5 cm
- Weight: 3.35 kg
- Input voltage: 110 to 220 V AC auto-ranging, 50 to 60 Hz
- Typical power consumption (10G uplinks, PoE, weighted average): 21.2 W
- Operating temperature (up to 1500 m): -5 to 45 C
- Operating temperature (up to 3000 m): -5 to 40 C
- Storage temperature: -25 to 70 C
- MTBF (PoE): 909,838 hours

FAQs

Q: Does this switch need a licence?
A: It runs an enhanced Cisco IOS LAN Lite base image without an additional licence. Optional term-based Cisco DNA Essentials licences enable Cisco DNA Center features such as Network Plug-and-Play, inventory and topology.

Q: How much PoE power does it provide?
A: It has a 195W PoE+ budget shared across the 24 ports, with up to 30W available on a single port. Power is supplied by a single fixed internal AC supply, 110 to 220 V AC auto-ranging.

Q: How is the Smart Managed model configured?
A: It is configured through an on-box web UI, with a limited CLI for troubleshooting and monitoring. It can also be managed over Bluetooth using an external USB dongle.

Q: What can the 10G SFP+ uplinks be used with?
A: The four SFP+ ports support a wide range of Cisco SFP+ and SFP optics. Check the Cisco Optics Compatibility tool for the exact part numbers.

Q: Which accessories are available for it?
A: Available accessories include the RCKMNT-1RU-2KX and RCKMNT-REC-2KX rack mounts, CAB-CONSOLE-RJ45 and CAB-CONSOLE-USB console cables, and the PWR-CLP power cord restraint clip.
