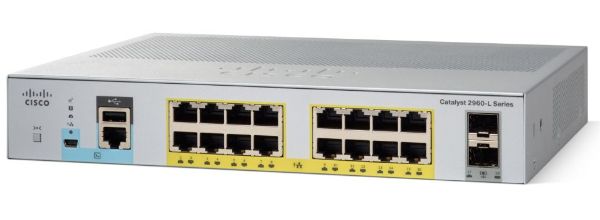

• Cisco WS-C2960L-SM-16TS switch with 16x 1G RJ45 ports
1 1

Cisco

Cisco WS-C2960L-SM-16TS | Catalyst 2960-L 16-Port Gigabit Switch, 2x 1G SFP, Smart Managed

WS-C2960L-SM-16TS

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-L is a fixed, fanless Gigabit Ethernet switch built for branch offices, small and medium-sized businesses, out-of-the-wiring-closet locations and IoT deployments that need simple, quick-to-deploy access switching. This Smart Managed (SM) model is configured through an on-box web interface, with limited CLI available for troubleshooting and monitoring.

It provides 16 non-PoE 10/100/1000 Ethernet ports and 2 x 1G SFP uplinks, with 18 Gbps of forwarding bandwidth and 36 Gbps of switching bandwidth. The switch supports 16,000 unicast MAC addresses, up to 256 active VLANs and a 10,240 byte jumbo frame size, and carries 512 MB of DRAM and 256 MB of flash. It runs an enhanced Cisco IOS LAN Lite image, and an external USB Bluetooth dongle in the USB-A port enables over-the-air management.

A single internal AC power supply with 110 to 220 V auto-ranging input powers the switch, and the fanless design keeps operation silent. It is managed with Cisco DNA Center, Cisco Prime Infrastructure and Cisco Network Plug and Play, and works with a wide range of Cisco SFP optics and the CAB-CONSOLE-RJ45 and CAB-CONSOLE-USB console cables.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Smart-managed operation with an on-box web UI for fast branch and small-office setup, plus limited CLI for troubleshooting and monitoring
- Runs an enhanced version of Cisco IOS LAN Lite software
- Bluetooth over-the-air management using an external USB Bluetooth dongle in the USB-A port
- Security features including 802.1X, MAB, Web authentication, port-based ACLs, BPDU Guard, IP Source Guard and TACACS+/RADIUS
- Resiliency with RSTP, MSTP, PVRST+, link state tracking and switch-port autorecovery
- QoS with up to eight egress queues, SRR scheduling, WTD congestion avoidance and Auto-QoS
- Energy efficiency through IEEE 802.3az EEE and Cisco EnergyWise
- Operational simplicity features such as Smart Install, Auto SmartPorts, AutoSecure, LACP/PAgP and IGMP/MLD snooping

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ethernet ports: 16 x 10/100/1000 (non-PoE)
- Uplink interfaces: 2 x 1G SFP
- Forwarding bandwidth: 18 Gbps
- Switching bandwidth: 36 Gbps
- Unicast MAC addresses: 16,000
- Maximum active VLANs: 256
- Jumbo Ethernet frame: 10,240 bytes
- DRAM: 512 MB
- Flash memory: 256 MB
- CPU: ARMv7 800 MHz
- Console ports: 1 x RJ45 Ethernet, 1 x USB mini-B, 1 x USB-A
- Fanless: Yes
- Input voltage: 110 to 220 V AC auto-ranging, 50 to 60 Hz
- Power consumption: 14.9 W at 0% traffic, 19.3 W at 100% traffic
- Dimensions (H x D x W): 4.4 x 21.5 x 26.8 cm
- Weight: 1.55 kg
- Operating temperature: -5 to 45 C (up to 1500 m)
- Storage temperature: -25 to 70 C
- MTBF: 2,416,689 hours

FAQs

Q: Does this switch need a licence to operate?
A: No licence is needed for base operation, as it runs the enhanced Cisco IOS LAN Lite image. Optional term-based Cisco DNA Essentials licences, such as C2960L-DNA-E-16=, enable Cisco DNA Center features like Network Plug-and-Play and software image management.

Q: Does the WS-C2960L-SM-16TS provide PoE?
A: No. This is a non-PoE model with 16 standard 10/100/1000 ports. It is powered by a single internal AC supply with 110 to 220 V auto-ranging input.

Q: Which console cables and mounting accessories work with it?
A: It works with the CAB-CONSOLE-RJ45 and CAB-CONSOLE-USB console cables, the PWR-CLP power cable clip, and the CMPCT-MGNT-TRAY, CMPCT-CBLE-GRD and CMPCT-DIN-MNT compact-switch mounting accessories.

Q: How is the switch configured and managed?
A: Smart Managed means setup is done through the on-box web interface, with limited CLI for troubleshooting. It can also be managed with Cisco DNA Center, Cisco Prime Infrastructure and Cisco Network Plug and Play, or over Bluetooth using an external USB dongle.

Q: What is the difference between the two SFP uplinks and the Ethernet ports?
A: The 2 x 1G SFP uplinks accept Cisco SFP optics for fibre links, while the 16 x 10/100/1000 ports are copper RJ45 ports for connecting end devices.
