Cisco

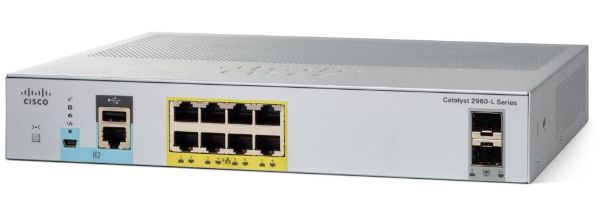

Cisco WS-C2960L-8PS-LL | Catalyst 2960-L 8-Port PoE+ Switch, 67W, LAN Lite

SKU:WS-C2960L-8PS-LL

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-L 8-port PoE+ switch is a fixed, fanless Gigabit Ethernet access switch built for branch offices, out-of-the-wiring-closet deployments and IoT environments. It runs an enhanced Cisco IOS LAN Lite image and is managed through the CLI or the on-box web UI, making it a good fit for small and medium-sized businesses that need dependable PoE access switching without the noise of a fan.

There are 8 x 10/100/1000 PoE+ ports (IEEE 802.3af and 802.3at, up to 30W per port) sharing a 67W PoE budget, plus 2 x 1G SFP uplinks. Forwarding bandwidth is 10 Gbps and switching bandwidth is 20 Gbps, backed by 512 MB DRAM and 256 MB flash. It supports 256 active VLANs, 16,000 unicast MAC addresses and jumbo frames up to 10,240 bytes. This is the LAN Lite, CLI-managed variant, distinct from the Smart Managed WS-C2960L-SM-8PS.

The 2 SFP uplinks accept a wide range of Cisco SFP optics. The compact 8-port chassis pairs with the CMPCT-MGNT-TRAY magnetic mounting tray, CMPCT-CBLE-GRD cable guard and CMPCT-DIN-MNT DIN rail mount, and can be managed with Cisco DNA Center, Cisco Prime Infrastructure and Cisco Network Plug and Play.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Perpetual PoE+ keeps PoE power maintained during a switch reload
- Enhanced Cisco IOS LAN Lite software with CLI and on-box web UI management
- Bluetooth over-the-air management via external USB dongle
- 802.1X, flexible authentication, BPDU Guard, IP Source Guard, port-based ACLs and TACACS+/RADIUS
- RSTP, MSTP, PVRST+ and Link State Tracking for resilience
- Up to eight egress queues per port with Auto-QoS and SRR scheduling
- IEEE 802.3az Energy Efficient Ethernet and Cisco EnergyWise
- Cisco Smart Install, Auto SmartPorts and AutoSecure for simple deployment

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ethernet ports: 8 x 10/100/1000 PoE+
- Uplink interfaces: 2 x 1G SFP
- Available PoE power: 67W
- PoE standards: IEEE 802.3af and 802.3at (up to 30W per port)
- Cooling: Fanless
- Forwarding bandwidth: 10 Gbps
- Switching bandwidth: 20 Gbps
- CPU: ARMv7 800 MHz
- DRAM: 512 MB
- Flash memory: 256 MB
- Unicast MAC addresses: 16000
- Maximum active VLANs: 256
- VLAN IDs available: 4094
- Maximum STP instances: 64
- Maximum SPAN sessions: 4
- Jumbo Ethernet frame: 10,240 bytes
- Console ports: 1 x RJ45 Ethernet, 1 x USB mini-B, 1 x USB-A
- Input voltage: 110 to 220V AC auto-ranging, 50 to 60 Hz
- Power consumption at 100% traffic (PoE): 22.0 W
- Dimensions (H x D x W): 4.4 x 24 x 26.8 cm (1.73 x 9.45 x 10.56 in)
- Weight: 2.04 kg (4.50 lb)
- Operating temperature (up to 1500 m): -5 to 45 C
- MTBF (data): 2,448,133 hours

FAQs

Q: Does this switch need a licence?
A: It runs an enhanced Cisco IOS LAN Lite image out of the box. Optional term-based Cisco DNA Essentials licences (C2960L-DNA-E-8=) are needed for Cisco DNA Center and Network Plug and Play features.

Q: How much PoE power does it provide?
A: It provides a 67W PoE budget shared across the 8 ports, supporting IEEE 802.3af and 802.3at with up to 30W on a single port.

Q: What optics work in the SFP uplinks?
A: The 2 x 1G SFP uplinks support a wide range of Cisco SFP optics for Gigabit Ethernet, as listed in the Cisco Optics Compatibility tables.

Q: How does it differ from the WS-C2960L-SM-8PS?
A: This LAN Lite model is CLI-managed, while the WS-C2960L-SM-8PS is the Smart Managed variant of the same 8-port PoE+ hardware.

Q: What mounting options are available for the 8-port model?
A: The compact 8-port chassis uses the CMPCT-MGNT-TRAY magnetic tray, CMPCT-CBLE-GRD cable guard or CMPCT-DIN-MNT DIN rail mount. The 1RU rack kits are for the 24- and 48-port models only.
