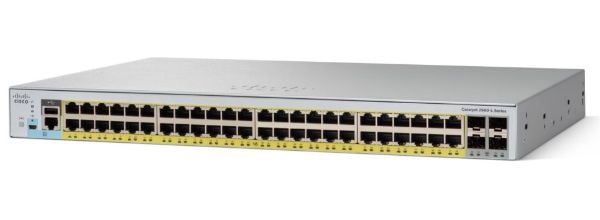

• Cisco WS-C2960L-48TS-LL 48-port silver switch with 1G SFP uplinks
1 1

Cisco

Cisco WS-C2960L-48TS-LL | Catalyst 2960-L 48-Port Gigabit Switch, 4x 1G SFP, LAN Lite

WS-C2960L-48TS-LL

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-L is a fixed-configuration, fanless, fully managed Gigabit Ethernet access switch built for branch offices, out-of-the-wiring-closet deployments, critical IoT installations and small to medium-sized businesses.

This 48-port non-PoE model provides 48 x 10/100/1000 Ethernet ports with 4 x 1G SFP uplinks, delivering 52 Gbps of forwarding bandwidth and 104 Gbps of switching bandwidth. It runs the enhanced Cisco IOS LAN Lite image and supports 256 active VLANs, 16,000 unicast MAC addresses and 10,240-byte jumbo frames. A single fixed internal AC supply accepts 110 to 220 V AC auto-ranging, with typical consumption of roughly 24 to 34 W. Optional term-based Cisco DNA Essentials licences, for example C2960L-DNA-E-48-3Y, 5Y or 7Y, enable Cisco DNA Center features and are managed through Cisco Smart Accounts.

It pairs with the 1RU rack mount kits RCKMNT-1RU-2KX and RCKMNT-REC-2KX, the console cables CAB-CONSOLE-RJ45 and CAB-CONSOLE-USB, and a wide range of Cisco SFP optics. Management is available through Cisco DNA Center, Cisco Prime Infrastructure and Cisco Network Plug and Play.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Line-rate Gigabit Ethernet forwarding on all data ports
- Enhanced Cisco IOS LAN Lite with CLI and on-box Web UI
- Bluetooth over-the-air management via external USB dongle
- 802.1X, MAB, Web Authentication, port-based ACLs, SSH and SNMPv3
- BPDU Guard, IP Source Guard and Spanning-Tree Root Guard
- RSTP, MSTP, PVST+, LACP, PAgP and Link State Tracking
- QoS with 8 egress queues per port, Auto-QoS and 802.1p CoS
- IEEE 802.3az Energy Efficient Ethernet and Cisco EnergyWise

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ethernet ports: 48 x 10/100/1000 (non-PoE)
- Uplink interfaces: 4 x 1G SFP
- PoE: None (non-PoE model)
- Cooling: Fanless
- Forwarding bandwidth: 52 Gbps
- Switching bandwidth: 104 Gbps
- CPU: ARMv7 800 MHz
- DRAM: 512 MB
- Flash memory: 256 MB
- Console ports: 1 x RJ45 Ethernet, 1 x USB mini-B, 1 x USB-A
- Unicast MAC addresses: 16000
- Maximum active VLANs: 256
- VLAN IDs available: 4094
- Jumbo Ethernet frame: 10,240 bytes
- Maximum SPAN sessions: 4
- Input voltage: 110 to 220 V AC auto-ranging, 50 to 60 Hz
- Power consumption: 24.36 W at 0% traffic, 33.6 W at 100% traffic
- Operating temperature: -5 to 45 C (up to 1500 m)
- Dimensions (H x D x W): 4.4 x 24 x 44.5 cm
- Weight: 2.98 kg
- MTBF: 1,370,769 hours

FAQs

Q: Does this switch provide PoE?
A: No. The WS-C2960L-48TS-LL is a non-PoE model, so it does not supply power to connected devices. PoE variants of the 2960-L are available as separate SKUs.

Q: What software image does it run?
A: It ships with the enhanced Cisco IOS LAN Lite image. Optional term-based Cisco DNA Essentials licences for 48-port models (C2960L-DNA-E-48-3Y, 5Y or 7Y) add Cisco DNA Center features.

Q: What are the 4 uplinks and which optics work in them?
A: The four uplinks are 1G SFP ports. They accept a wide range of Cisco Gigabit SFP optics listed in the Cisco Optics Compatibility tables.

Q: Which rack mount kit and console cables does it use?
A: It uses the 1RU rack mount kits RCKMNT-1RU-2KX or RCKMNT-REC-2KX. For console access, use CAB-CONSOLE-RJ45 or CAB-CONSOLE-USB.

Q: How is the switch managed?
A: It can be managed through the CLI, the on-box web UI, Cisco DNA Center, Cisco Prime Infrastructure or Cisco Network Plug and Play. An external USB Bluetooth dongle also enables wireless console access.
