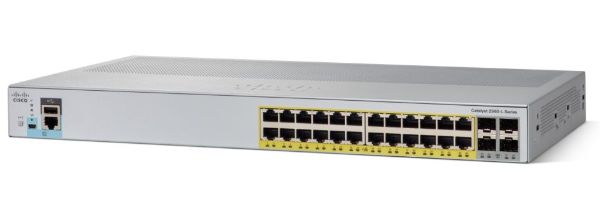

• Cisco WS-C2960L-24TS-LL 24-port 1G switch with 4x1G SFP uplinks, silver-black design
1 1

Cisco

Cisco WS-C2960L-24TS-LL | Catalyst 2960-L 24-Port Gigabit Switch, 4x 1G SFP, LAN Lite

WS-C2960L-24TS-LL

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-L is a fixed, fully managed Layer 2 Gigabit Ethernet access switch built for branch offices, out-of-wiring-closet deployments, IoT and small to medium-sized business networks. This LAN Lite model has no PoE and uses a fanless design, so it runs silently where noise matters.

It provides 24 x 10/100/1000 Ethernet ports plus 4 x 1G SFP uplink ports, with 28 Gbps forwarding bandwidth and 56 Gbps switching bandwidth. It supports 16,000 unicast MAC addresses, 4094 VLAN IDs with 256 active VLANs, and jumbo frames up to 10,240 bytes. Hardware includes an 800 MHz ARMv7 CPU, 512 MB DRAM and 256 MB flash memory. The enhanced Cisco IOS LAN Lite image is managed through the CLI or the on-box Web UI, and Bluetooth management is available using an external USB dongle. Optional term-based Cisco DNA Essentials licences add Cisco DNA Center features such as Network Plug and Play and software image management.

The 1RU chassis measures 4.4 x 24 x 44.5 cm and draws 16.5 W at idle and about 23.6 W at full traffic from a fixed internal AC supply. It accepts a wide range of Cisco SFP optics, and the RCKMNT-1RU-2KX and RCKMNT-REC-2KX rack mounts are available for 1RU or recessed installation.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Enhanced Cisco IOS LAN Lite software with CLI and on-box Web UI
- Bluetooth over-the-air management via external USB dongle
- 802.1X, port-based ACLs, BPDU Guard, IP Source Guard, SSHv2, TACACS+ and RADIUS security
- RSTP, MSTP, PVRST+, link state tracking and switch-port autorecovery for resiliency
- QoS with up to eight egress queues, SRR scheduling, auto-QoS and DSCP/CoS mapping
- IEEE 802.3az Energy Efficient Ethernet and Cisco EnergyWise
- Cisco Smart Install, Auto SmartPorts and AutoSecure for simplified operations
- IGMP and MLD snooping, storm control, voice VLAN, LACP/PAgP and UDLD

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ethernet ports: 24 x 10/100/1000
- Uplink ports: 4 x 1G SFP
- PoE: None (non-PoE model)
- Forwarding bandwidth: 28 Gbps
- Switching bandwidth: 56 Gbps
- CPU: ARMv7 800 MHz
- DRAM: 512 MB
- Flash memory: 256 MB
- Unicast MAC addresses: 16,000
- VLAN IDs: 4094, 256 active VLANs
- Maximum STP instances: 64
- Maximum SPAN sessions: 4
- Jumbo frame size: 10,240 bytes
- Console ports: 1 x RJ45 Ethernet, 1 x USB mini-B, 1 x USB-A
- Cooling: Fanless
- Input voltage: 110 to 220 V AC auto-ranging, 50 to 60 Hz
- Power consumption: 16.5 W at 0% traffic, 23.64 W at 100% traffic
- Operating temperature: -5 to 45 C up to 1500 m
- Dimensions (H x D x W): 4.4 x 24 x 44.5 cm
- Weight: 2.74 kg
- Form factor: 1RU

FAQs

Q: Does this switch support PoE?
A: No. This is a non-PoE model with 24 x 10/100/1000 data ports, so it does not provide a PoE budget. It runs from a single fixed internal AC power supply.

Q: Does it need a licence or subscription?
A: It runs the enhanced Cisco IOS LAN Lite image with its base licence capabilities. Optional term-based Cisco DNA Essentials licences, such as C2960L-DNA-E-24= and the 3, 5 and 7-year variants, are needed only for Cisco DNA Center features like Network Plug and Play, discovery, inventory and topology.

Q: What can I use in the SFP uplink ports?
A: The 4 x 1G SFP uplink ports accept a wide range of Cisco SFP optics. Check the Cisco Optics Compatibility tool for the specific module you plan to use.

Q: How can I mount it?
A: The RCKMNT-1RU-2KX 1RU rack mount and the RCKMNT-REC-2KX recessed rack mount suit 24-port models. The CMPCT- compact-switch mounts apply only to 8 and 16-port models.

Q: How is this switch managed?
A: It can be managed through the CLI or the on-box Web UI, plus Cisco DNA Center, Cisco Prime Infrastructure and Cisco Network Plug and Play. Bluetooth console access is also available using an external USB dongle.
