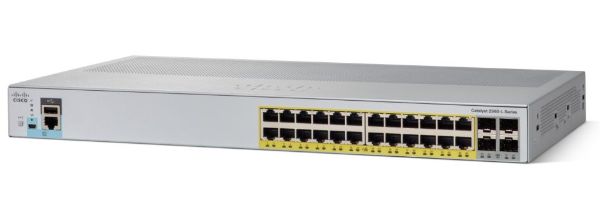

• Cisco WS-C2960L-24TQ-LL switch with 24x 1G ports and 4x 10G SFP+ uplinks
1 1

Cisco

Cisco WS-C2960L-24TQ-LL | Catalyst 2960-L 24-Port Gigabit Switch, 4x 10G SFP+, LAN Lite

WS-C2960L-24TQ-LL

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-L is a fixed-configuration, fanless, managed Layer 2 Gigabit Ethernet access switch running Cisco IOS LAN Lite. This 24-port non-PoE model suits branch offices, out-of-the-wiring-closet applications, critical IoT deployments and small to medium-sized businesses that need quiet, reliable access switching.

It provides 24 10/100/1000 Ethernet ports with line-rate Gigabit forwarding, plus 4 fixed SFP+ uplinks that accept 1G or 10G optics. Forwarding bandwidth is 28 Gbps at 1G and 64 Gbps at 10G uplink speeds, switching bandwidth is 56 Gbps and 128 Gbps respectively, and forwarding rate is 41.67 Mpps. It supports 8000 unicast MAC addresses, 64 active VLANs from 4094 VLAN IDs and jumbo frames up to 10,240 bytes. Fanless operation keeps it silent at up to 45 C, with a typical draw of about 21 W from a single fixed internal AC supply.

The LAN Lite feature set (the -LL suffix) covers advanced Layer 2 and basic Layer 3 features such as static routing and RIP, with no subscription needed to operate. Management is available through the web UI, CLI, SNMP, RJ45 or USB console, Bluetooth console access and virtual stacking, with Cisco Prime, Network Plug and Play and Cisco DNA Center support.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Line-rate Gigabit Ethernet forwarding on all 24 access ports
- 4 fixed SFP+ uplinks supporting 1G and 10G optics
- Cisco IOS LAN Lite with advanced Layer 2 and basic Layer 3 features, including static routing and RIP
- Management via web UI, CLI, SNMP, RJ45 or USB console, Bluetooth console access and virtual stacking
- Cisco Prime, Network Plug and Play and Cisco DNA Center support
- Security features including 802.1X, SPAN and BPDU Guard
- Fanless, silent operation at up to 45 C
- Compact 24 cm depth suits shallow cabinets and wall-mounted deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Access ports: 24 x 10/100/1000 Ethernet
- PoE: None (non-PoE)
- Uplinks: 4 x SFP+ (1G/10G)
- Software: Cisco IOS LAN Lite
- Forwarding bandwidth: 1G 28 Gbps, 10G 64 Gbps
- Switching bandwidth: 1G 56 Gbps, 10G 128 Gbps
- Forwarding rate: 41.67 Mpps (64-byte L3 packets)
- CPU: ARMv7 800 MHz
- DRAM: 512 MB
- Flash memory: 256 MB
- Unicast MAC addresses: 8000
- Active VLANs: 64 (4094 VLAN IDs available)
- Jumbo Ethernet frame: 10,240 bytes
- Console ports: 1 x RJ45 Ethernet, 1 x USB mini-B, 1 x USB-A
- Cooling: Fanless
- Operating temperature: -5 to 45 C up to 1500 m, -5 to 40 C up to 3000 m
- Input voltage: 110 to 220 V AC auto-ranging, 50 to 60 Hz
- Power consumption: 21.06 W weighted average with 1G uplinks, 23.64 W at 100% traffic
- Dimensions (H x D x W): 4.4 x 24 x 44.5 cm
- Weight: 2.75 kg
- MTBF: 2,412,947 hours

FAQs

Q: Does this switch require a licence or subscription to operate?
A: No. It runs the Cisco IOS LAN Lite feature set, as indicated by the -LL suffix, and needs no subscription to operate. Optional term-based Cisco DNA Essentials licences are available for Cisco DNA Center features.

Q: Does the WS-C2960L-24TQ-LL support PoE?
A: No. This is a non-PoE model and provides no PoE budget. Powered devices such as access points or IP phones need a PoE injector or a PoE-capable switch.

Q: What optics do the uplink ports accept?
A: The 4 SFP+ uplink ports accept 1G SFP and 10G SFP+ optics, so they can be used for either Gigabit or 10G uplinks.

Q: How is this switch powered?
A: It has a single fixed internal AC power supply with auto-ranging 110 to 220 V AC input at 50 to 60 Hz. Typical draw is about 21 W, rising to 23.64 W at 100% traffic.

Q: How does this model differ from other Catalyst 2960-L switches?
A: This SKU has 24 non-PoE Gigabit ports, 4 x 10G SFP+ uplinks and the LAN Lite software feature set, which separates it from PoE variants and from models with 1G SFP uplinks.
