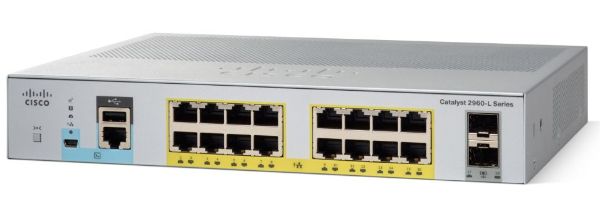

Cisco WS-C2960L-16TS-LL | Catalyst 2960-L 16-Port Gigabit Switch, 2x SFP, LAN Lite
SKU:WS-C2960L-16TS-LL
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Catalyst 2960-L is a fixed, fanless Layer 2 managed Gigabit Ethernet access switch for branch offices, out-of-the-wiring-closet deployments, critical IoT installations and small to medium-sized businesses. This model is non-PoE and runs the enhanced Cisco IOS LAN Lite feature set.
It provides 16 x 10/100/1000 Ethernet ports and 2 x 1G SFP uplink ports. Forwarding bandwidth is 18 Gbps and switching bandwidth is 36 Gbps, with 16,000 unicast MAC addresses, 256 active VLANs and 4094 VLAN IDs. Memory is 512 MB DRAM and 256 MB flash, and jumbo frames up to 10,240 bytes are supported. Power draw is typically 14.9 W at 0% traffic and 19.3 W at 100% traffic from a single fixed internal AC supply (110 to 220 V AC auto-ranging). With a depth under 11.5 inches and no fan, it suits quiet, space-constrained locations.
The SFP uplinks accept 1G SFP optics listed in the Cisco Optics Compatibility tables. Compact-form-factor accessories include a magnetic mounting tray (CMPCT-MGNT-TRAY), cable guard (CMPCT-CBLE-GRD) and DIN rail mount (CMPCT-DIN-MNT). Optional Cisco DNA Essentials term licences add Cisco DNA Center features.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Enhanced Cisco IOS LAN Lite software with CLI and on-box web UI management
- 802.1X, MAC authentication bypass, Web Authentication, port-based ACLs, BPDU Guard and IP Source Guard
- RSTP, MSTP and PVRST+ spanning tree with Link State Tracking
- QoS with up to eight egress queues per port, Auto-QoS and DSCP mapping
- LACP and PAgP link aggregation, IGMP and MLD snooping, storm control, voice VLAN and UDLD
- Cisco Smart Install, Auto SmartPorts and AutoSecure for simplified deployment
- IEEE 802.3az Energy Efficient Ethernet and Cisco EnergyWise
- Management with Cisco Prime Infrastructure, Network Plug and Play and Cisco DNA Center
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ethernet ports: 16 x 10/100/1000 (non-PoE)
- Uplink ports: 2 x 1G SFP
- Cooling: Fanless
- Forwarding bandwidth: 18 Gbps
- Switching bandwidth: 36 Gbps
- Unicast MAC addresses: 16,000
- DRAM: 512 MB
- Flash memory: 256 MB
- CPU: ARMv7 800 MHz
- Maximum active VLANs: 256
- VLAN IDs available: 4094
- Maximum STP instances: 64
- Maximum SPAN sessions: 4
- Jumbo Ethernet frame: 10,240 bytes
- Console ports: 1 x RJ45 Ethernet, 1 x USB mini-B, 1 x USB-A
- Input voltage: 110 to 220 V AC auto-ranging, 50 to 60 Hz
- Power consumption: 14.9 W at 0% traffic, 19.3 W at 100% traffic
- Operating temperature: -5 to 45 C up to 1500 m, -5 to 40 C up to 3000 m
- Dimensions (H x D x W): 4.4 x 21.5 x 26.8 cm
- Weight: 1.55 kg
- MTBF: 2,416,689 hours
FAQs
Q: Does this switch need a licence to operate?
A: No. It ships with the enhanced Cisco IOS LAN Lite feature set. Optional term-based Cisco DNA Essentials licences add Cisco DNA Center features, and licences are also required to use Cisco Prime Infrastructure, Network Plug and Play or Cisco DNA Center.
Q: Does it support PoE?
A: No. This is a non-PoE model with no PoE budget. It is powered by a single fixed internal AC supply, 110 to 220 V AC auto-ranging.
Q: What optics work in the SFP uplinks?
A: The two uplink ports accept 1G SFP optics listed in the Cisco Optics Compatibility tables.
Q: Can it be rack mounted?
A: The 1RU rack-mount kits are listed for 24- and 48-port models only. This 16-port model uses the compact-series accessories: magnetic mounting tray (CMPCT-MGNT-TRAY), cable guard (CMPCT-CBLE-GRD) and DIN rail mount (CMPCT-DIN-MNT).
Q: How is the switch managed?
A: Through the CLI, the on-box web UI (Cisco Configuration Professional), SNMP, and RJ45 or USB console ports. An external USB Bluetooth dongle also enables wireless console access.
