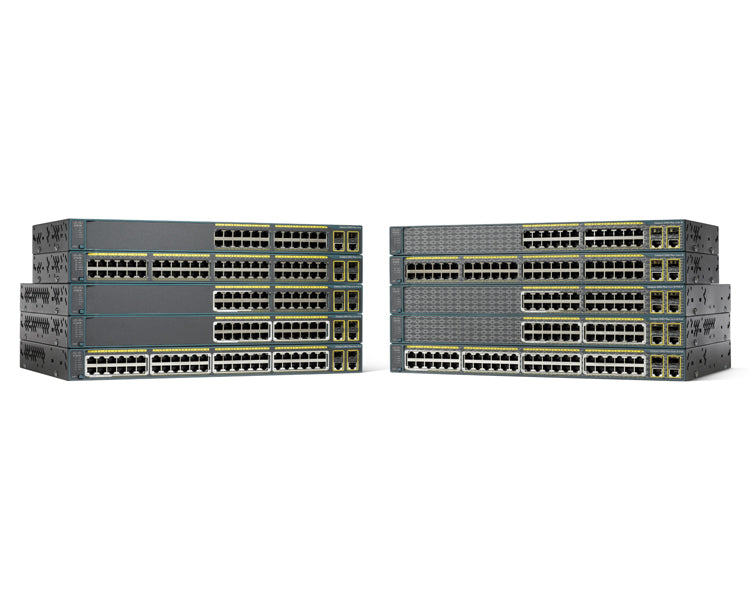

Cisco WS-C2960+24TC-S | Catalyst 2960-Plus 24-Port Fast Ethernet Switch, LAN Lite
SKU:WS-C2960+24TC-S
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Catalyst 2960-Plus 24TC-S is a fixed-configuration Layer 2 Fast Ethernet switch for branch offices, remote sites and retail locations, as well as conventional desktop workspaces and basic building infrastructure access. It runs the LAN Lite IOS feature set and is a non-PoE model.
It provides 24 x 10/100 Fast Ethernet ports and 2 dual-purpose Gigabit uplinks that accept either SFP modules or 1000BASE-T copper. Forwarding bandwidth is 16 Gbps with a forwarding rate of 6.5 Mpps for 64-byte Layer 3 packets. It supports up to 64 active VLANs from a pool of 4K VLAN IDs, with 64 MB of flash and 128 MB of DRAM. The -S suffix denotes LAN Lite, a reduced-functionality feature set tied to this model that cannot be upgraded to LAN Base. No separate licence or subscription is required.
Power comes from an internal auto-ranging AC supply, 100 to 240 VAC, with measured draw of about 18.8 W. The optional Cisco RPS 2300 (PWR-RPS2300) can provide redundant power through the RPS port. The 1RU chassis is rack-mountable and weighs 3.6 kg. The uplinks accept Cisco SFP modules, and console access uses the CAB-CONSOLE-RJ45 cable.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Enterprise-class Layer 2 switching for branch offices, desktop workspaces and infrastructure access
- Cisco Catalyst SmartOperations (Smart Install, Auto Smartports, Smart Troubleshooting) for simplified deployment
- Cisco EnergyWise technology to monitor and manage the energy use of connected devices
- Security features including Flexible Authentication, 802.1X Monitor Mode, RADIUS CoA, Port Security, Dynamic ARP Inspection, IP Source Guard and Private VLAN Edge
- QoS with 4 egress queues per port, strict priority queuing, SRR scheduling, WTD congestion avoidance and up to 64 policers per port
- Optional Cisco RPS 2300 (PWR-RPS2300) redundant power system support
- Managed through the CLI, SNMP and Cisco Prime Infrastructure
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- 10/100 Ethernet ports: 24
- Uplink ports: 2 dual-purpose (SFP or 1000BASE-T)
- IOS feature set: LAN Lite
- PoE: None (non-PoE model)
- Forwarding bandwidth: 16 Gbps
- Forwarding rate (64-byte L3 packets): 6.5 Mpps
- Active VLANs: up to 64
- VLAN IDs available: 4K
- Flash memory: 64 MB
- DRAM: 128 MB
- MTU (L3 packet): 9000 bytes
- Jumbo frame: 9018 bytes
- Dimensions (H x W x D): 4.4 x 45.0 x 24.2 cm
- Weight: 3.6 kg
- Form factor: 1RU rack-mountable
- Input voltage: 100 to 240 VAC autoranging, 50 to 60 Hz
- Input current: 0.4 to 0.2 A
- Power consumption: 18.8 W (ATIS weighted average)
- Redundant power input (RPS): 2A at 12V
- Operating temperature up to 1500 m: -5 to 45 C
- Operating humidity: 10% to 95% noncondensing
- Acoustic noise, sound pressure (typical/maximum): 33 / 36 dBA
- MTBF: 667,000 hours
FAQs
Q: Does this switch need a separate licence?
A: No. It ships with the LAN Lite IOS feature set, which is tied to the model and requires no separate licence or subscription. LAN Lite cannot be upgraded to LAN Base.
Q: Does it provide PoE?
A: No. This is a non-PoE model, so connected devices such as IP phones or access points need their own power source.
Q: What can I use in the two uplink ports?
A: The two dual-purpose Gigabit uplinks accept either Cisco SFP modules or 1000BASE-T copper connections. Refer to Cisco's Transceiver Compatibility Matrix for supported SFP modules.
Q: How many VLANs does the LAN Lite feature set support?
A: LAN Lite -S models support up to 64 active VLANs, selected from 4K available VLAN IDs.
Q: Can it be powered redundantly?
A: Yes. The optional Cisco RPS 2300 (PWR-RPS2300) connects to the RPS port to provide redundant power. It is the only redundant power option for this model.
