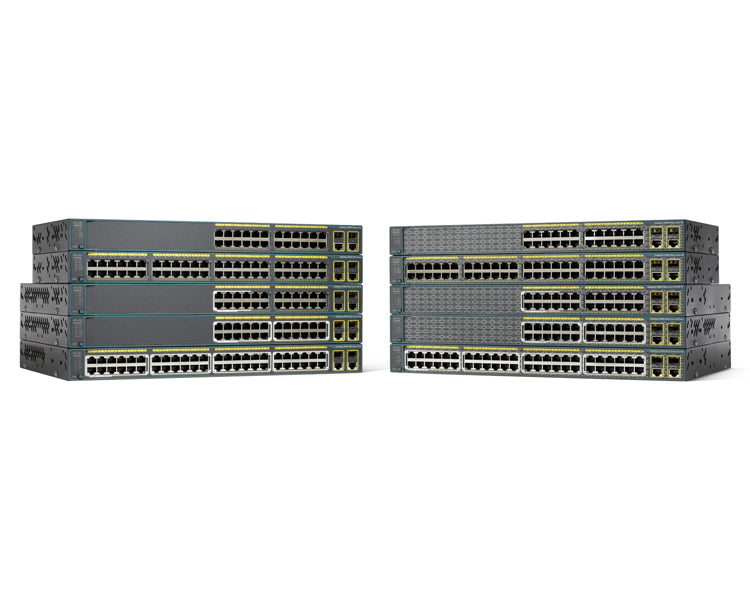

Cisco WS-C2960+24PC-S | Catalyst 2960-Plus 24-Port PoE Switch, 370W, LAN Lite
SKU:WS-C2960+24PC-S
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Catalyst 2960-Plus 24PC-S is a fixed-configuration Fast Ethernet Layer 2 switch with 24 IEEE 802.3af PoE ports and two dual-purpose Gigabit uplinks. It suits branch offices, remote sites and retail locations, as well as conventional desktop workspaces with IP phones and PoE access points, and building infrastructure or physical security applications with basic requirements.
The 24 10/100 ports share a 370W PoE budget, with up to 15.4W available per port. The two dual-purpose uplinks accept SFP modules or 1000BASE-T. Forwarding bandwidth is 16 Gbps with a forwarding rate of 6.5 Mpps, and it supports up to 64 active VLANs from a pool of 4K VLAN IDs. This SKU runs the LAN Lite Cisco IOS feature set, which is tied to the -S model and is not upgradeable to LAN Base. Typical power consumption is about 35 W.
An optional Cisco RPS 2300 (PWR-RPS2300) can be connected through the RPS connector for redundant power. The 1RU chassis measures 4.4 x 45.0 x 33.2 cm and mounts in a standard rack.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Layer 2 switching for branch offices, workspaces and infrastructure applications
- IEEE 802.3af Power over Ethernet with intelligent power management across ports
- Smart Install zero-touch deployment, Auto Smartports and Smart Call Home
- Cisco EnergyWise to monitor and manage energy use of connected devices
- Security features including Flexible Authentication, 802.1x Monitor Mode, Port Security, Dynamic ARP Inspection and IP Source Guard
- QoS with four egress queues per port, strict priority queuing, SRR scheduling and 802.1p CoS and DSCP classification
- IPv6 support and a broad SNMP MIB set, managed through Cisco Prime Infrastructure
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Model: Catalyst 2960-Plus 24PC-S (WS-C2960+24PC-S)
- 10/100 Ethernet interfaces: 24
- Uplink interfaces: 2 dual-purpose (SFP or 1000BASE-T)
- Cisco IOS Software feature set: LAN Lite
- Available PoE power: 370W
- PoE standard: IEEE 802.3af, up to 15.4W per port on 24 ports
- Flash memory: 64 MB
- DRAM: 128 MB
- Forwarding bandwidth: 16 Gbps
- Forwarding rate (64-byte L3 packets): 6.5 Mpps
- Maximum active VLANs: 64
- VLAN IDs available: 4K
- Maximum transmission unit (L3 packet): 9000 bytes
- Jumbo frame (Ethernet frame): 9018 bytes
- Dimensions (H x W x D): 4.4 x 45.0 x 33.2 cm (1RU)
- Weight: 5.4 kg
- Operating temperature up to 1500 m: -5 to 45 C
- Operating temperature up to 3000 m: -5 to 40 C
- Storage temperature: -25 to 70 C
- Operating relative humidity: 10% to 95% non-condensing
- Input voltage: 100 to 240 VAC auto-ranging, 50 to 60 Hz
- Typical power consumption: approx. 35 W
- MTBF: 381,000 hours
- Redundant power: Cisco RPS 2300 (PWR-RPS2300) via RPS connector
FAQs
Q: Does this switch need a separate software licence?
A: No. It ships with the LAN Lite Cisco IOS feature set. LAN Lite (-S) models cannot be upgraded to LAN Base.
Q: How much PoE power does it provide?
A: It has a 370W PoE budget across its 24 IEEE 802.3af ports, with up to 15.4W available on each port.
Q: What can be connected to the uplink ports?
A: The two dual-purpose uplinks accept SFP modules or 1000BASE-T copper connections.
Q: Can it be powered redundantly?
A: Yes. The Cisco RPS 2300 (PWR-RPS2300) connects through the RPS connector to provide redundant power.
Q: How does this model differ from other 2960-Plus 24-port switches?
A: The 24PC-S variant offers 24 PoE ports with a 370W budget and the LAN Lite feature set, which supports up to 64 active VLANs.
