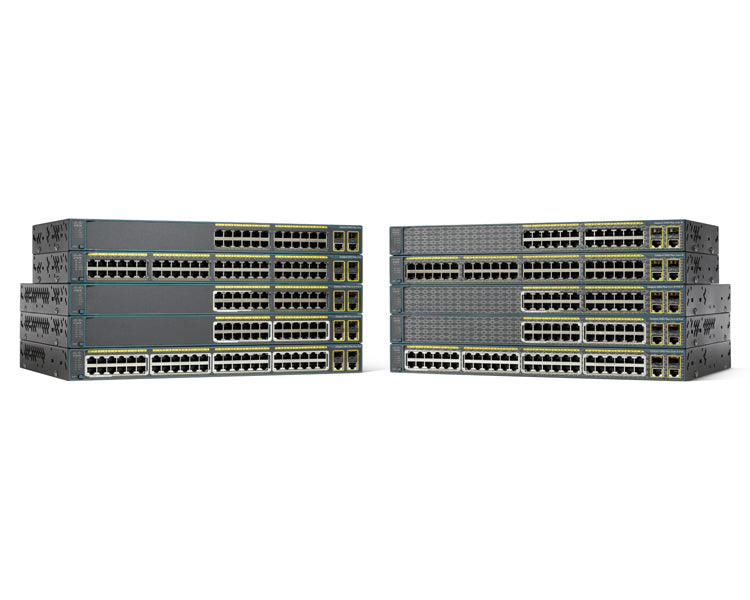

• Cisco WS-C2960+24LC-L switch with 24 FE ports, 8 PoE, 2 1G uplinks
1 1

Cisco

Cisco WS-C2960+24LC-L | Catalyst 2960-Plus 24-Port FE Switch, 8x PoE 123W, LAN Base

WS-C2960+24LC-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-Plus 24LC-L is a fixed-configuration Layer 2 Fast Ethernet switch built for branch offices, remote and retail sites, and desktop workspaces with IP phones and PoE access points. It also suits building infrastructure and physical security applications that need a small number of powered ports.

It provides 24 x 10/100 Ethernet ports and 2 dual-purpose uplinks that can run as SFP or 1000BASE-T. Eight of the access ports support IEEE 802.3af PoE at up to 15.4W each, drawing from a 123W PoE budget. Forwarding bandwidth is 16 Gbps with a 6.5 Mpps forwarding rate, and the switch supports 255 active VLANs from 4K VLAN IDs. It ships with the LAN Base Cisco IOS feature set, which is fixed to the model.

The 1RU chassis uses an internal auto-ranging AC supply and can be paired with the Cisco RPS 2300 for redundant power. Uplink SFP modules should follow Cisco's transceiver compatibility matrix, and the switch is supported in Cisco Prime Infrastructure.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 2 switching for branch offices, desktop workspaces and infrastructure applications
- Smart Install for zero-touch deployment, Auto Smartports and Smart Call Home troubleshooting
- Cisco EnergyWise to measure and manage power used by connected devices
- IEEE 802.3af PoE with intelligent power management for flexible allocation across ports
- Security features including Flexible Authentication, 802.1X Monitor Mode, Port Security, Dynamic ARP Inspection and IP Source Guard
- QoS with four egress queues per port, strict priority queuing and Shaped Round Robin scheduling
- Optional Cisco RPS 2300 redundant power system support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ethernet ports: 24 x 10/100
- Uplink ports: 2 x dual-purpose (SFP or 1000BASE-T)
- PoE: IEEE 802.3af on up to 8 ports, up to 15.4W each
- Available PoE power: 123W
- Cisco IOS feature set: LAN Base
- Forwarding bandwidth: 16 Gbps
- Forwarding rate (64-byte L3 packets): 6.5 Mpps
- Maximum active VLANs: 255
- VLAN IDs available: 4K
- MTU (L3 packet): 9000 bytes
- Jumbo frame (Ethernet frame): 9018 bytes
- Flash memory: 64 MB
- DRAM: 128 MB
- Dimensions (H x W x D): 4.4 x 45.0 x 33.2 cm (1RU)
- Weight: 4.5 kg
- Operating temperature up to 1500 m: -5 to 45 C
- Operating temperature up to 3000 m: -5 to 40 C
- Storage temperature: -25 to 70 C
- Operating and storage humidity: 10% to 95% noncondensing
- Input voltage: 100 to 240 VAC autoranging, 50 to 60 Hz
- Typical power consumption (ATIS weighted): 25.8 W
- Acoustic noise (sound pressure, typical/max): 43 / 46 dBA
- MTBF: 498,000 hours

FAQs

Q: Does this switch need a separate software licence?
A: No. It ships with the LAN Base Cisco IOS feature set, which is tied to the -L model. LAN Lite (-S) models cannot be upgraded to LAN Base.

Q: How much PoE power does it provide?
A: It has a 123W PoE budget shared across 8 IEEE 802.3af ports, each delivering up to 15.4W. The remaining 16 ports are standard non-PoE Fast Ethernet.

Q: What can I connect to the uplink ports?
A: The 2 uplinks are dual-purpose, so each can run as SFP or 1000BASE-T. SFP modules should match Cisco's transceiver compatibility matrix.

Q: Does it support redundant power?
A: Yes. It has an RPS port for the optional Cisco RPS 2300 (PWR-RPS2300), and only the RPS 2300 should be attached to that port.

Q: How does it differ from other 2960-Plus 24-port models?
A: This model has 24 Fast Ethernet ports with 8 PoE ports and a 123W budget, and runs LAN Base. Other models in the family vary in PoE capacity and feature set.
