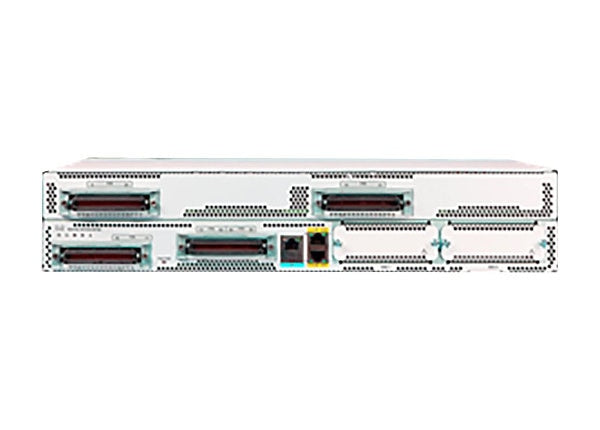

• Cisco VG420-132FXS/6FXO analog voice gateway with 2960X switch
1 1

Cisco

Cisco VG420-132FXS/6FXO | VG400 Analog Voice Gateway, 132 FXS, 6 FXO Bypass

VG420-132FXS/6FXO

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco VG420-132FXS/6FXO is a 2RU rack-mount analog voice gateway from the VG400 series, running Cisco IOS-XE. It connects analog phones, fax machines, modems and speakerphones to Cisco Unified Communications Manager or Unified CM Express, so sites can keep existing analog devices when moving to IP telephony. It also suits centralised, high-concentration deployments and can augment an ISR environment.

This variant provides 132 FXS ports, of which 108 are FXS-E enabled, plus 6 built-in FXO failover bypass ports that let designated FXS phones reach the PSTN if the chassis loses power. Two NIM slots accept analog and digital voice modules, and two 10/100/1000 RJ45 Ethernet ports allow link redundancy. It uses an Intel x86 multicore processor with 4 GB DDR4 DRAM and 8 GB fixed flash, and runs from 100-240 VAC auto-ranging power at up to 389 W.

Licensing is Smart Licensing only, with a Smart Account and Virtual Account required. The Unified Communication (UCK9) licence is included by default, and the Security and Cloud Calling licences are optional.

It requires Cisco IOS-XE 17.6.1 or later and works with Cisco Unified CM 14.0 (SU1) and 12.5 (SU4). Analog NIMs include FXO, FXS, E&M and BRI, and digital T1/E1 NIMs are supported. SIP trunking to third-party call control is also supported.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco IOS-XE based, with the familiar Cisco CLI and SNMPv3 management
- Toll-quality voice for analog phones, fax, modems and speakerphones
- Keeps existing analog devices in use when moving to IP telephony
- Two Gigabit Ethernet ports allow link redundancy
- FXO failover bypass lets designated FXS phones reach the PSTN during a power loss
- Optional integrated redundant power supply, with DC power supply options available
- Two NIM slots support analog (FXO, FXS, E&M, BRI) and digital T1/E1 modules
- Works with Cisco Unified CM and Unified CM Express, with SIP trunking to third-party call control

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Number of FXS ports: 132
- FXS-E enabled ports: 108
- Built-in FXO failover bypass ports: 6
- NIM slots: 2
- Ethernet: Two 10/100/1000 RJ45 LAN ports
- Console: RJ45 serial console and Micro USB console
- Processor: Intel x86 multicore SoC
- Memory: 4 GB DDR4 SDRAM
- Flash: 8 GB fixed
- AC input voltage: 100 to 240 VAC auto-ranging, 50 to 60 Hz
- AC input current (max): 8.2 A to 3.4 A
- Maximum power with AC power supply: 389 W
- Power dissipation (max): 109 W
- Redundant power supply: Optional integrated RPS
- Dimensions (H x W x D): 8.89 x 43.81 x 53.34 cm
- Mounting: 2RU, 19 in rack
- Operating temperature: 0 to 40 C
- Non-operating temperature: -40 to 70 C
- Operating humidity: 5 to 85%
- Software: Cisco IOS-XE 17.6.1 or later
- Licensing: Smart Licensing, UCK9 included by default

FAQs

Q: Does it need a licence?
A: It uses Smart Licensing only, so a Smart Account and Virtual Account are required. The Unified Communication (UCK9) licence is included by default. The Security licence (SL-VG420-SEC-K9) and Cloud Calling licence (FL-VG4XX-CC) are optional.

Q: What call control platforms does it work with?
A: It works with Cisco Unified Communications Manager 14.0 (SU1) and 12.5 (SU4), and with Cisco Unified CM Express on IOS-XE 17.6.1 or later. SIP trunking to third-party call control is also supported.

Q: Which NIM modules can be fitted?
A: The two NIM slots accept analog modules such as NIM-2FXO, NIM-4FXO, NIM-2FXSP, NIM-4FXSP, NIM-2FXS/4FXOP, NIM-4E/M, NIM-2BRI-NT/TE and NIM-4BRI-NT/TE. Digital T1/E1 modules such as NIM-1MFT-T1/E1 and NIM-2MFT-T1/E1 are also supported.

Q: What power does it need?
A: It runs from 100 to 240 VAC auto-ranging at 50 to 60 Hz, drawing up to 389 W. An optional integrated redundant power supply is available, and the PWR-VG420-650WAC and PWR-VG420-650WDC power supplies are options.

Q: How does this model differ from other VG420 variants?
A: This model has 132 FXS ports, of which 108 are FXS-E enabled, plus 6 built-in FXO failover bypass ports and 2 NIM slots. The VG420-144FXS and VG420-84FXS/6FXO share the same chassis family but offer different port counts.
