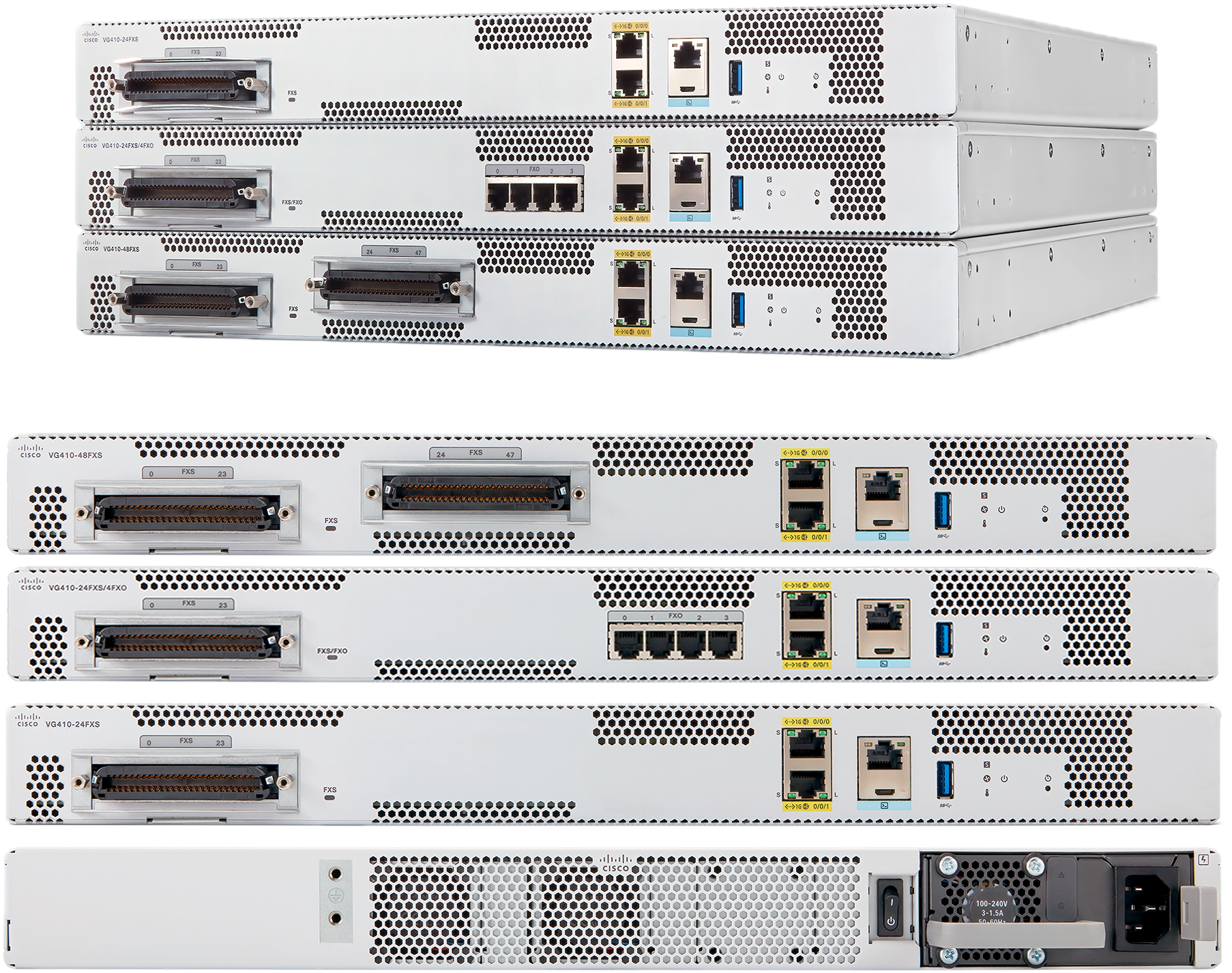

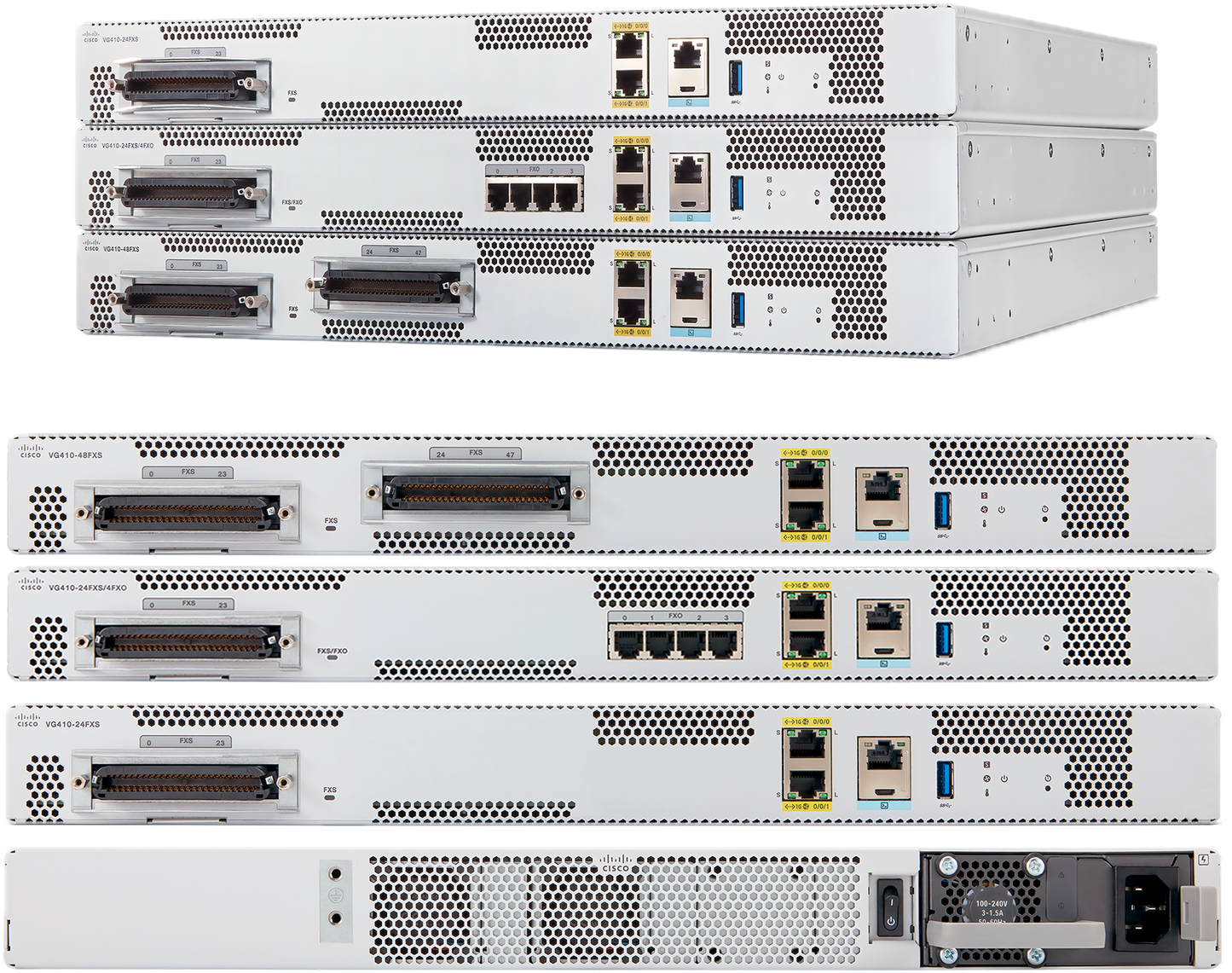

• Cisco VG410-48FXS analog voice gateway with ASR 9016 router
1 1

Cisco

Cisco VG410-48FXS | VG410 48-Port FXS Analog Voice Gateway, 2x GE

VG410-48FXS

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The VG410 is a 1RU, IOS-XE based medium-density analog voice gateway from the Cisco VG400 series. It connects existing analog phones, fax machines, modems and speakerphones to Cisco Unified Communications Manager, or to Webex Calling with the optional Cloud Calling licence. It suits centralised, highly concentrated sites that keep analog devices while moving to IP telephony.

This model provides 48 FXS ports on RJ21 female connectors, with no built-in FXO failover bypass ports, which separates it from the VG410-24FXS and VG410-24FXS/4FXO. Two 10/100/1000 RJ45 Ethernet LAN ports give link redundancy. An Intel x86 processor with 8 GB DDR4 SDRAM and 8 GB fixed flash runs Cisco IOS-XE 17.12.1 or later, with RJ45 serial and micro-USB console access. The internal AC supply accepts 100-240 VAC, draws a maximum of 138 W, and the chassis mounts in 19 in or 23 in racks.

Licensing is Smart Licensing only, and a Smart Account or Virtual Account is required when ordering. The Unified Communication licence is included by default, with optional Security and Cloud Calling licences. It works with Cisco UCM 14 SU3 and 15.0 (SU1) onwards, and supports third-party call control over SIP IP trunks.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco IOS-XE software-based gateway with uniform CLI and SNMPv3 support
- Two Gigabit Ethernet ports for link redundancy and high availability
- Multicore Intel processor with vDSP software DSP, replacing the PVDM4
- MGCP Fallback for availability at remote locations
- T.38 fax relay, fax pass-through, NSE-based modem pass-through and V.150.1 MER modem relay
- SRTP, SCCP/SIP over TLS 1.2/1.3, SSH v2, SCP, RADIUS and TACACS+ security
- Data sanitisation and Consent Token protection
- Webex Calling support with the Cloud Calling licence

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- FXS ports: 48 (RJ21 female connectors)
- FXO failover bypass ports: 0
- FXS-E enabled ports: 0-23
- Ethernet: 2x 10/100/1000 RJ45 LAN ports
- Processor: Intel x86
- Memory: 8 GB DDR4 SDRAM
- Flash: 8 GB fixed
- Console: RJ45 serial and micro-USB
- Signalling: SCCP, MGCP, SIP
- Codecs: G.711, G.726, G.729A, G.729AB, G.722
- Loop length: up to 1400 ohm; 11,000 ft (26 AWG), 18,000 ft (24 AWG), 30,000 ft (22 AWG)
- Software: Cisco IOS-XE 17.12.1 or later
- AC input: 100 to 240 VAC auto-ranging, 50 to 60 Hz, 3A to 1.5A
- Maximum power: 138 W
- Maximum power dissipation: 88 W
- Dimensions (H x W x D): 1.73 x 17.5 x 19.0 in
- Weight: 16.09 lb (7.30 kg)
- Mounting: 1RU, 19 in or 23 in rack
- Operating temperature: 0 to 40 C
- Operating humidity: 5 to 85%

FAQs

Q: Does the VG410-48FXS need a licence or Smart Account?
A: It uses Smart Licensing only, and a Smart Account or Virtual Account is mandatory when ordering. The Unified Communication licence is included by default. Optional Security and Cloud Calling licences are available, and Cloud Calling requires the Security licence to be installed first.

Q: Does it work with Webex Calling?
A: Yes. Webex Calling is supported with the optional Cloud Calling licence (FL-VG4XX-CC). The gateway also works with Cisco Unified Communications Manager and supports third-party SIP IP trunks.

Q: Which call control versions does it support?
A: It requires Cisco IOS-XE 17.12.1 or later and works with Cisco UCM 14 SU3 (without BAT) and 15.0 (SU1) onwards. It also works with UCME versions compatible with IOS-XE 17.12.1 or higher.

Q: How does it differ from the VG410-24FXS models?
A: The VG410-48FXS provides 48 FXS ports and has no built-in FXO failover bypass ports. The VG410-24FXS and VG410-24FXS/4FXO offer 24 FXS ports, with the latter adding FXO ports.

Q: Can it act as a CUBE, SRST or DSP farm?
A: No. CUBE, UCME, SRST and DSP farm functions are not natively supported and need an ISR 4000 or Catalyst 8300/8200 platform.

Q: What power does it need?
A: It has an internal AC supply that accepts 100-240 VAC at 50-60 Hz, with a maximum power draw of 138 W for the 48 FXS model.
