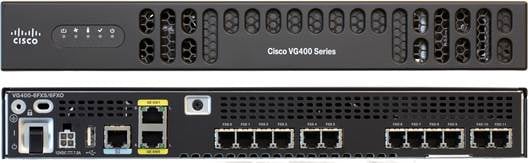

• Cisco VG400-8FXS analog voice gateway with 8 FXS ports and sleek black design
1 1

Cisco

Cisco VG400-8FXS | VG400 Analog Voice Gateway, 8x FXS, 2x GE

VG400-8FXS

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The VG400 is a Cisco IOS XE-based analog voice gateway that connects analog phones, fax machines, modems and speakerphones to a Cisco Unified Communications Manager based IP telephony system. It suits distributed and low- to medium-density deployments where existing analog endpoints need to stay in service while the organisation moves to IP telephony, including Webex Calling with the VG400 acting as an analog telephone adapter.

This VG400-8FXS model provides eight RJ-11 FXS ports, numbered 0 to 7, all of them FXS-E enabled for extended loop reach, and no FXO ports. Short-loop ports support up to 600 ohms of loop resistance and long-loop ports up to 1400 ohms. It has up to two 10/100/1000 Ethernet LAN ports, one USB 2.0 Type-A port and 4 GB of fixed DDR3 SDRAM. On-board DSP provides echo cancellation up to 128 ms, so no PVDM is required. Power comes from a 100 to 240 VAC auto-ranging external supply rated at 55 W. It is not a PoE device.

The VG400 runs Cisco IOS XE Software 16.10.1 or later and works with Cisco Unified Communications Manager 12.0.1SU2 or later and Cisco Unified Communications Manager Express. Third-party call control is supported through SIP and H.323 IP trunks. CUBE, CUCM Express, SRST and DSP farm functions are available only on Cisco 4000 Series ISRs.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco IOS XE Software with a uniform Cisco CLI and SNMPv3 management
- Connects analog phones, fax machines, modems and speakerphones to Cisco Unified Communications Manager
- Protocols include SCCP, H.323v4, MGCP, SIP, RTP, SRTP, TFTP, SNMP, Telnet, DHCP and DNS
- MGCP fallback for high availability and call survivability
- T.38 Fax Relay, Fax Pass-Through, V.150.1 MER Modem Relay and Modem Pass-Through
- G.711 and G.729a codec support
- FXS-E extended loop support with 35 mA loop current and 65 Vrms ringing voltage
- RADIUS and TACACS+ support for Telnet access and authorisation
- Supplementary analog features with SCCP and SIP, including call forward, hold/resume, transfer, call waiting and 3-party conference

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Number of FXS ports: 8
- Number of FXO ports: None
- FXS-E enabled ports: 8
- Interface: FXS (RJ-11), ports 0 to 7
- Ethernet: Up to two 10/100/1000 LAN ports
- External USB 2.0 slots (Type A): 1
- Memory (DRAM): 4 GB DDR3 SDRAM, fixed on board
- DSP: On-board, echo cancellation up to 128 ms
- Software: Cisco IOS XE 16.10.1 or later
- FXS signalling formats: Loop-start, ground-start and DID
- Address signalling formats: In-band DTMF; out-of-band pulse (8 to 12 pps)
- FXS loop resistance: Up to 600 ohms (short-loop port); up to 1400 ohms (long-loop port)
- DID loop resistance: Up to 1800 ohms including terminal equipment
- Ring voltage: 54 Vrms into 5 RENs (short-loop); 65 Vrms into 2 RENs (long-loop)
- Ring frequency: 20, 25, 30 and 50 Hz
- Off-hook loop current: 25 mA max (short-loop); 35 mA max (long-loop)
- FXS loop length: Short-loop up to 3000 ft (900 m) on 26 AWG; long-loop up to 11,000 ft (3400 m) on 26 AWG
- Disconnect supervision: Power denial
- Caller ID: On-hook FSK transmission; DTMF caller ID supported
- AC voltage: 100 to 240 VAC auto-ranging, 50-60 Hz
- Power: 55 W
- Operating temperature: 0 to 40 C (32 to 104 F)
- Non-operating temperature: -40 to 70 C (-40 to 158 F)
- Weight: 3.06 kg (6.75 lb)
- Dimensions (H x W x D): 43.7 x 322.6 x 254 mm (1.72 x 12.7 x 10 in.)

FAQs

Q: How many analog lines does this model support?
A: The VG400-8FXS provides eight FXS ports for analog phones, fax machines and modems. It has no FXO ports, so it cannot connect to PSTN or PBX trunk lines.

Q: What software and call control does it work with?
A: It runs Cisco IOS XE Software 16.10.1 or later and works with Cisco Unified Communications Manager 12.0.1SU2 or later and Cisco Unified Communications Manager Express. Third-party call control is supported over SIP and H.323 IP trunks.

Q: How is the VG400-8FXS powered?
A: It uses a 100 to 240 VAC auto-ranging external power supply rated at 55 W. It is not a PoE device.

Q: Does it support SRST, CUBE or DSP farm functions?
A: No. The VG400 does not natively support CUBE, CUCM Express, SRST or DSP farm. Those functions are available only on Cisco 4000 Series ISRs.

Q: Can it support long analog cable runs?
A: Yes. All eight FXS ports are FXS-E enabled. Long-loop ports support up to 11,000 ft (3400 m) on 26 AWG cable and up to 18,000 ft (5500 m) on 24 AWG cable.
