Cisco

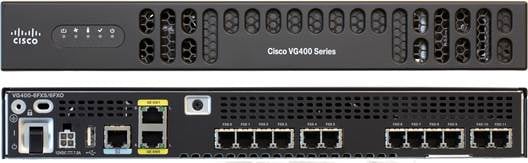

Cisco VG400-2FXS/2FXO | VG400 Analog Voice Gateway, 2 FXS + 2 FXO, SIP

VG400-2FXS/2FXO

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco VG400 is an IOS XE-based analog voice gateway that connects analog phones, fax machines, modems and speakerphones to an IP telephony system such as Cisco Unified Communications Manager. It suits low- to medium-density sites where existing analog endpoints need to keep working alongside IP telephony, and where FXO ports are needed for PSTN trunk access.

This 2 FXS + 2 FXO model provides two FXS ports (RJ-11, ports 0 to 1) and two FXO ports (RJ-11, ports 2 to 3) in a fixed-port chassis. Both FXS ports are FXS-E enabled for extended loop lengths, and two FXO failover bypass ports let designated analog ports place PSTN calls during a power outage. It has up to two 10/100/1000 Ethernet LAN ports, one USB 2.0 Type-A port and 4 GB of fixed DDR3 SDRAM. Power comes from a 100-240 VAC auto-ranging external supply with a 63 W draw and no PoE. On-board DSP handles echo cancellation, so no separate PVDM module is needed.

The VG400 runs Cisco IOS XE 16.10.1 or later and works with Cisco Unified Communications Manager 12.0.1SU2 or later and CUCM Express. SIP and H.323 IP trunks support third-party call control, and it can also be managed as a VG4xx ATA in Webex Calling through Control Hub.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs Cisco IOS XE with a uniform CLI and SNMPv3 management
- On-board DSP in the FXS/FXO ports, so no separate PVDM module is needed
- FXS-E extended loop support for long cable runs to analog endpoints
- FXO failover bypass keeps designated analog ports making PSTN calls during a power outage
- MGCP fallback supports high availability
- T.38 Fax Relay and Fax Pass-Through, plus modem pass-through
- SCCP and SIP call control with Cisco Unified Communications Manager, and SIP and H.323 for third-party call control
- Keeps existing analog phones, fax machines and modems working on an IP telephony system

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: VG400-2FXS/2FXO
- FXS ports: 2 (RJ-11, ports 0 to 1)
- FXO ports: 2 (RJ-11, ports 2 to 3)
- FXO failover bypass ports: 2
- FXS-E enabled ports: 2
- Ethernet: up to two 10/100/1000 LAN ports
- USB: 1 x USB 2.0 Type-A
- Memory: 4 GB DDR3 SDRAM, fixed on board
- Software: Cisco IOS XE 16.10.1 or later
- Call control: SIP, H.323, SCCP, MGCP
- FXS signalling: loop-start, ground-start, DID
- FXO signalling: loop start, ground start
- Echo cancellation: up to 128 ms echo tail
- Power input: 100 to 240 VAC auto-ranging, 50-60 Hz
- Power draw: 63 W
- Operating temperature: 0 to 40 C
- Dimensions (H x W x D): 43.7 x 322.6 x 254 mm
- Weight: 3.06 kg

FAQs

Q: Does the VG400 need a separate software licence?
A: No separate software licence or subscription is listed for this SKU. It runs Cisco IOS XE 16.10.1 or later.

Q: Does it support CUBE, SRST or a DSP farm?
A: No. CUBE, CUCM Express, SRST and DSP farm functions are only available on the Cisco 4000 Series ISRs, not natively on the VG400.

Q: How is the VG400 powered?
A: It uses an external power supply with a 100-240 VAC auto-ranging input at 50-60 Hz and draws 63 W. It does not use PoE.

Q: Which call control platforms does it work with?
A: It works with Cisco Unified Communications Manager 12.0.1SU2 or later and CUCM Express, and supports SIP and H.323 IP trunks for third-party call control. It can also be managed as a VG4xx ATA in Webex Calling.

Q: What happens to the FXO ports in a power outage?
A: The two FXO failover bypass ports allow designated analog ports to place PSTN calls during a power outage.
