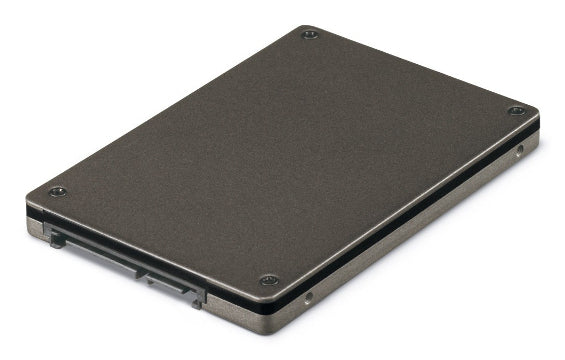

• Black metal 2.5-inch 12.8TB cisco ucsx-nve112t8s1p e3.s nvme gen5 ssd with matte finish and four corner screws
1 1

Cisco

Cisco UCSX-NVE112T8S1P | UCS X-Series 12.8TB E3.S Gen5 NVMe SSD, 3X, TCG OPAL

UCSX-NVE112T8S1P

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCSX-NVE112T8S1P is a 12.8 TB hot-pluggable EDSFF E3.S 1T NVMe solid state drive for Cisco UCS X-Series M8 compute nodes. Built on the Samsung PM1745 family, it is a PCIe Gen5 drive aimed at high-performance, high-endurance local storage in virtualisation, database, AI and analytics workloads, as well as vSAN or hyperconverged capacity and cache tiers.

This variant is the 12.8TB PM1745 High Endurance 3X model with TCG OPAL self-encrypting capability. The 3X endurance class suits write-intensive workloads, and the E3.S 1T form factor comes mounted in a sled for hot-plug installation and removal. There is no separate power supply, as the drive is powered from the compute node front mezzanine and drive backplane.

It is supported on Cisco UCS X210c M8 and UCS X215c M8 compute nodes and requires the UCSX-X10C-PTE3 E3.S pass-through front mezzanine controller. That controller supports up to 9 E3.S drives per X210c M8 node, and E3.S drives cannot be mixed with 2.5in SATA, SAS or U.3 drives. Empty slots use the UCSC-E3S1T-F blank filler. Drive firmware is delivered in Cisco UCS Manager and Intersight release bundles.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-pluggable E3.S 1T NVMe drive supplied mounted in a sled
- PCIe Gen5 NVMe interface for high-throughput, low-latency storage
- TCG OPAL self-encrypting drive support
- High performance and high endurance (3X) class for write-intensive workloads
- Supported on Cisco UCS X210c M8 and X215c M8 compute nodes
- Drive firmware delivered through Cisco UCS Manager and Intersight release bundles

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Capacity: 12.8 TB
- Form factor: EDSFF E3.S 1T, hot-pluggable, sled-mounted
- Interface: NVMe, PCIe Gen5
- Performance class: High Performance (HgPerf)
- Endurance class: High Endurance (HgEnd), 3X
- Security: TCG OPAL
- Media and controller family: Samsung PM1745
- Product ID: UCSX-NVE112T8S1P
- Maximum E3.S drives per UCS X210c M8 node: 9
- Required front mezzanine: UCSX-X10C-PTE3 (UCS X10c Compute Pass Through Controller for E3.S)
- Blank filler for empty slots: UCSC-E3S1T-F
- Mixing: E3.S drives cannot be mixed with 2.5in SATA, SAS or U.3 drives

FAQs

Q: Which compute nodes support this drive?
A: It is supported on Cisco UCS X210c M8 and UCS X215c M8 compute nodes.

Q: What controller does it need?
A: It requires the UCSX-X10C-PTE3 E3.S pass-through front mezzanine controller, which supports up to 9 E3.S drives per X210c M8 node.

Q: Can I mix it with 2.5in SATA, SAS or U.3 drives?
A: No. E3.S drives cannot be mixed with 2.5in SATA, SAS or U.3 drives in the same node.

Q: Does it need a separate power supply?
A: No. The drive is powered from the compute node front mezzanine and drive backplane.

Q: How does it differ from other UCS E3.S NVMe drives?
A: This model is the 12.8TB PM1745 High Endurance 3X variant with TCG OPAL, so it suits write-intensive workloads.
