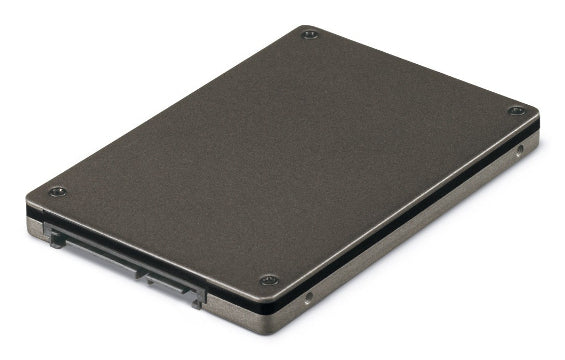

• Black metal 2.5-inch solid-state drive with matte finish and four corner screws cisco UCSX-NVE112T8K1P 12.8TB nvme SSD PCIe 5.0
1 1

Cisco

Cisco UCSX-NVE112T8K1P | UCS X-Series 12.8TB E3.S 1T NVMe SSD, Gen5, 3X DWPD

UCSX-NVE112T8K1P

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 12.8 TB solid state drive is built for Cisco UCS X-Series modular systems, where it provides hot-pluggable local NVMe storage for X210c M8 compute nodes. It is a KCD8XPJE model in the EDSFF E3.S 1T form factor and is aimed at high-performance, write-intensive workloads in data centres and remote sites, as well as all-NVMe vSAN ReadyNode deployments.

The drive uses a PCIe Gen5 NVMe interface and is rated in the High Performance and High Endurance class at 3X DWPD (drive writes per day). It carries Cisco's SIE SCEF security option. Drives are supplied mounted in sleds and can be hot-swapped. A single X210c M8 compute node can hold up to 9 E3.S drives, or up to 2 NVMe drives when the front mezzanine GPU module is fitted.

The drive requires the UCSX-X10C-PTE3 E3.S pass-through front mezzanine controller, which cannot be mixed with 2.5 inch SATA, SAS or U.3 drives. It draws power from the host compute node, so no separate power supply is needed. It is supported in both Intersight Managed Mode and UCSM Managed Mode, and is also listed in Cisco HCIVS vSAN ReadyNode configurations.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- EDSFF E3.S 1T form factor for high-density NVMe storage in UCS X-Series compute nodes
- PCIe Gen5 NVMe interface
- High performance and high endurance class rated at 3X DWPD for write-intensive workloads
- Hot-pluggable and sled-mounted for simple drive replacement
- Supported in Intersight Managed Mode and UCSM Managed Mode
- Listed as a supported drive in Cisco HCIVS vSAN ReadyNode configurations

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product ID: UCSX-NVE112T8K1P
- Capacity: 12.8 TB
- Drive type: NVMe
- Form factor: EDSFF E3.S 1T
- Interface: PCIe Gen5
- Performance class: High Performance
- Endurance class: High Endurance, 3X DWPD
- Controller model: KCD8XPJE (SIE SCEF)
- Hot-pluggable: Yes, sled-mounted
- Max E3.S drives per UCS X210c M8 compute node: 9
- Max NVMe drives with front mezzanine GPU module: 2
- Required front mezzanine controller: UCSX-X10C-PTE3 (E3.S pass-through)

FAQs

Q: Which Cisco compute node does this drive fit?
A: It is listed as a supported drive for the Cisco UCS X210c M8 compute node (Intel Xeon 6) in the UCS X-Series modular system.

Q: What front mezzanine controller does it need?
A: It requires the UCSX-X10C-PTE3 E3.S pass-through front mezzanine controller. This controller supports up to 9 E3.S drives per compute node.

Q: Can it be mixed with 2.5 inch SATA, SAS or U.3 drives?
A: No. The E3.S pass-through front mezzanine cannot be mixed with 2.5 inch SATA, SAS or U.3 drives in the same compute node.

Q: Does it need a separate power supply?
A: No. The drive is powered from the host compute node through the E3.S front mezzanine pass-through controller.

Q: How does it differ from other UCS NVMe drives?
A: This SKU is the 12.8 TB E3.S 1T KCD8XPJE model, a PCIe Gen5 NVMe drive in the High Performance, High Endurance (3X DWPD) class with the SIE SCEF security option.
