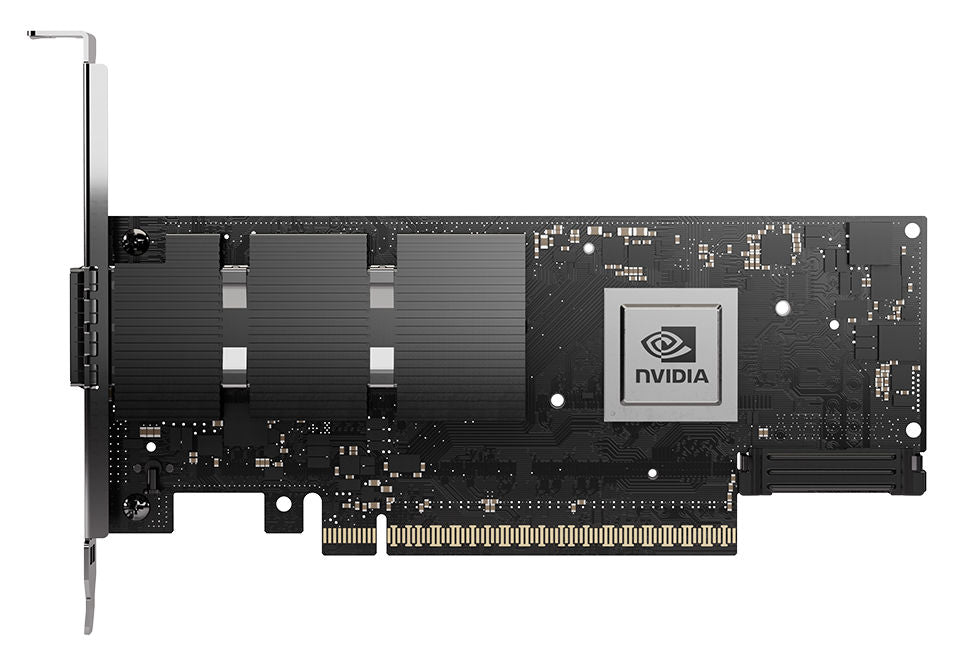

• Black nvidia pcie expansion card with silver heatsinks and metallic bracket cisco ucsc-p-n7s400gf connectx-7 400gbe pcie 5.0 x16
1 1

Cisco

Cisco UCSC-P-N7S400GF | ConnectX-7 400GbE QSFP112 NIC, PCIe Gen5 x16, VPI

UCSC-P-N7S400GF

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This NVIDIA ConnectX-7 based network interface card is a single-port 400GbE adapter built for Cisco UCS C-Series M7 and M8 rack servers. It is aimed at AI/ML, HPC and data-centre workloads where high-bandwidth 400GbE or InfiniBand-capable connectivity is needed, in a compact half-height, half-length, single-slot form factor.

The card provides one QSFP112 port and connects to the host over a PCIe Gen5 x16 interface for 400G line-rate connectivity. It is a VPI (Virtual Protocol Interconnect) NIC, so it supports both Ethernet and InfiniBand operation. This is the Cisco-branded SKU, separate from the OEM-branded UCSC-P-N7S400GFO variant.

It is supported in Cisco UCS C220 M7, C240 M7, C245 M8 and C240 M8 servers and can be managed through Cisco Intersight. On the C240 M8 it installs in Riser 1, 2 or 3, with up to three cards per server. CPUs above 330W TDP and 256GB DIMMs are not supported with this card on the C240 M8, and 128GB DIMMs are limited to 1DPC.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- NVIDIA ConnectX-7 based 400GbE adapter
- Single-slot, half-height, half-length form factor
- VPI-capable (Ethernet and InfiniBand) operation
- PCIe Gen5 x16 host interface for 400G line-rate connectivity
- Supported in Cisco UCS C-Series M7 and M8 standalone rack servers
- Managed through Cisco Intersight
- Suited to AI/ML, HPC and data-centre workloads

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Cisco PID: UCSC-P-N7S400GF
- Chipset: NVIDIA ConnectX-7 MCX715105AS-WEAT
- NIC category: 400GbE NIC
- Ports: 1 x 400GbE QSFP112
- Host interface: PCIe Gen5 x16
- Protocol: VPI (Ethernet/InfiniBand)
- Card size: HHHL (half-height, half-length), single-slot
- Supported slots on C240 M8: Riser 1, 2 or 3
- Maximum quantity on C240 M8: 3 cards per server
- CPU restriction on C240 M8: CPUs with TDP above 330W not supported
- Memory restriction on C240 M8: 256GB DIMMs not supported, 128GB DIMMs at 1DPC only, maximum 8 DIMMs per CPU
- Supported servers: Cisco UCS C220 M7, C240 M7, C245 M8, C240 M8

FAQs

Q: Which Cisco servers support this NIC?
A: It is supported on Cisco UCS C220 M7, C240 M7, C245 M8 and C240 M8 rack servers, and can be managed through Cisco Intersight.

Q: Does it need a licence or subscription?
A: No licence tier is specified for this adapter. It is a hardware network interface card.

Q: How many can be installed in a C240 M8?
A: Up to three cards per server. They install in Riser 1A/1C slot 2, Riser 2A/2C slot 5 and Riser 3C slot 7.

Q: Are there restrictions when using it in a C240 M8?
A: Yes. CPUs with a TDP above 330W are not supported with this card, and 256GB DIMMs are not supported. 128GB DIMMs are limited to 1DPC with a maximum of 8 DIMMs per CPU.

Q: How does it differ from UCSC-P-N7S400GFO?
A: UCSC-P-N7S400GF is the Cisco-branded version of the card. UCSC-P-N7S400GFO is the NVIDIA OEM-branded version of the same MCX715105AS-WEAT adapter.
