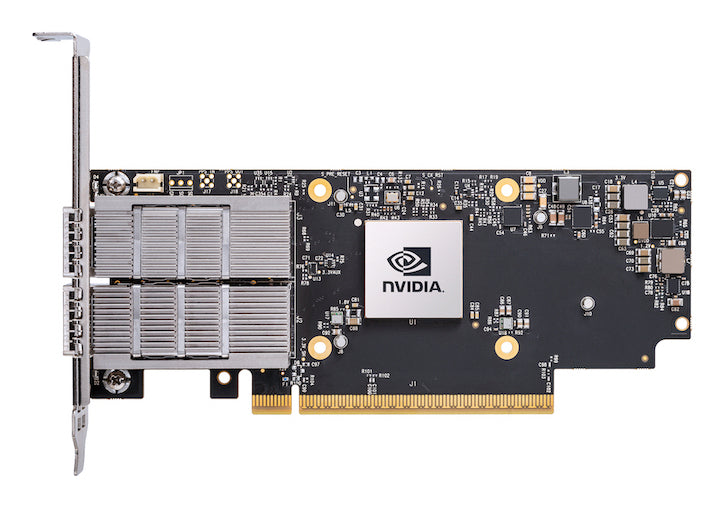

• Cisco UCSC-P-N7Q25GF connectx-7 4-port 25gbe network card with black pcb silver heatsink and gold-plated pcie 4.0 x16 connector
1 1

Cisco

Cisco UCSC-P-N7Q25GF | ConnectX-7 4x25GbE SFP56 PCIe Gen4 x16 NIC, HHHL

UCSC-P-N7Q25GF

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco UCSC-P-N7Q25GF is an NVIDIA ConnectX-7 quad-port 25GbE network interface card for Cisco UCS C-Series M7 rack servers. It suits enterprise data centre server connectivity at 10/25GbE, covering traditional workloads, AI, scientific computing, hyperscale cloud, SDN/NFV and virtualised environments.

The card provides four SFP56 ports that auto-detect 10G or 25G links over NRZ signalling, with a PCIe Gen 4.0 x16 host interface in a half-height, half-length form factor. This variant has crypto disabled and secure boot enabled, and is fitted with a tall bracket. It supports RDMA over Converged Ethernet (RoCE), SR-IOV and NVIDIA ASAP2 accelerated switching, and draws a typical 15.1 W with passive cables. No licence or subscription is required, and in-box drivers are available for major operating systems.

The card is qualified for Cisco UCS C220 M7 and C240 M7 rack servers and installs in Riser 1, 2 or 3 HHHL slots. Supported Cisco optics include SFP-10G-SR, SFP-10G-LR, SFP-25G-SR-S and SFP-10/25G-LR-S, along with passive and active DAC and AOC cables from the Cisco compatibility matrix.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- RDMA over Converged Ethernet (RoCE), including zero-touch RoCE
- NVIDIA ASAP2 accelerated switch and packet processing for SDN and VNF
- Open vSwitch (OVS) offload and acceleration
- Overlay network acceleration for VXLAN, GENEVE and NVGRE
- Connection tracking (L4 firewall), flow mirroring, header rewrite and hierarchical QoS
- SR-IOV and stateless TCP offloads
- Hardware root of trust with secure boot, secure firmware update, flash encryption and device attestation
- Out-of-band management via NC-SI, MCTP, PLDM, SPDM and Redfish device enablement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Cisco PID: UCSC-P-N7Q25GF
- Cisco SKU: 30-100326-01
- NVIDIA SKU: 900-9X7AO-0003-ST0 (legacy OPN MCX713104AS-ADAT)
- Network ports: 4 x SFP56
- Ethernet speeds: 25GbE, 10GbE
- Network interface technology: NRZ (10G, 25G)
- Host interface: PCIe Gen4, up to x16 lanes
- Form factor: PCIe HHHL
- Bracket: tall bracket (PN MEC018771) fitted
- Crypto: disabled
- Secure boot: enabled
- Typical power with passive cables (PCIe Gen 4.0 x16): 15.1 W
- Operating temperature: 0 to 55 C
- Non-operating temperature: -40 to 70 C
- Remote boot: iSCSI, UEFI, PXE
- Operating systems: Linux (RHEL, Ubuntu), Windows
- Virtualisation: VMware ESXi (SR-IOV), Kubernetes
- Qualified servers: Cisco UCS C220 M7, UCS C240 M7

FAQs

Q: Does this NIC need a licence or subscription?
A: No. It is a hardware adapter with in-box drivers for major operating systems, and no licence or subscription is required. Feature availability depends on the firmware and driver release.

Q: Which Cisco servers is it qualified for?
A: It is qualified for Cisco UCS C220 M7 and C240 M7 rack servers and installs in Riser 1, 2 or 3 HHHL slots.

Q: Which optics and cables work with the SFP56 ports?
A: Supported Cisco parts include SFP-10G-SR, SFP-10G-LR, SFP-25G-SR-S, SFP-10/25G-LR-S, SFP-H25G-CU1M to 4M passive DAC, SFP-25G-AOC5M and 7M, and SFP-H25G-AOC10M. Break-out and split cables are not supported.

Q: How much power does the card draw?
A: Typical power is 15.1 W with passive cables in a PCIe Gen 4.0 x16 slot. The card draws power from the PCIe slot, and active cables add power per the datasheet formula.

Q: What does crypto disabled mean for this variant?
A: This variant has hardware crypto offload disabled and secure boot enabled, so it suits deployments that do not need inline encryption acceleration.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
