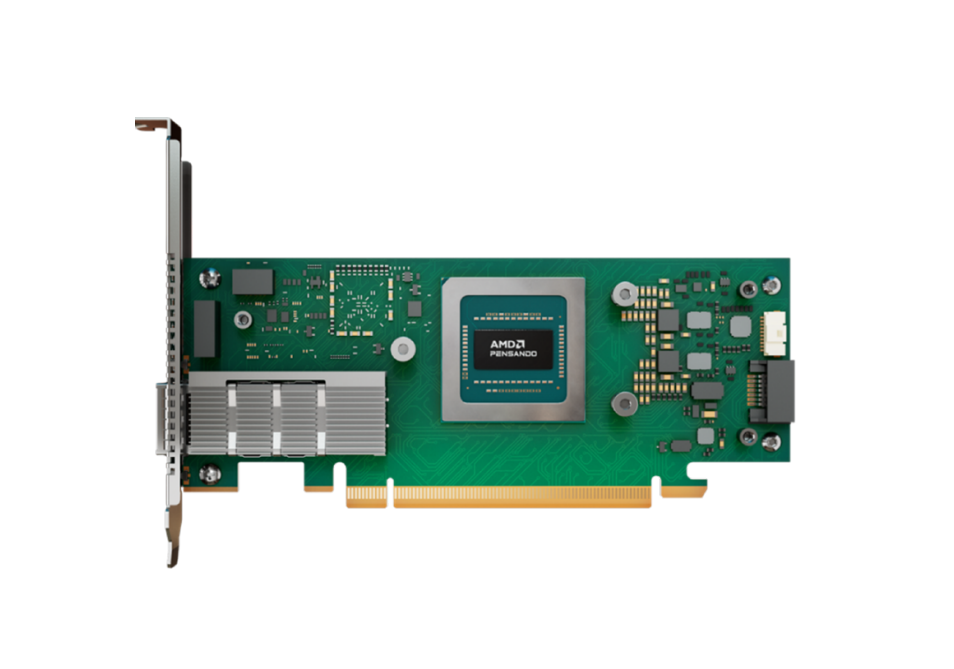

• Cisco ucsc-p-aps400gf pollara 400 ai network adapter green amd radeon graphics card with silver heatsink and gold pcie connector
1 1

Cisco

Cisco UCSC-P-APS400GF | Pollara 400 1x 400GbE QSFP112 AI NIC, PCIe Gen5 x16

UCSC-P-APS400GF

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The AMD Pollara 1Q400P is a single-port 400GbE network adapter built on the AMD Pensando Pollara 400 AI NIC. It is aimed at AI and machine learning clusters where GPU servers need high-bandwidth, low-latency networking, either as a front-end North-South adapter or as an East-West GPU back-end adapter.

The card provides one 400GbE QSFP112 port and connects to the host over a PCIe Gen5 x16 interface. It uses a half-height, half-length (HHHL) form factor, so it fits single-slot NIC positions in dense GPU servers. The QSFP112 cage requires matching QSFP112 optics or cables for 400GbE links.

It is listed as a supported NIC in the Cisco UCS C845A M8 rack server, which hosts up to 8 GPUs in a 4RU chassis. In that system it is supported as a North-South NIC in Slot 10 and as an East-West NIC in Slots 9, 11, 12 and 13. The same adapter is ordered for the C845A M8 under the PID CAI-P-APS400GF, and it forms part of Cisco AI POD infrastructure.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- AMD Pensando Pollara 400G AI NIC for GPU and AI cluster networking
- Supported for both North-South and East-West networking in the Cisco UCS C845A M8 AI server
- Listed alongside AMD Instinct MI210 and MI350P GPU support in the C845A M8, using the AMD ROCm software stack
- Single 400GbE QSFP112 port for high-bandwidth GPU cluster fabrics
- PCIe Gen5 x16 host interface to match 400G line rate
- Half-height, half-length card suits single-slot NIC positions
- Offered as part of Cisco AI POD infrastructure

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Cisco PID: UCSC-P-APS400GF
- Model: AMD Pollara 1Q400P
- Ports: 1 x 400GbE
- Port/cage type: QSFP112
- Host interface: PCIe Gen5.0 x16
- Form factor: HHHL (half-height, half-length)
- Cisco C845A M8 ordering PID for the same NIC: CAI-P-APS400GF
- Cisco UCS C845A M8 North-South NIC: Slot 10 only
- Cisco UCS C845A M8 East-West NIC: Slots 9, 11, 12, 13
- Cisco UCS C845A M8 networking slots: five FHHL PCIe Gen5 x16 slots for single-slot NICs or DPUs

FAQs

Q: Which Cisco server is this adapter supported in?
A: It is listed as a supported NIC in the Cisco UCS C845A M8 rack server, an AI server that hosts up to 8 GPUs in a 4RU chassis.

Q: Which slots can it be installed in on the UCS C845A M8?
A: As a North-South NIC it is supported in Slot 10 only. As an East-West NIC it is supported in Slots 9, 11, 12 and 13.

Q: What optics or cables does the 400GbE port need?
A: The port is a QSFP112 cage, so it needs QSFP112 optics or cables rated for 400GbE.

Q: Does this adapter need a licence?
A: No licence is listed for this adapter. It is a hardware network card installed in a PCIe Gen5 x16 slot.

Q: What software does it work with on the UCS C845A M8?
A: On the C845A M8 it works with the AMD ROCm software stack on Ubuntu or Red Hat Enterprise Linux.
