Cisco

Cisco UCSAI-880A-DCSCM | UCS C880A M8 DC-SCM Module, NVIDIA GPU, Xeon 6

UCSAI-880A-DCSCM

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS C880A M8 DC-SCM module is the Datacenter Secure Control Module for the Cisco UCS C880A M8 GPU rack server, in the NVIDIA GPU, 6th Gen Intel Xeon CPU configuration. It hosts the server's baseboard management controller and the management and front-panel I/O, and sits in the CPU tray. It suits data-centre teams running dense AI and HPC deployments such as deep learning and LLM training, model fine-tuning, large model inferencing and RAG.

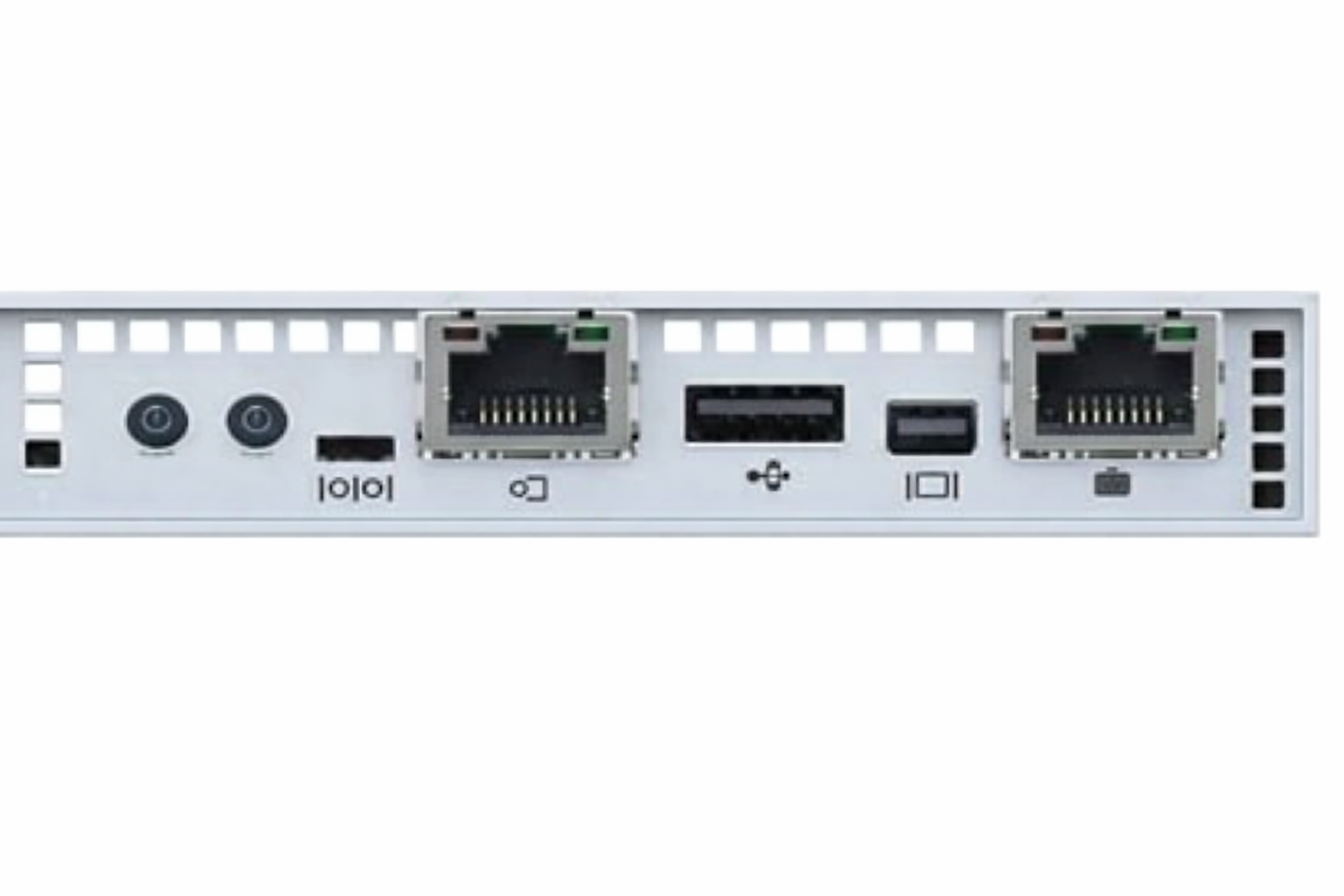

The module provides a dedicated 1GbE RJ45 host BMC port and a separate 1GbE onboard NIC with RJ45. Local service I/O includes a USB 3.2 Gen1x1 Type-A port, a Mini DisplayPort and a micro-USB debug port, plus physical Power, ID and Reset buttons. Management support covers IPMI 2.0, KVM with dedicated LAN and a watchdog. The module draws power from the host server and has no standalone power rating. The spare part number is UCSAI-880A-DCSCM=.

It is for use only in the Cisco UCS C880A M8 Rack Server, which pairs 8x NVIDIA HGX B300 GPUs with two 6th Gen Intel Xeon processors. The module itself carries no licence.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hosts the server's baseboard management controller with a dedicated 1GbE RJ45 management port
- Supports IPMI 2.0, KVM with dedicated LAN and watchdog management
- Local service I/O with USB 3.2 Gen1 Type-A, Mini DisplayPort and micro-USB debug port
- Physical Power, ID and Reset buttons on the module
- Modular DC-SCM design, field-replaceable as a spare
- Integrated into the CPU tray of a dense GPU server built for AI and HPC workloads

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Module: UCS C880A M8 DC-SCM Card, NVIDIA GPU, 6th Gen Intel Xeon CPU
- Location: CPU tray (DC-SCM Module)
- Quantity per server: 1
- Spare PID: UCSAI-880A-DCSCM=
- BMC port: 1GbE RJ45 host baseboard management controller
- Onboard NIC: 1GbE with RJ45
- USB: 1x USB 3.2 Gen1x1 Type-A
- Video: Mini DisplayPort
- Debug: Micro-USB port
- Buttons: Power, ID and Reset
- Management: IPMI 2.0, KVM with dedicated LAN, watchdog
- Host server: UCS C880A M8, 10RU rack server
- Host server GPUs: 8x NVIDIA HGX B300 NVL8
- Host server CPUs: Two 6th Gen Intel Xeon processors
- Power: supplied by the host server

FAQs

Q: Does this module need a licence?
A: No licence is listed for the DC-SCM module itself. Any NVIDIA AI Enterprise software licensing relates to the parent server and is handled separately.

Q: What does it work with?
A: It is for use only in the Cisco UCS C880A M8 Rack Server, which uses 6th Gen Intel Xeon CPUs and NVIDIA HGX B300 GPUs.

Q: How is the module powered?
A: It is powered from the host server and has no standalone power rating. The server uses redundant 3200 W Titanium-grade power supplies.

Q: What management interfaces does it provide?
A: A dedicated 1GbE RJ45 BMC port with IPMI 2.0, KVM over dedicated LAN and a watchdog, plus a separate 1GbE onboard NIC.

Q: What is the spare part number?
A: The spare part number is UCSAI-880A-DCSCM=.
