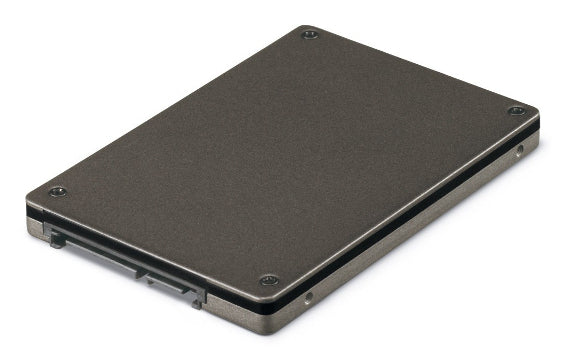

• Black metal 2.5-inch cisco ucs-nve13t8s1v 3.8tb e3.s nvme solid-state drive with matte finish and four corner screws
1 1

Cisco

Cisco UCS-NVE13T8S1V | UCS 3.8TB E3.S PCIe 5.0 NVMe SSD, PM1743, TCG Opal

UCS-NVE13T8S1V

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS-NVE13T8S1V is a 3.8 TB solid state drive in the E3.S 1T EDSFF form factor, built for Cisco UCS M8 rack servers. It is a Samsung PM1743-based, high performance, medium endurance drive with TCG Opal 2.0 self-encryption, suited to a fast storage tier for virtualisation, databases and analytics.

The drive connects over PCIe 5.0 x4 using NVMe, delivering up to 14,000 MBps sequential read and 6,000 MBps sequential write. Random 4 KB performance reaches 2,500,000 read IOPS and 280,000 write IOPS at PCIe 5.0. Endurance is rated at 1 DWPD for 5 years, equal to 7008 TB written, with an MTBF of 2,500,000 hours. Typical power draw is about 20.9 W read and 21.2 W write, supplied by the server E3.S backplane. No licence or subscription is required.

This SKU is listed as a drive option in the Cisco UCS C220 M8 EDSFF E3.S rack server, and in the HyperFlex C220 M8 E3.S and C240 M8 E3.S vSAN configurations. Features include power-loss protection, end-to-end data protection, Fail-In-Place technology and SSD virtualisation with SR-IOV support.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Direct PCIe 5.0 x4 connection per drive for up to about 14 GBps throughput
- TCG Opal 2.0 self-encrypting drive with instant cryptographic erase
- Power-loss protection to safeguard in-flight data
- End-to-end data protection
- Fail-In-Place technology and S.M.A.R.T. monitoring
- SSD virtualisation with up to 64 virtual SSDs and SR-IOV support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Capacity: 3.8 TB (3.84 TB raw)
- Form factor: E3.S 1T (EDSFF)
- Interface: PCIe 5.0 x4, NVMe (also supports PCIe 4.0 and 3.0 hosts)
- Class: High Performance, Medium Endurance
- Controller platform: Samsung PM1743 based
- Encryption: TCG Opal 2.0 (self-encrypting drive)
- Endurance: 1 DWPD for 5 years
- Endurance (TBW): 7008 TB
- MTBF: 2,500,000 hours
- Random read IOPS (4 KB, PCIe 5.0): 2,500,000
- Random write IOPS (4 KB, PCIe 5.0): 280,000
- Sequential read (128 KB, PCIe 5.0): 14,000 MBps
- Sequential write (128 KB, PCIe 5.0): 6,000 MBps
- Latency random read/write: 60 µs / 20 µs
- Latency sequential read/write: 70 µs / 80 µs
- Typical power read/write (PCIe 5.0): 20.9 W / 21.2 W

FAQs

Q: Does this drive need a licence or subscription?
A: No. The UCS-NVE13T8S1V is a standard hardware storage drive and does not require a licence or subscription.

Q: Which Cisco servers does it work with?
A: It is listed as a drive option in the Cisco UCS C220 M8 EDSFF E3.S rack server, and in the HyperFlex C220 M8 E3.S and C240 M8 E3.S vSAN configurations.

Q: How is this different from the UCSX-NVE13T8S1V?
A: The UCSX-NVE13T8S1V is the X-Series equivalent, used in X210c M8 and X215c M8 compute nodes. The UCS-NVE13T8S1V is the C-Series and HyperFlex SKU.

Q: How much power does it draw?
A: Typical draw is about 20.9 W reading and 21.2 W writing at PCIe 5.0. Power is supplied by the server E3.S backplane.

Q: Is the data encrypted?
A: Yes. It is a TCG Opal 2.0 self-encrypting drive, which also supports instant cryptographic erase.
