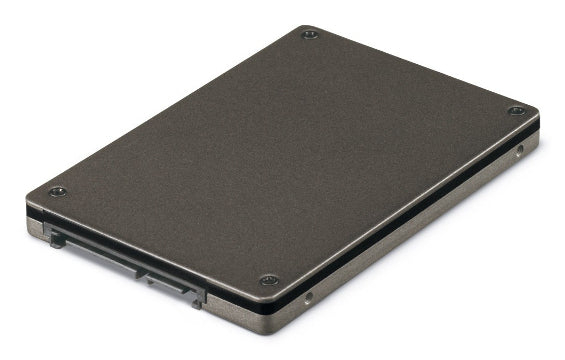

• Black 2.5-inch solid-state drive with matte finish and four screws Cisco UCS-NVB960M1H 960GB U.3 NVMe SSD
1 1

Cisco

Cisco UCS-NVB960M1H | 960GB U.3 NVMe SSD, Micron XTR, Extreme Endurance 60X

UCS-NVB960M1H

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 960 GB enterprise NVMe solid state drive is built for Cisco UCS C-Series rack servers. It uses a 2.5-inch, 15 mm U.3 form factor and is based on the Micron XTR drive, a High Performance, Extreme Endurance (60X) class device aimed at write-intensive server workloads such as write caching, logging and high-IOPS tiers.

The drive uses a PCIe Gen4 x4 NVMe interface and is rated for up to 60 sequential drive writes per day and 35 random drive writes per day. Random write performance reaches up to 250,000 IOPS, and mixed 70/30 random read/write performance reaches up to 550,000 IOPS. The base Micron XTR drive uses 176-layer 3D TLC NAND and has an MTTF of 2.5 million hours. This variant is the 960 GB capacity with Micron XTR extreme-endurance 60X characteristics.

It is listed as a U.3 NVMe drive option in the Cisco UCS C225 M8 SFF rack server spec sheet and is intended for 2.5-inch U.3/U.2 NVMe drive bays on supported Cisco UCS C-Series M8 servers. Its firmware is carried in the Cisco UCS C-Series server firmware bundle, so the drive is qualified and maintained within the UCS firmware stream.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Extreme-endurance, write-intensive class suited to write caching and logging
- PCIe Gen4 NVMe performance in a 2.5-inch hot-swap drive format
- U.3 interface for NVMe drive bays on supported Cisco UCS C-Series servers
- Listed as an orderable drive option in the Cisco UCS C225 M8 SFF rack server spec sheet
- Firmware included in the Cisco UCS C-Series server firmware bundle for Intersight Managed Mode
- High random IOPS for demanding mixed read/write workloads

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Cisco PID: UCS-NVB960M1H
- Capacity: 960 GB
- Form factor: 2.5-inch, 15 mm height
- Interface type: U.3
- Host interface: PCIe 4.0 x4 NVMe
- Base drive: Micron XTR 960GB (MTFDKCC960TFR)
- Performance class: High Performance, Extreme Endurance (60X)
- NAND: Micron 176-layer 3D TLC
- Endurance: up to 60 sequential DWPD / 35 random DWPD
- Random write: up to 250,000 IOPS
- Mixed 70/30 random read/write: up to 550,000 IOPS
- MTTF: 2.5 million hours
- Power: supplied from the server U.3/U.2 drive bay backplane

FAQs

Q: Which Cisco servers is this drive designed for?
A: It is listed as a U.3 NVMe drive option in the Cisco UCS C225 M8 SFF rack server spec sheet and is intended for 2.5-inch U.3/U.2 NVMe drive bays on supported Cisco UCS C-Series M8 servers. Check the server spec sheet for the exact compatible models.

Q: What workloads suit this drive?
A: It is an extreme-endurance, write-intensive drive suited to write caching, logging and high-IOPS tiers, with endurance rated up to 60 sequential drive writes per day.

Q: What interface does it use?
A: It is a U.3 NVMe drive in a 2.5-inch, 15 mm form factor, using a PCIe Gen4 x4 host interface.

Q: How does it differ from other UCS NVMe drives?
A: This variant is the 960 GB capacity based on the Micron XTR drive in the High Performance, Extreme Endurance 60X class, which targets heavier write workloads than standard-endurance drives.

Q: Does it need a separate licence?
A: No licence is required for the drive itself. Firmware is carried in the Cisco UCS C-Series server firmware bundle.
