Cisco

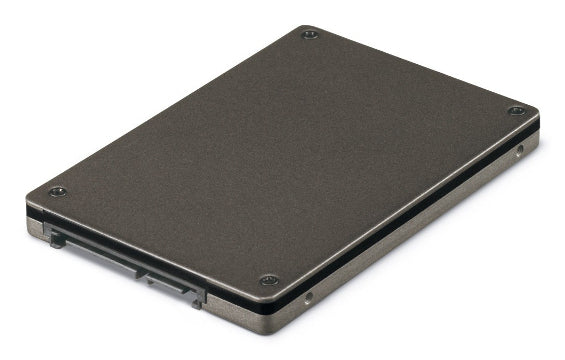

Cisco UCS-NVB1T9M1H | 1.92TB U.3 NVMe SSD, 2.5-Inch, Micron XTR, 60X Endurance

UCS-NVB1T9M1H

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco UCS-NVB1T9M1H is a 1.92TB U.3 NVMe solid-state drive engineered for extreme write endurance in Cisco UCS rack and blade servers. Built with Micron XTR technology, it delivers 60 sequential drive writes per day for write-intensive workloads including caching, logging, and database transactions. The 2.5-inch, 15mm form factor supports hot-swappable installation in compatible UCS C-Series and X-Series servers, providing high-performance PCIe Gen4 connectivity with reduced latency and increased IOPS compared to SAS or SATA SSDs.

Features

PCIe Gen4 x4 interface for maximum bandwidth and low latency
- Extreme endurance rating: 60 SDWPD / 35 RDWPD for 5-year lifespan
- Micron XTR NAND technology optimized for write-intensive caching and logging
- U.3 connector with backward compatibility to U.2 infrastructure
- 2.5-inch small form factor with 15mm height for high-density storage
- Hot-swappable design for zero-downtime drive replacement
- Reduced active power consumption compared to storage-class memory alternatives
- Optimized for tiered storage architectures and database tempdb workloads
- Full integration with Cisco UCS Manager and Intersight management platforms
- NVMe protocol support for parallel I/O and reduced CPU overhead
- Enterprise-grade reliability for mission-critical data center applications
- Compatible with storage profiles, RAID configurations, and local disk policies

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Capacity: 1.92TB (1.9TB usable)
- Form Factor: 2.5-inch U.3, 15mm height
- Interface: NVMe PCIe Gen4 x4
- Endurance Rating: 60 sequential drive writes per day (SDWPD), 35 random drive writes per day (RDWPD)
- Technology: Micron XTR extreme endurance NAND
- Performance Class: High performance, extended endurance for write-intensive workloads
- Compatibility: Cisco UCS C-Series rack servers and UCS X-Series modular systems with U.3 drive bays
- Hot-Swappable: Yes
- Operating Power: Approximately 14W (typical active)
- Use Case: Write-intensive applications including caching, logging, journaling, and OLTP databases

FAQs

Q: What UCS servers support the UCS-NVB1T9M1H drive?
A: This drive is compatible with Cisco UCS C-Series rack servers and UCS X-Series modular compute nodes that feature U.3 NVMe drive bays, including the C225 M8, C220 M6/M7, C240 M6/M7, X210c M8, and X215c M8. Verify your specific server model's drive bay configuration and firmware requirements before installation.

Q: What makes the Micron XTR technology suitable for write-intensive workloads?
A: The Micron XTR technology delivers extreme endurance with 60 sequential and 35 random drive writes per day over a 5-year lifespan, exceeding typical TLC-based SSDs by 10X. This makes it ideal for caching tiers, write buffering, continuous logging, journaling, and high-transaction databases where frequent write operations are critical.

Q: Can I mix U.2 and U.3 NVMe drives in the same UCS server?
A: Yes, Cisco UCS servers support mixing U.2 and U.3 NVMe drives within the same system. U.3 connectors are backward compatible with U.2 drives, though U.2 connectors cannot accept U.3 drives. You can also mix NVMe drives with SAS or SATA drives depending on your server's storage controller configuration.

Q: How does NVMe performance compare to SAS or SATA SSDs in UCS servers?
A: NVMe SSDs connected via PCIe deliver significantly reduced latency and increased IOPS compared to SAS or SATA SSDs. By connecting storage directly to the CPU via non-oversubscribed PCIe lanes, NVMe drives eliminate traditional storage bus bottlenecks, resulting in faster application performance for I/O-intensive workloads.

Q: What management tools are available for NVMe drives in Cisco UCS?
A: Cisco UCS Manager and Cisco Intersight discover, identify, and display the inventory of NVMe PCIe SSD storage devices. You can view drive health, capacity, serial numbers, operational status, and firmware versions. Storage profiles allow you to configure RAID, JBOD, and local disk policies for NVMe drives across your UCS environment.
