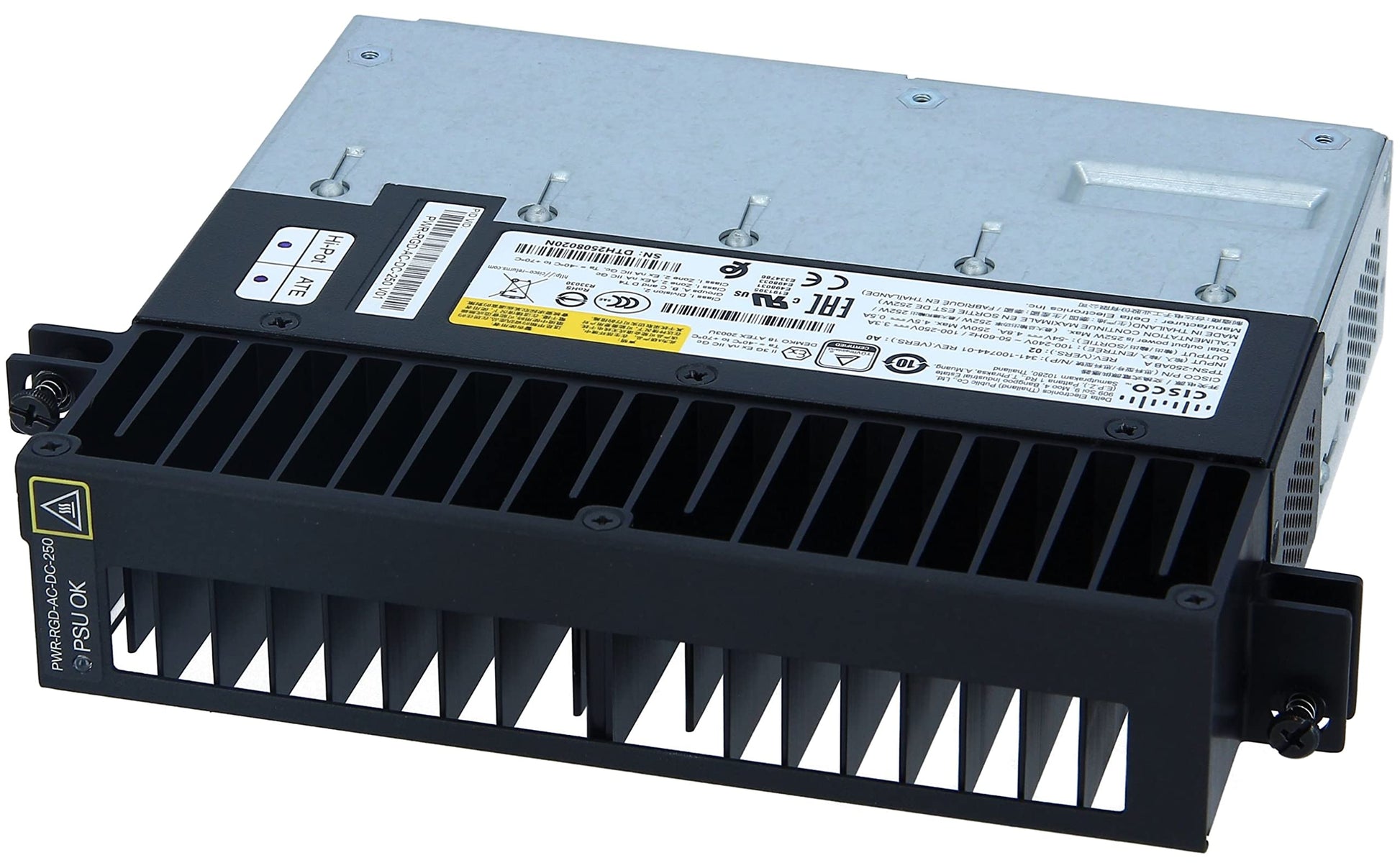

  • Cisco PWR-RGD-AC-DC-IAR redundant industrial AC/DC PSU with black silver heatsink
1 2

Cisco

Cisco PWR-RGD-AC-DC-IAR | IE-3010 Redundant Power Supply, High AC/DC 88-300VDC

PWR-RGD-AC-DC-IAR

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This redundant high AC/DC power supply module is built for the Cisco IE-3010 Series of rugged Industrial Ethernet switches. Each IE-3010 switch takes two power supplies, and this redundant variant is intended as the second module in a 1+1 configuration, keeping the switch powered if one feed or module fails. It suits factory floors, utilities and other harsh industrial sites where power continuity matters.

The wide input range accepts both AC and high-voltage DC feeds. Nominal input is 100 to 240 VAC at 50 to 60 Hz or 100 to 250 VDC, with an absolute maximum short-term range of 85 to 265 VAC and 88 to 300 VDC. On the IE-3010-16S-8PC, one power supply provides PoE on 4 ports and two power supplies provide PoE on 8 ports. The module is rated for continuous operation from -40 to 60 C as part of the switch system and weighs about 1.1 kg.

It is compatible with the IE-3010-24TC and IE-3010-16S-8PC. The non-redundant PWR-RGD-AC-DC/IA and the low-voltage DC PWR-RGD-LOW-DC/IA and PWR-RGD-LOW-DC/IAR are sibling modules for the same chassis. No licence or subscription is required for the power supply.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Redundant variant allows two power supplies per IE-3010 switch for 1+1 power resilience
- Wide-range input accepts both AC (85-264 VAC) and DC (88-300 VDC) sources
- Rugged design for industrial environments, with continuous operation from -40 to 60 C in the switch system
- Enables PoE on IE-3010-16S-8PC, with 4 PoE ports on one PSU and 8 PoE ports on two PSUs
- Suits factory floors, utilities and other harsh sites with AC or high-voltage DC feeds

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: Redundant power supply module for IE-3010 switch
- Nominal input voltage (AC): 100 to 240 VAC, 50 to 60 Hz
- Nominal input voltage (DC): 100 to 250 VDC
- Absolute maximum short-term input (AC): 85 to 265 VAC, 47 to 63 Hz
- Absolute maximum short-term input (DC): 88 to 300 VDC
- Module weight: 1.1 kg (2.5 lb)
- Operating temperature: -40 to 60 C continuous (switch system)
- Operating altitude: 3000 m at 40 C
- Operating relative humidity: 5% to 95% non-condensing
- Storage and transport temperature: -40 to 85 C
- Storage and transport altitude: 4570 m
- Storage and transport relative humidity: 5% to 95% non-condensing
- IE-3010-24TC consumption, one PSU on AC: 29.8 W maximum
- IE-3010-24TC consumption, two PSUs on AC: 35.5 W
- IE-3010-16S-8PC consumption, one PSU on AC (4 PoE ports): 110.1 W
- IE-3010-16S-8PC consumption, two PSUs on AC (8 PoE ports): 184.1 W

FAQs

Q: Which switches does this power supply fit?
A: It is designed for the Cisco IE-3010-24TC and IE-3010-16S-8PC switches in the IE 3010 Series. Each switch takes two power supplies.

Q: What input voltage does it accept?
A: Nominal input is 100 to 240 VAC at 50 to 60 Hz or 100 to 250 VDC. The absolute maximum short-term range is 85 to 265 VAC and 88 to 300 VDC.

Q: Does it provide PoE?
A: The module powers the switch, and on the IE-3010-16S-8PC one power supply supports PoE on 4 ports while two power supplies support PoE on 8 ports.

Q: How does it differ from the PWR-RGD-AC-DC/IA?
A: This is the redundant variant, intended as the second power supply in a 1+1 configuration. The PWR-RGD-AC-DC/IA is the non-redundant high AC/DC module for the same switches.

Q: Does it need a licence or subscription?
A: No. The power supply module requires no licence or subscription.
