• Cisco PWR-IE50W-AC-IEC 50W AC-DC PSU for IE 2000/3000
1 1

Cisco

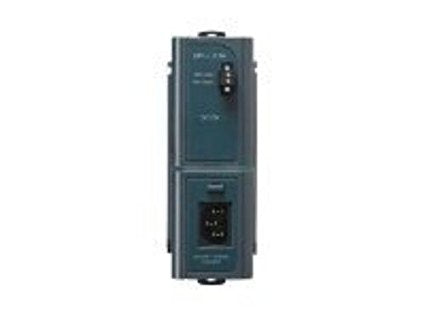

Cisco PWR-IE50W-AC-IEC | 50W AC-DC DIN-Rail Power Supply, IEC C14, 24VDC

PWR-IE50W-AC-IEC

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 50W AC-to-DC DIN-rail power supply is part of the Cisco industrial DIN-rail power supply range. It powers Cisco industrial Ethernet switches in harsh environments such as factory automation, ITS and substation installations. It is not approved for hazardous-location installations.

It accepts AC 100-240V at 1.25A, 50-60Hz, with a supported input range of AC 90-264V, and delivers 24VDC at 2.1A, up to 50W maximum. Typical efficiency is 80% and holdup time at full load is 20ms. Input is through a plug-in IEC 60320 C14 inlet, so no hardwiring is needed. It does not provide PoE. The unit operates from -20 C to +70 C with no power derating and is IP20 rated.

It is listed as a power supply option for Cisco IE 2000 and IE 3000 industrial Ethernet switches, including the IE-3000-4TC, IE-3000-8TC, IE-3000-4TC-E and IE-3000-8TC-E. It is also listed for the IE3100, IE3200 and IE3500 series. No separate DC output cable is needed.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Compact, DIN-rail mountable industrial power supply
- Plug-in IEC 60320 C14 inlet, so no hardwiring is needed
- Wide AC input range of 90-264V
- 24VDC output at 2.1A (50W) with 20ms holdup time
- No power derating across -20 C to +70 C
- Suited to factory automation, ITS and substation environments
- No separate DC output cable required

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Output power: 50W maximum
- Output: 24VDC, 2.1A
- Input: AC 100-240V, 1.25A, 50-60Hz
- Supported input voltage range: AC 90-264V
- Input connection: plug-in IEC 60320 C14
- Mounting: DIN-rail
- PoE support: None
- Typical efficiency: 80%
- Inrush current at 25 C: under 35A at 115VAC, 70A at 230VAC
- Holdup time at 100% load: 20ms
- IP rating: IP20
- Operating temperature: -20 C to +70 C, no derating
- Storage temperature: -40 C to +85 C
- Operating humidity: below 95% RH, non-condensing
- Dimensions (W x H x D): 51 mm x 118 mm x 148 mm
- Weight: 0.65 kg
- MTBF (Telcordia SR-332): 1,662,359 hours
- Hazardous location: not approved

FAQs

Q: Does this power supply need a licence?
A: No. It is a hardware power supply and requires no licence or subscription.

Q: Does it provide PoE?
A: No. It supplies 24VDC at 2.1A (50W maximum) to power the switch itself and does not support PoE, PoE+ or 4PPoE.

Q: Which switches does it work with?
A: It is listed as a power supply option for Cisco IE 2000 and IE 3000 industrial Ethernet switches, including the IE-3000-4TC, IE-3000-8TC, IE-3000-4TC-E and IE-3000-8TC-E. It is also listed for the IE3100, IE3200 and IE3500 series.

Q: Can it be used in hazardous locations?
A: No. This model is not approved for hazardous-location installations and is intended for non-hazardous industrial environments.

Q: What AC input does it accept?
A: It accepts AC 100-240V at 1.25A, 50-60Hz, with a supported input range of AC 90-264V, through an IEC 60320 C14 inlet.
