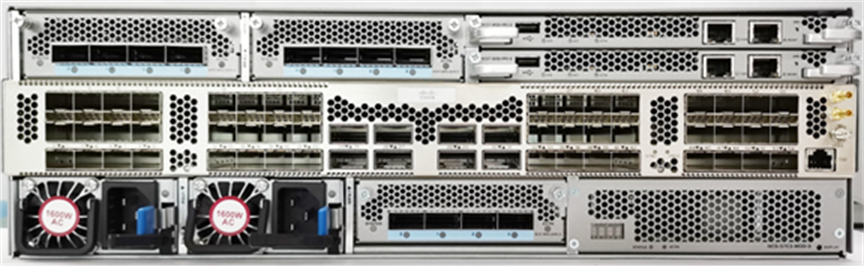

• Silver-colored cisco ncs-57c3-mod-hx hardened router back side with multiple network ports and cooling fans in a server rack
1 1

Cisco

Cisco NCS-57C3-MOD-HX | NCS 5700 57C3-MOD Router, 48x25G + 8x100G, Hardened

NCS-57C3-MOD-HX

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The NCS 57C3-MOD-HX is an environmentally hardened 3RU router chassis built for outside plant deployments within cabinet enclosures. It provides 48 x 25G SFP28 and 8 x 100G QSFP28 fixed ports with three Modular Port Adapter slots and up to 2.4 Tbps system throughput, running Cisco IOS XR. This non-SE chassis is supplied under the Flexible Consumption Model and must be paired with hardened route processors, fan trays and port adapters.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Environmentally hardened for outside plant and cabinet enclosure deployment
- Runs Cisco IOS XR with QoS, IP/MPLS, Segment Routing, SRv6 and EVPN
- MACsec encryption and Class C timing support via Modular Port Adapters
- Interface options from 1GE to 400GE using Modular Port Adapters
- Redundant route processors, power supplies and fan trays
- Flexible Consumption Model (smart licensing)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Fixed ports: 48 x 25G SFP28 (1/10/25G) and 8 x 100G QSFP28
- 3 Modular Port Adapter slots (Slot 1 up to 400G, Slots 2 and 3 up to 800G)
- System throughput up to 2.4 Tbps / 1 BPPS
- Non-SE base chassis with up to 2M FIB entries
- Route processor: NC57-MOD-RP2-E-HX, dual route processors for control plane redundancy
- 2 hot-swappable power supplies, 1+1 redundancy, AC 90-240V or DC -40 to -72V
- 6 hot-swappable fan trays, 5+1 redundancy, front-to-back airflow
- Hardened fan trays: NC57-C3-FAN1-HX or NC57-C3-FAN2-HX
- Internal GNSS receiver with GPS, 1PPS in/out, 10 MHz in/out and ToD timing ports
- Dimensions: 438 mm W x 130.5 mm H x 294.35 mm D (3RU)

FAQs

Q: What makes the HX variant different from the standard NCS 57C3-MOD?
A: The HX is the environmentally hardened version, intended for outside plant deployments inside cabinet enclosures. It uses hardened route processors and fan trays.

Q: Do I need hardened modules with this chassis?
A: Yes. It should be paired with a hardened route processor, fan tray and Modular Port Adapter, such as the NC57-MPA-2D4H-H-S, to avoid system alarms.

Q: What fixed port configuration does it offer?
A: It provides 48 x 25G SFP28 ports that support 1/10/25G, plus 8 x 100G QSFP28 ports, with three additional Modular Port Adapter slots for expansion.

Q: Is this the SE or non-SE version?
A: This is the non-SE base chassis, supporting up to 2M FIB entries.

Q: Does it include precision timing support?
A: Yes. It has an internal GNSS receiver with GPS, 1PPS in/out, 10 MHz in/out and ToD timing ports, with Class C timing support via the port adapters.
