Cisco NCS-55A2-MOD-HX-S | NCS 55A2-MOD Router, 24x10G, 16x25G, Conformal Coated
SKU:NCS-55A2-MOD-HX-S
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

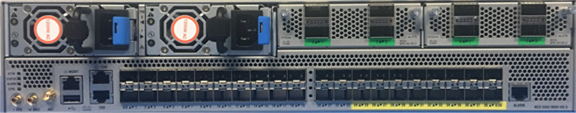

This Cisco NCS 55A2-MOD is a 2RU fixed-port router with 24 SFP/SFP+ ports and 16 SFP/SFP+/SFP28 ports, plus two modular port adapter bays for flexible 400G expansion. It is the temperature-hardened, conformal-coated Base variant without external TCAM, with a GNSS receiver port and four dry-contact alarm inputs for timing and site monitoring. Running Cisco IOS XR on a single 900Gbps ASIC, it suits harsh-environment aggregation, mobile backhaul and service provider edge deployments.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Line-rate MACsec encryption (IEEE 802.1AE) on MPA ports and the 16 SFP28 ports
- Timing and synchronisation support with timing ports and GNSS
- Cisco IOS XR software with iPXE boot, auto-provisioning, machine-to-machine interface and telemetry
- Flexible port options through MPAs in two modular bays
- Quad CLI (hw-module quad) to configure four ports at once
- Low power consumption in a compact form factor
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- 24 x 1/10GbE SFP/SFP+ fixed ports
- 16 x 1/10/25GbE SFP/SFP+/SFP28 fixed ports
- 2 x modular port adapter (MPA) bays, 400-Gbps MPAs
- Single 900Gbps Jericho+ ASIC, 835 MPPS throughput
- 2 RU form factor
- Temperature-hardened with conformal coating
- Base variant, no external TCAM or Stats FPGA
- GNSS receiver port and 4 dry-contact external alarm inputs (RJ-45)
- Supports 1/10/25/40/100/200GbE via fixed and MPA ports
- 100G/200G DWDM via CFP2-DCO MPA
FAQs
Q: What does the conformal coated, temperature hardened variant offer?
A: This SKU is the temperature-hardened version of the NCS 55A2-MOD with conformal coating, intended for harsher deployment environments than the standard chassis.
Q: How many ports does it have?
A: It has 24 fixed 1/10GbE SFP/SFP+ ports and 16 fixed 1/10/25GbE SFP/SFP+/SFP28 ports, with two additional MPA bays for further expansion.
Q: Does this model include external TCAM?
A: No. This is the Base variant without external TCAM or Stats FPGA.
Q: Does it support MACsec?
A: Yes. Line-rate MACsec is supported on the MPA ports and on the 16 SFP28 ports (0/0/0/24-39).
Q: Can it support 100G and 200G speeds?
A: Yes. 40/100/200GbE is available through the MPA bays, and 100G/200G DWDM is supported using the CFP2-DCO MPA.
