Cisco N540X-ACC-SYS-V | NCS 540 Router, 24x 10G SFP+, 8x 25G, 2x 100G, Conformal
SKU:N540X-ACC-SYS-V
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

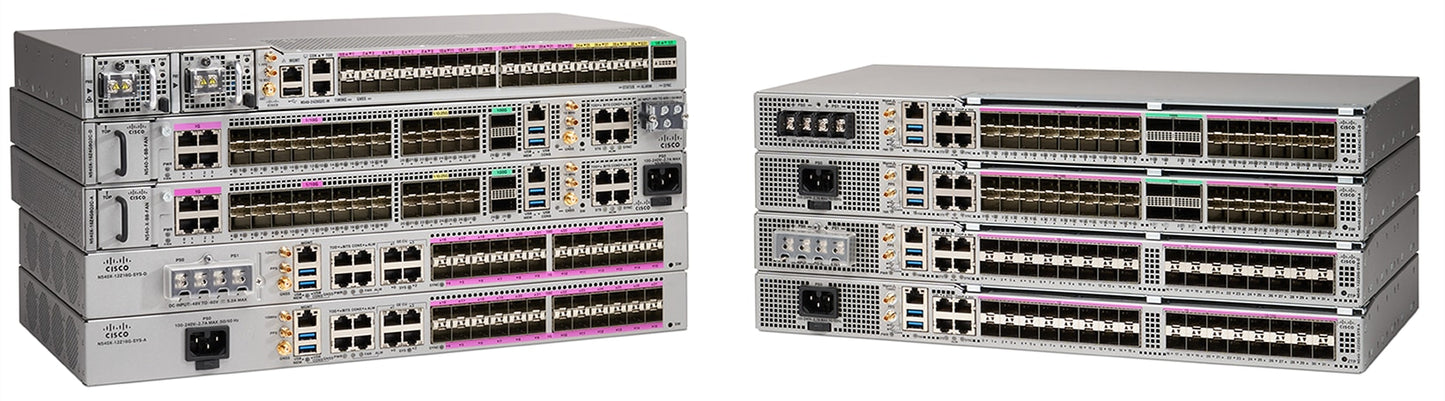

The NCS 540 is a 1RU IOS XR router in the Cisco Network Convergence System 540 family, built for service provider access and aggregation. It suits mobile backhaul and 5G transport, business services and enterprise WAN deployments in indoor or outdoor cabinets. This conformal coated variant is aimed at hot, humid environments.
The chassis provides 24 x 1/10G SFP/SFP+ ports, 8 x 1/10/25G SFP28 ports and 2 x 40/100G QSFP28 ports, with forwarding performance of up to 300 Mpps. A 4-core 1.5 GHz x86 CPU, 16GB DRAM and 128GB of storage run Cisco IOS XR software. Feature licensing is handled through per-10G Right-to-Use or term subscriptions, in Access Essentials and Access Advantage tiers.
Two hot-swappable AC/DC power supplies give 1+1 redundancy, with four modular fans in a 3+1 arrangement and front-to-back airflow. It supports a wide AC input range of 90-265V and DC input of -40V to -72V. It works with N540-PWR400-A and N540-PWR400-D power supplies, the N540-X-FAN fan module and 1/10/25/40/100G SFP, SFP+, SFP28 and QSFP28 optics.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Layer 2 and Layer 3 routing with MPLS, Segment Routing (SR-MPLS, SRv6), EVPN and multicast
- Precise frequency and phase/time synchronisation with SyncE, PTP and internal GNSS
- Environmentally hardened for indoor or outdoor cabinet deployment
- Rich QoS capabilities to support different SLAs
- Secure boot, image signing and run-time defence with a hardware trust anchor
- MEF 3.0 compliant Ethernet services
- Third-party application hosting
- 1RU compact chassis with depth under 300mm
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 24 x 1GE/10GE SFP/SFP+
- Ports: 8 x 1GE/10GE/25GE SFP28
- Ports: 2 x 40GE/100GE QSFP28
- Forwarding performance: up to 300 Mpps
- CPU: 4-core 1.5GHz x86
- Memory: 16GB DRAM
- Storage: 128GB
- Software: Cisco IOS XR
- Power supplies: 2 hot-swappable AC/DC, 1+1 redundancy
- Fans: 4 modular fans, 3+1 redundancy
- Airflow: front-to-back
- Power input: AC 90-265V, 50-60 Hz; DC -40V to -72V
- Power consumption: minimum <100W, typical <200W, maximum 250W
- Operating temperature: -40 to +70 C at 1,000 ft
- Operating humidity: 5% to 95% non-condensing
- Altitude: 0 to 13,000 ft
- Timing: SyncE, PTP, internal GNSS receiver, 1pps, 10MHz, ToD
- Latency: typically <10 us
- Dimensions (H x W x D): 1.72 x 17.3 x 10.1 in, 1RU, 26 cm depth
- Weight: 5.9 kg
- Compliance: NEBS GR-63-CORE and GR-1089-CORE
- Coating: conformal coated for hot, humid conditions
FAQs
Q: Does this router need a software licence?
A: It runs Cisco IOS XR, and features are enabled through per-10G Right-to-Use or term subscription licences, in Access Essentials and Access Advantage tiers. Choose the tier to suit the services you plan to run.
Q: What power supplies does it use?
A: It takes two hot-swappable power supplies in a 1+1 redundant arrangement, the N540-PWR400-A for AC or the N540-PWR400-D for DC. AC input is 90-265V and DC input is -40V to -72V.
Q: Which optics and accessories does it work with?
A: The ports accept 1/10/25/40/100G SFP, SFP+, SFP28 and QSFP28 optics. It works with the N540-X-FAN fan module and the N540-RCKMT-19, N540-RCKMT-23 and N540-RKMT-ETSI rack mounts.
Q: What does conformal coating mean for this unit?
A: Conformal coating protects the circuitry in hot, humid conditions. Combined with the -40 to +70 C operating range, it suits cabinets and sites without tightly controlled climate.
Q: What is the airflow direction?
A: Airflow on this model is front-to-back, driven by four modular fans in a 3+1 redundant arrangement.
