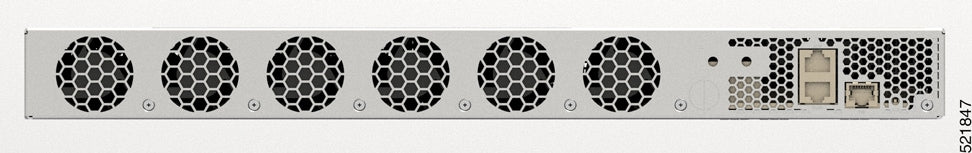

Cisco N540-24Q8L2DD-SYS | NCS 540 Router, 24x 25G, 8x 50G, 2x 400G QSFP-DD

SKU:N540-24Q8L2DD-SYS

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco NCS 540 N540-24Q8L2DD-SYS is a 1RU, temperature-hardened service provider router from the Network Convergence System 540 large density family. It runs Cisco IOS XR and is built for converged IP transport and aggregation, including mobile and fixed broadband and routed optical networks using coherent pluggable optics. It suits indoor or outdoor sealed-cabinet deployments that need precise timing, such as 5G transport.

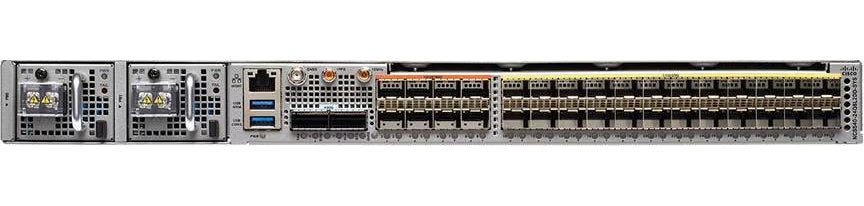

This variant provides 24x 25GE/10GE/1GE ports, 8x 50GE/25GE/10GE/1GE ports and 2x 400GE QSFP-DD ports, which also support 100GE and 40GE modes. It differs from the N540-24Q2C2DD-SYS, which uses 2x 100G in place of the 8x 50G and 2x 400G ports. Forwarding performance reaches 600 Mpps, backed by a 4-core 1.5 GHz x86 CPU, 16 GB DRAM and 64 GB storage. An integrated GNSS receiver with SyncE and PTP delivers Class C timing on the 400G and 50G ports. Two hot-swappable AC or DC power supplies run in 1+1 redundancy, with six fixed fans (5+1) providing front-to-back airflow.

It operates with Cisco IOS XR and Cisco Access Essentials or Advantage software licences ordered per 10G. It supports 400G and 100G ZR/ZR+ coherent pluggables, with supported optics listed in the Cisco Transceiver Module Group Compatibility Matrix for the NCS 540 Series.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Environmentally hardened for indoor or outdoor sealed-cabinet deployment
- Ethernet interface options from 1G to 400G, with 400G/100G ZR/ZR+ coherent optics support
- Integrated GNSS receiver with SyncE and IEEE 1588 PTP (G.8275.1/G.8275.2) for precise frequency and phase/time synchronisation
- Cisco IOS XR with segment routing (SR-MPLS, SRv6), EVPN, MPLS and L2VPN/L3VPN
- Hierarchical QoS with VOQ and deep packet buffers
- Security with Trust Anchor module, secure boot, image signing, run-time defence, LPTS, AAA/TACACS+ and ACLs
- Manageability via CLI, SNMP, NETCONF/gRPC, YANG (OpenConfig, IETF), ZTP and third-party app hosting
- Supports Cisco DDoS Edge Protection and is MEF 3.0 compliant

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Chassis PID: N540-24Q8L2DD-SYS
- Description: NCS540-2x400G QSFP-DD+8x50G+24x25G
- CPU: 4-core 1.5 GHz x86
- Memory: 16 GB DRAM
- Storage: 64 GB
- Interfaces: 24x 25GE/10GE/1GE
- Interfaces: 8x 50GE/25GE/10GE/1GE
- Interfaces: 2x 400GE/3x100GE/200GE/2x100GE/100GE/40GE QSFP-DD
- Performance: Up to 600 Mpps
- Power supplies: 2 hot-swappable AC/DC, 1+1 redundancy, AC and DC PSU combination supported
- Fans: 6 fixed fans (5+1)
- Airflow: Front to back
- Surge rating (IEC 61000-4-5): AC 1 kV DM, 2 kV CM; DC 1 kV DM, 1 kV CM
- Timing: SyncE, PTP, internal GNSS receiver (GPS, Galileo, Glonass, BeiDou)
- Timing interfaces: 1pps, 10MHz, ToD, GNSS antenna
- Timing class: Class C (400G/50G)
- Form factor: 1RU
- Dimensions (D x W x H): 299 x 439.42 x 43.6 mm
- Weight: chassis 5.8 kg; single PSU 0.6 kg
- Operating temperature: -40 to +65 C up to 300 m; -40 to +60 C up to 1800 m; -40 to +50 C up to 3900 m
- Storage temperature: -40 to 70 C
- Operating humidity: 5% to 85% (non-condensing)
- Altitude: 0 to 3900 m
- Input power: AC 90-264 V, 50/60 Hz; DC -40 V to -72 V

FAQs

Q: What licensing does this router need?
A: It runs Cisco IOS XR with Cisco Access Essentials or Advantage software licences ordered per 10G, as either RTU or SIA subscription. Examples include ESS-AC-10G-RTU-1 and ADV-AC-10G-RTU-1.

Q: What power supplies does it use?
A: It takes two hot-swappable power supplies in 1+1 redundancy, N540-PWR400-A for AC or N540-PWR400-D for DC. AC and DC supplies can be combined in the same chassis.

Q: How does it differ from the N540-24Q2C2DD-SYS?
A: This model has 8x 50GE/25GE/10GE/1GE ports and 2x 400GE QSFP-DD ports, whereas the N540-24Q2C2DD-SYS uses 2x 100G ports in place of those.

Q: Which rack mount kits does it work with?
A: The compatible rackmounts are N540DD-RKM-19, N540-RKM-23-FHC and N540-RKM-ETSI-FHC. A cable bracket, N540-CBL-BRKT-FHC, is also available.

Q: Which optics does it support?
A: Supported optics are listed in the Cisco Transceiver Module Group Compatibility Matrix for the NCS 540 Series. The 400G QSFP-DD ports also support 400G and 100G ZR/ZR+ coherent pluggables.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
