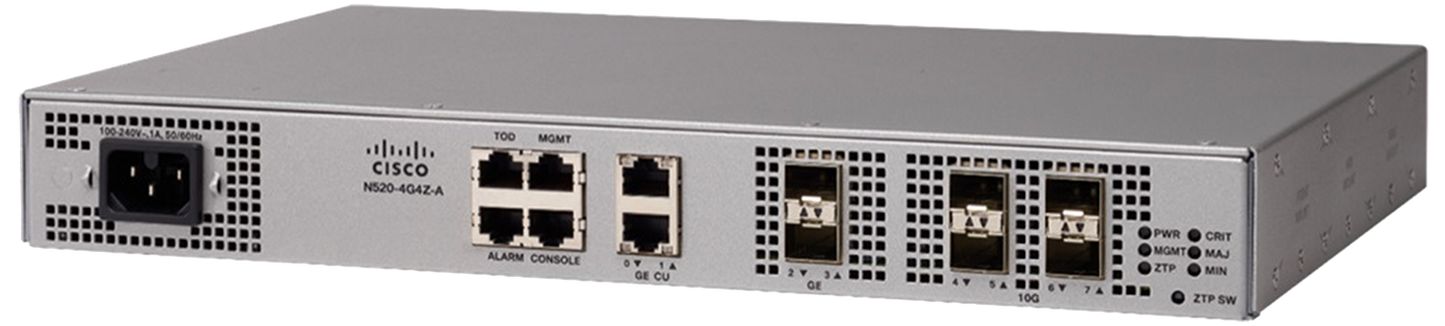

Cisco N520-X-4G4Z-D | NCS 520 8-Port Router, 4x 10G SFP+, Industrial, DC
SKU:N520-X-4G4Z-D
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The NCS 520 is a fixed 1RU, MEF 3.0 certified Layer 2 and Layer 3 carrier Ethernet demarcation device built for service providers. This industrial temperature, DC powered variant suits harsh or NEBS-style sites where it sits between the customer LAN and provider mobile or cloud services, and it also fits mobile backhaul and MEF 3.0 access deployments such as E-Line, E-LAN and E-Tree.
This 8-port model provides 2 x 1G copper ports, 2 x 1G SFP ports and 4 x 1G/10G SFP+ ports. Dual DC power supplies accept -19.2 to -72 V DC, with a nominal range of -24 to -60 V DC, and maximum input power is 70 W. The chassis operates from -40 to 70 C at up to 300 m, uses 2+1 redundant fans with front-to-back airflow, and runs Cisco IOS XE software. Port capacity and features are activated through Smart Licensing or PAK licences in a pay-as-you-grow model.
Supported optics include GLC-SX-MM(D), GLC-LH-SMD, GLC-LX-SMD, GLC-ZX-SMD and GLC-T, rugged SFPs such as GLC-SX-MM-RGD, and 10G SFP+ modules including SFP-10G-SR, SFP-10G-LR, SFP-10G-ER and SFP-10G-ZR. Rack mount options include 19 inch, 23 inch and ETSI kits, and a wall mount kit is also available.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- MEF 3.0 certified carrier Ethernet services: E-Line, E-LAN, E-Tree, Access E-Line, Transit E-Line
- Zero-Touch Provisioning with a front-panel ZTP button
- Class-based 3-level hierarchical QoS with policing, shaping and deep packet buffers
- Service assurance via Y.1731 PM, 802.1ag CFM, Y.1564 and TWAMP responder
- Layer 2 support including bridge domains, 802.1Q/Q-in-Q, LAG/LACP, G.8032 and PVST/RPVST+
- Layer 3 routing with VRF-Lite, OSPF, IS-IS, BGP, VRRP and HSRP
- Secure boot with signed image, Trust Anchor module, DHCP snooping, AAA, TACACS+ and SSH
- Manageable via CLI, SNMP, NETCONF and YANG models
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID: N520-X-4G4Z-D
- 1G copper ports: 2
- 1G SFP ports: 2
- 1G/10G SFP+ ports: 4
- Power supplies: Dual DC
- DC input voltage: -19.2 V DC to -72 V DC, nominal -24 V DC to -60 V DC
- Maximum input power: 70 W (239 BTU/hr)
- Fan redundancy: 2+1 (3 integrated fans)
- Airflow: Front-to-back
- Form factor: 1RU fixed
- Height: 1.75 in. (1 RU)
- Width: 12.2 in.
- Depth: 9 in.
- Weight: 6.33 lb (2.87 kg)
- Operating temperature: -40 to 70 C up to 300 m; -40 to 65 C up to 1800 m; -40 to 55 C up to 4000 m
- Relative humidity: 5 to 95 percent, noncondensing
- Chassis MTBF at 40 C: 389,000 hours
- Rack mounts: ETSI, 19 in. and 23 in. rack mount kits
- Software: Cisco IOS XE
- Seismic: Zone 4
- NEBS: GR-63-CORE, GR-1089-CORE, SR-3580 Level 3, GR-3108
- Hazardous substances: RoHS 6
- Safety: UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 60950.1
FAQs
Q: Does the NCS 520 need a licence?
A: Software is licensed through Smart Licensing or PAK in a hybrid model. Base software is the N520-S-M Metro Access License, with N520-1G-8 and N520-10G-2 upgrade licences to activate additional port capacity.
Q: What power does this model use?
A: It has dual DC power supplies accepting -19.2 to -72 V DC, with a nominal range of -24 to -60 V DC. Maximum input power is 70 W.
Q: Which optics does it work with?
A: Datasheet-listed optics include GLC-SX-MM(D), GLC-LH-SMD, GLC-LX-SMD, GLC-ZX-SMD, GLC-T, rugged SFPs such as GLC-SX-MM-RGD, and 10G SFP+ modules including SFP-10G-SR, SFP-10G-LR, SFP-10G-ER and SFP-10G-ZR. Passive SFP-H10GB-CU1M, 3M and 5M cables are also listed.
Q: What mounting options are available?
A: For the 8-port DC model, the options are N520-RCKMT-19-D2D, N520-RCKMT-23-D2D, N520-RMT-ETSI-D2D and N520-WALLMT.
Q: What temperature range does it support?
A: The industrial variant operates from -40 to 70 C at altitudes up to 300 m, and from -40 to 55 C at altitudes up to 4000 m.
