Meraki

Meraki MA-MNT-MV-68 | MV T-Rail Ceiling Mount Adapter, 15/24mm, Third-Gen

SKU:MA-MNT-MV-68

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

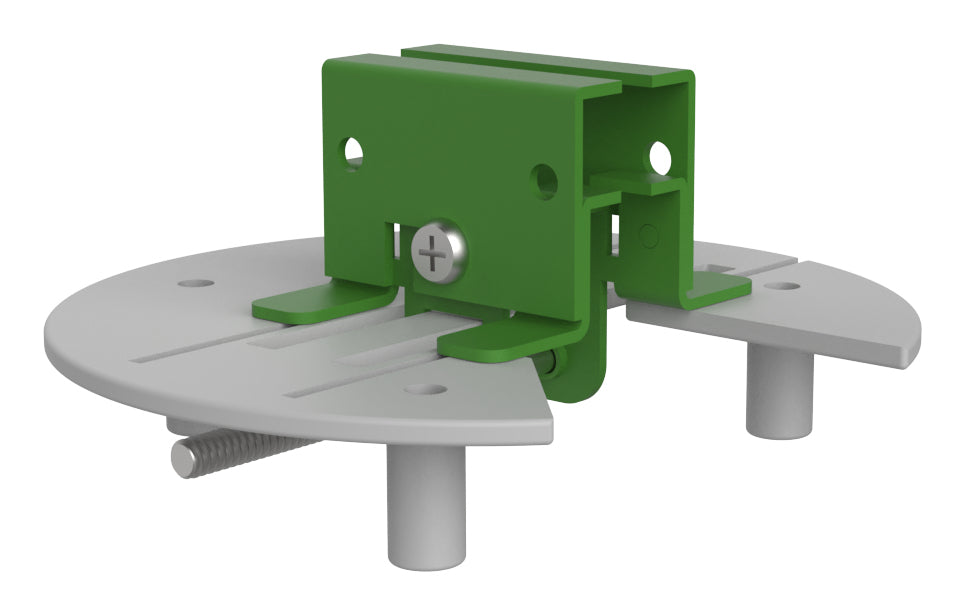

This T-rail ceiling mount adapter is a passive accessory for third-generation Meraki MV smart cameras. It clamps a camera to suspended T-grid ceilings, giving a discreet ceiling installation in offices and other drop-ceiling spaces.

The adapter supports both recessed T-rail and flush T-rail ceiling types, and is sized for 15/24mm T-rail grids. It measures 34.242 x 72.142 x 74 mm and weighs about 40 g, so it adds very little bulk above the ceiling line. It is a purely mechanical part with no power draw and needs no licence of its own. The cameras it carries need their own Meraki MV licence.

It is part of the Gen3 MV mounting system, alongside the wall arm, L-bracket, J-box, corner mount and telescoping pendant mount. It is listed for the MV63 and MV93, and the Gen3 mounting guide also covers the MV13, MV33, MV23 and MV73 series. It is not for Gen2 MV12, MV22 or MV32 cameras, which use the MA-MNT-CLG-1 T-Rail Mount Kit.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Supports both recessed T-rail and flush T-rail ceiling types
- Clamp-style adapter for suspended T-grid ceilings
- Compact and lightweight at about 40 g
- Passive mechanical design with no power draw
- Dimensional diagram published by Meraki for planning installs
- Part of the Gen3 MV mounting system alongside the wall arm, L-bracket, J-box, corner mount and telescoping pendant mount

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product type: Ceiling T-rail mount adapter
- Application: Mounting third-generation MV smart cameras to recessed and flush T-rail ceilings
- T-rail size: 15/24mm
- Dimensions (H x W x D): 34.242 x 72.142 x 74 mm
- Weight: 40.39 g
- Compatible with: MV63, MV93
- Gen3 MV mounting guide also lists: MV13, MV33, MV23, MV73 series
- Power: None, passive mount
- Licensing: None required for the adapter

FAQs

Q: Which Meraki cameras does this adapter fit?
A: It is listed for the third-generation MV63 and MV93. The Gen3 MV mounting guide also lists the MV13, MV33, MV23 and MV73 series.

Q: Can I use it with Gen2 cameras such as the MV12, MV22 or MV32?
A: No. Gen2 MV cameras use the MA-MNT-CLG-1 T-Rail Mount Kit instead.

Q: Does it need a licence or power?
A: No. It is a passive mechanical accessory with no power draw and no licence. The camera it mounts needs its own Meraki MV licence.

Q: What ceiling types does it suit?
A: It mounts to recessed T-rail and flush T-rail ceiling grids, in the 15/24mm size, which covers most suspended drop-ceiling installations.

Q: How big and heavy is it?
A: It measures 34.242 x 72.142 x 74 mm and weighs 40.39 g, so it adds very little bulk above the ceiling line.
