Meraki MA-MNT-MV-11 | MV Conduit Back Box for MA-MNT-MV-10 Wall Arm
SKU:MA-MNT-MV-11
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

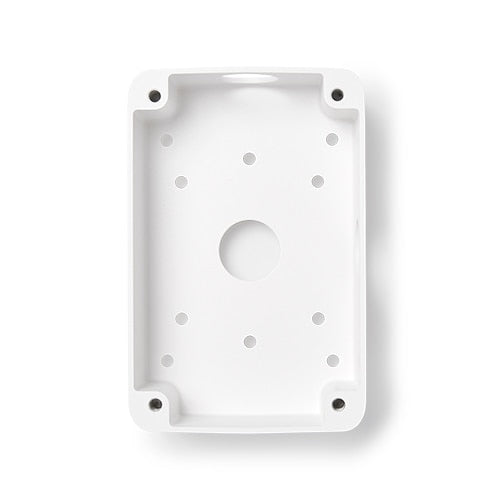

This conduit back box is a passive mounting accessory in the Meraki MV security camera range. It attaches to the MA-MNT-MV-10 wall-mount arm and lets the Ethernet cable be routed securely to Meraki MV72 and MV72X outdoor cameras, which simplifies installation on exposed wall locations.
The enclosure measures 163.5 mm x 107.6 mm x 34.0 mm and weighs 0.329 kg. It offers 3/4 inch conduit entry at the side, top, bottom and rear, so the cable run can follow the most practical path for the site. It draws no power and carries no licence of its own. The connected MV camera needs its own Meraki MV licence.
The back box requires the MA-MNT-MV-10 wall-mount arm to be fitted. It is intended for outdoor wall-mounted MV72 and MV72X installs where the Ethernet cabling must run through conduit.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Allows Ethernet to be securely routed to the camera
- Side, top, bottom or rear 3/4 inch conduit entry for flexible cable routing
- Simplifies installation of MV72-series outdoor cameras
- Designed to attach to the MA-MNT-MV-10 Wall-Mount Arm
- Passive accessory with no power draw
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: MA-MNT-MV-11
- Type: Conduit back box
- Conduit entry: Side, top, bottom and rear 3/4 inch
- Dimensions (L x W x D): 163.5 x 107.6 x 34.0 mm
- Weight: 0.329 kg
- Requires: MA-MNT-MV-10 Wall-Mount Arm
- Intended cameras: MV72 and MV72X outdoor cameras
- Power: Not applicable, passive accessory
FAQs
Q: Does this back box need the MA-MNT-MV-10 wall arm?
A: Yes. The conduit back box is designed to attach to the MA-MNT-MV-10 wall-mount arm and is not a standalone mount.
Q: Which cameras is it intended for?
A: It is intended for the Meraki MV72 and MV72X outdoor cameras, mounted on the MA-MNT-MV-10 wall-mount arm.
Q: Does it need a licence?
A: No. It is a passive mounting accessory. The connected Meraki MV camera needs its own MV licence.
Q: What conduit sizes and entry points does it support?
A: It accepts 3/4 inch conduit at the side, top, bottom and rear, so the cable can be routed in the direction that suits the installation.
