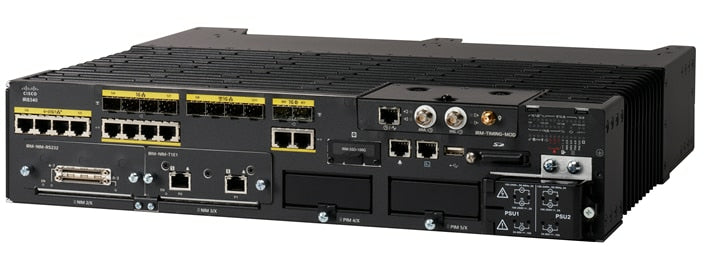

Cisco IR8340-K9 | Catalyst IR8340 Rugged Industrial Router, No Cellular
SKU:IR8340-K9
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Catalyst IR8340 is a modular, fanless rugged router from the Catalyst IR8300 Rugged Series, running Cisco IOS XE. It is built for harsh environments such as utility substations, SCADA backhaul, railway and trackside operations, pipelines, and oil and gas sites, with support for Catalyst SD-WAN, integrated security and edge compute.
This IR8340-K9 is the base chassis with no cellular modem installed. It provides 14 Gigabit Ethernet ports: 2 combo RJ-45/SFP WAN ports and 12 LAN ports (4 RJ-45, 4 combo RJ-45/SFP and 4 SFP). It delivers up to 120W of PoE/PoE+/UPOE across four RJ-45 ports, has four module slots (2 NIM and 2 PIM), and handles IPsec VPN throughput of 2 Gbps. The 2RU chassis is cooled by convection and conduction, operates from -40 to +60 C, and meets IEC 61850-3 and IEEE 1613 substation requirements.
The chassis has a 67.5 W base power draw and needs a power supply: PWR-RGD-AC-DC, PWR-RGD-LOW-DC or PWR-RGD-AC-DC-250. Optional modules include IRM-NIM-2T1E1, IRM-NIM-RS232, IRM-TIMING-MOD and IRM-SSD-100G, plus 5G and LTE PIMs such as P-5GS6-R16SA-GL and P-LTEA7-NA.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Multicore processors with configurable core profiles for service, data and control plane
- IPsec VPN with FlexVPN, DMVPN, IKEv1 and IKEv2 at 2 Gbps
- Cisco Catalyst SD-WAN support on Cisco IOS XE with API-driven automation
- Next-Generation Firewall capabilities and Cisco Cyber Vision support
- Cisco IOx application hosting for built-in edge compute
- Hardware-anchored Secure Boot and SUDI for Plug and Play
- Optional timing module with IRIG-B, GNSS, IEEE 1588 v2 PTP, SyncE and Stratum 3E holdover
- Storage options including SD card, mSATA 100 GB and USB 2.0
- Optional 5G and LTE modules for dual-cellular redundancy
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 14 x 1GbE (2 x combo RJ-45/SFP WAN, 12 x LAN)
- LAN ports: 4 x RJ-45, 4 x combo RJ-45/SFP, 4 x SFP
- PoE/PoE+/UPOE budget: 120W max (Ports 1-2 up to UPOE 60W each, Ports 3-4 up to PoE+ 30W each)
- Module slots: 4 (2 x NIM, 2 x PIM)
- IPsec VPN throughput: 2 Gbps
- Hardware cryptography acceleration (IPsec and SSL): Yes
- USB: 1 x USB 3.0
- Console port: 1 x RJ-45
- Alarm port: 1 x RJ-45 with 2 x Alarm IN and 1 x Alarm OUT
- Base power: 67.5W
- Power supply options: 150W low-voltage DC (24 to 60 VDC), 150W AC/high-voltage DC (100 to 240 VAC / 100 to 250 VDC), 250W AC/high-voltage DC
- AC input frequency: 50 to 60 Hz
- Dimensions (H x W x D): 88.9 x 438.2 x 381 mm (3.5 x 17.25 x 15 in)
- Rack height: 2RU, 19 in EIA rack mounting
- Weight with 1 power supply (no modules): 10.9 kg (24 lb)
- Cooling: Convection and conduction, fanless
- Operating temperature: -40 to +60 C
- Operating shock: 30G at 11 ms
- Relative humidity: 5% to 95% noncondensing
- Substation compliance: IEC 61850-3, IEEE 1613
- Mean time between failures: 239,274 hours
FAQs
Q: Does the IR8340-K9 include a cellular modem?
A: No. This is the base chassis with no cellular modem installed. 5G and LTE PIMs such as P-5GS6-R16SA-GL and P-LTEA7-NA can be added to the PIM slots.
Q: What power supply does it need?
A: It needs a power supply selected separately. Options are PWR-RGD-AC-DC (150W, 100 to 240 VAC / 100 to 250 VDC), PWR-RGD-LOW-DC (150W, 24 to 60 VDC) and PWR-RGD-AC-DC-250 (250W, 100 to 240 VAC / 100 to 250 VDC).
Q: How much PoE can it supply?
A: Up to 120W in total across four RJ-45 ports. Ports 1 and 2 support up to UPOE at 60W each, and ports 3 and 4 support up to PoE+ at 30W each.
Q: Which licences apply to the IR8300 Series?
A: The series has Network Essentials and Network Advantage feature packages. Network Advantage is required for MPLS, multicast, PBR, PTP, GNSS, IRIG-B, SyncE and multiple VRF. Encrypted throughput is set by Tier 0, 1 or 2 licences, and Cisco DNA Essentials or Advantage is needed for Catalyst Center and Catalyst SD-WAN.
Q: Which modules does it work with?
A: Compatible modules include IRM-NIM-2T1E1 (2-port T1/E1), IRM-NIM-RS232 (8-port serial), IRM-TIMING-MOD (timing and GNSS) and IRM-SSD-100G (mSATA 100 GB). Blanks are IRM-NIM-BLNK, IRM-P-Blank and IRM-SSD-Blank.
