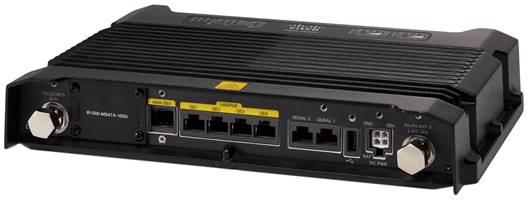

Cisco IR829M-LTE-LA-K9 | IR829M Industrial Router, Single 4G LTE, LATAM/APJC
SKU:IR829M-LTE-LA-K9
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Cisco IR829M-LTE-LA-K9 is a compact, ruggedised industrial integrated services router from the Cisco 829 Industrial ISR range. It carries a single multimode 4G LTE modem tuned to LATAM and APJC carrier bands, which suits fleet management, mass transit, remote asset monitoring and other IoT or industrial sites where equipment faces heat, vibration and humidity.
The LTE modem is Category 4, with theoretical speeds of 150 Mbps down and 50 Mbps up across FDD bands 1, 3, 5, 7, 8, 18, 19, 21 and 28 and TDD bands 38, 39, 40 and 41. Local connectivity comes from four 10/100/1000 Gigabit Ethernet LAN ports with optional 30W PoE/PoE+ shared across the ports, an SFP WAN port for copper or fibre at 100 Mbps or 1 Gbps, and dual-radio 802.11n Wi-Fi on 2.4 GHz and 5 GHz. Serial connectivity is one RS-232 (DTE) port and one RS-232/RS-485 (DCE) port. The IR829M model has 2 GB DRAM, 8 GB eMMC flash and an mSATA slot for optional 50 GB or 100 GB SSD storage. Power input is 9-32 VDC.
This SKU runs the Universal Cisco IOS image and includes the IP Base, Data, Security and No Payload Encryption licences by default. Cisco IOx supports hosting applications at the network edge. The unit is rated for -40 to 60 C in a sealed NEMA cabinet, rising to 75 C with forced air.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Ruggedised design for shock, vibration, humidity and a wide temperature range
- Multimode 4G LTE / 3G cellular WAN with dual SIM and SIM-based auto-carrier selection
- Dual-band 802.11a/b/g/n Wi-Fi radios
- PoE/PoE+ capable Gigabit LAN ports with SFP and serial interfaces
- Cisco IOx for hosting applications at the network edge
- QoS, DMVPN, FlexVPN and multi-VRF for WAN
- Mobile IP support for networks in motion such as buses and trains
- Built-in GPS, accelerometer and gyroscope
- Remote management and upgrade of LTE firmware and router configuration
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Cellular: single 4G LTE Cat 4 modem, up to 150 Mbps down / 50 Mbps up
- LTE FDD bands: 1, 3, 5, 7, 8, 18, 19, 21, 28
- LTE TDD bands: 38, 39, 40, 41
- Backward compatibility: UMTS/HSPA+ bands 1, 5, 6, 8, 9, 19 and TD-SCDMA band 39
- Wi-Fi: dual-radio 802.11n, 2.4 GHz and 5 GHz, 2x2 MIMO, up to 300 Mbps per radio
- LAN: 4 x 10/100/1000 Gigabit Ethernet with optional 30W PoE/PoE+ shared across ports
- WAN: SFP port for copper and fibre, 100 Mbps or 1 Gbps
- Serial: 1 x RS-232 (DTE) and 1 x RS-232/RS-485 (DCE)
- Console: Mini type-B
- DRAM: 2 GB
- Flash: 8 GB eMMC (4 GB usable)
- SSD option: mSATA 50 GB (IR-SSD-MSATA-50G) or 100 GB (IR-SSD-MSATA-100G)
- Power input: 9-32 VDC, nominal 12 V / 24 V
- Maximum power consumption: 40W without PoE, 70W with PoE
- Operating temperature: -40 to 60 C in sealed NEMA cabinet, up to 75 C with forced air
- IP rating: IP40
- Mounting: panel/door mount
- Dimensions (H x W x D): 43.9 x 279 x 196 mm
- Weight: 2 kg
- MTBF (ground benign): 322,390 hours
- Hazardous locations: UL 121201, CSA 213, ATEX, IECEx, Class 1 Division 2
FAQs
Q: What licences are included with the IR829M-LTE-LA-K9?
A: It runs the Universal Cisco IOS image with the IP Base, Data, Security and No Payload Encryption licences included by default.
Q: How is the IR829M powered?
A: It takes a 9-32 VDC input, nominally 12 V or 24 V. Maximum consumption is 40W without PoE and 70W with PoE. The optional 30W PoE/PoE+ is shared across the four Gigabit ports and needs a -54 V PoE supply.
Q: Which LTE bands does this model support?
A: The LATAM/APJC variant supports FDD bands 1, 3, 5, 7, 8, 18, 19, 21 and 28 and TDD bands 38, 39, 40 and 41, with UMTS/HSPA+ fallback.
Q: What storage options does it support?
A: It has 8 GB eMMC flash and an mSATA slot for optional Cisco IR-SSD-MSATA-50G or IR-SSD-MSATA-100G SSD modules.
Q: Which software does it require?
A: It needs Cisco IOS 15.6(3)M2 or later with modem firmware 5.5.58 or later.
